Sony CDP-XA30ES - Chassis and Mechanism Deck Sections Exploded Views

– 63 –

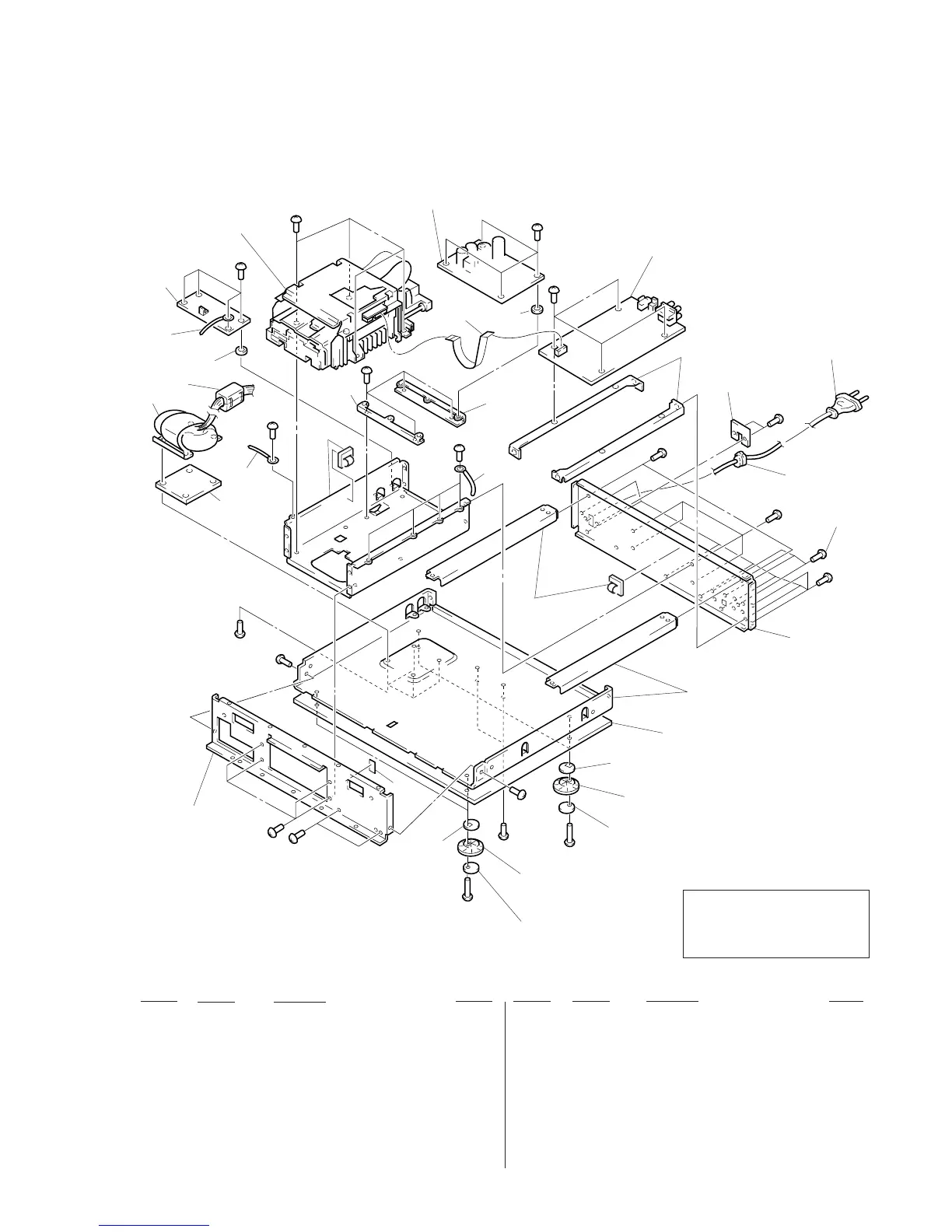

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 110 3-703-244-00 BUSHING (2104), CORD
111 3-704-515-21 SCREW (BV/RING)
* 112 4-986-682-11 PANEL, BACK (AEP)
* 112 4-986-682-22 PANEL, BACK (Singapore)
113 3-831-441-XX CUSHION, SPEAKER
114 1-543-653-11 CORE ASSY, BEAD (DIVISION TYPE)
! CNP1 1-558-568-21 CORD, POWER
! T1 1-431-214-11 TRANSFORMER, POWER (Singapore)
! T1 1-431-215-11 TRANSFORMER, POWER (AEP)
101 4-970-124-01 CUSHION (F50180S)
102 4-970-123-01 FOOT (F50180S)
103 4-984-485-01 CUSHION (FOOT)
* 104 1-663-576-13 VOL SEL BOARD
105 1-777-873-11 WIRE (FLAT TYPE) (16 CORE)
* 106 A-4699-712-A POWER BOARD, COMPLETE
107 4-985-057-01 WASHER
* 108 A-4699-567-A MAIN BOARD, COMPLETE
* 109 4-923-873-01 BRACKET, CORD STOPPER
mechanism deck
(CDM36A-14A)
104
not
supplied
#1
#1
107
114
T1
not
supplied
not
supplied
#1
not
supplied
not
supplied
#1
106
#1
#1
107
105
108
not supplied
109
#1
CNP1
#1
#1
#1
111
110
not supplied
103
102
101
#4
#1
#6
102
101
#1
#1
not supplied
not supplied
not supplied
not supplied
113
#1
#1
112
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
103
#1
not supplied
