Sony CDP-XA30ES - Power Board and Main Board Sections

– 18 –

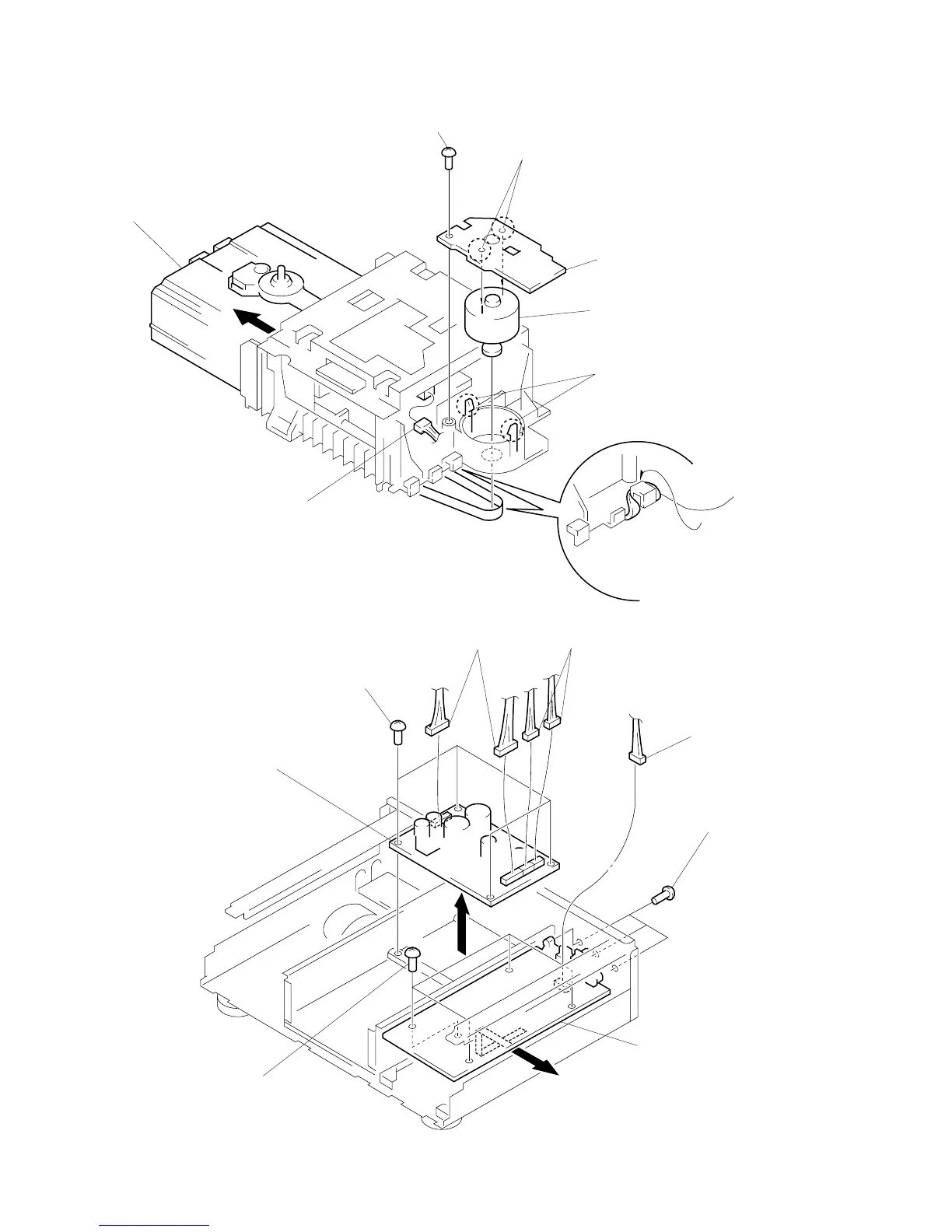

LOADING MOTOR
1 Pull the tray.
4 screw
(BVTP 3
× 8)
7 Removal the two
solders of loading motor.
6 LOADING MOTOR board
8 loading motor
5 two claws
3 Hang the belt
2 connector
(CN103)
POWER BOARD, MAIN BOARD
3 four screws
(BVTT3
× 6)
1 two connectors
(CN207, 309)
2 two connectors
(CN203, 204)
5 connector
(CN302)
6 three screws
(BV/RING)
8 Removal the MAIN board
to direction of the arrow
A .
A
7 four screws
(BVTT3
× 6)
4 POWER board
