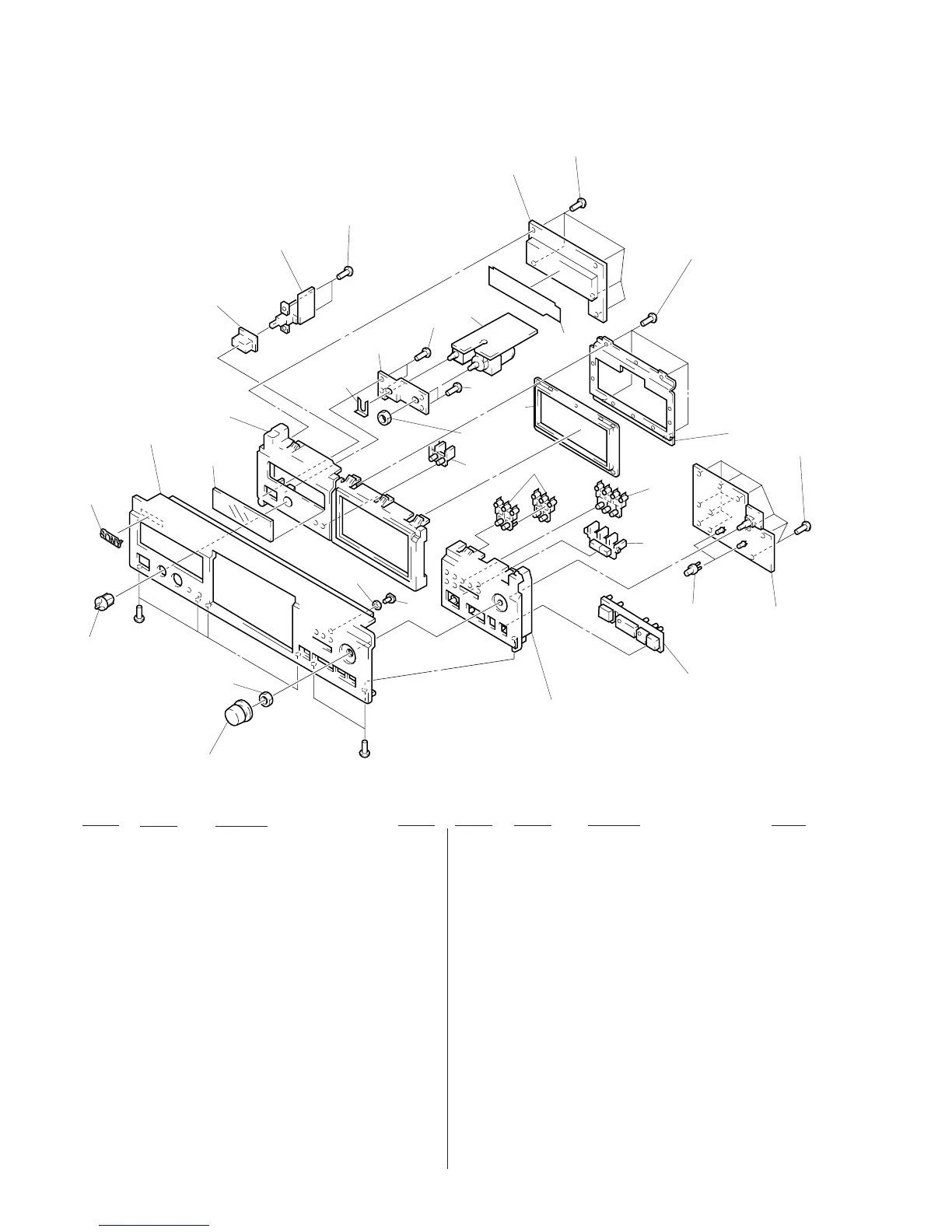

Sony CDP-XA30ES - Front Panel Section Exploded View

– 62 –
(2) FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-987-121-01 KNOB (AMS) (GOLD)
51 4-987-121-11 KNOB (AMS) (BLACK)
52 4-950-189-01 KNOB (A) (VOL) (BLACK)
52 4-950-189-41 KNOB (A) (VOL) (GOLD)
53 4-942-568-01 EMBLEM (NO.5), SONY (BLACK)
53 4-942-568-31 EMBLEM (NO.5), SONY (GOLD)
54 4-986-664-01 PANEL, FRONT (GOLD)
54 4-986-664-11 PANEL, FRONT (BLACK)
55 4-986-670-01 PLATE, INDICATION
56 4-986-666-01 BASE (L), PANEL (GOLD)
56 4-986-666-11 BASE (L), PANEL (BLACK)
57 4-923-520-51 KNOB, POWER (POWER) (BLACK)
57 4-923-520-61 KNOB, POWER (POWER) (GOLD)
* 58 1-663-575-12 POWER SW BOARD
59 4-951-620-01 SCREW (2.6X8), +BVTP
* 60 A-4699-566-A HP BOARD, COMPLETE (BLACK)
* 60 A-4699-710-A HP BOARD, COMPLETE (GOLD)
61 4-986-669-01 FILTER
* 62 A-4699-353-A DISPLAY BOARD, COMPLETE
63 4-986-668-01 BRACKET (PACKING)
64 4-986-667-01 PACKING
65 4-986-687-01 BUTTON (P.MODE) (GOLD)
65 4-986-687-11 BUTTON (P.MODE) (BLACK)
66 4-986-671-01 BUTTON (2) (GOLD)
66 4-986-671-11 BUTTON (2) (BLACK)
67 4-986-672-01 BUTTON (3) (GOLD)
67 4-986-672-11 BUTTON (3) (BLACK)
68 4-986-673-01 BUTTON (FF) (0. )) (GOLD)
68 4-986-673-11 BUTTON (FF) (0. )) (BLACK)
* 69 A-4699-354-A PANEL BOARD, COMPLETE
* 70 3-362-478-01 HOLDER (T), LED
71 X-4945-276-1 BUTTON (PLAY) ASSY
(§ OPEN/CLOSE. (. P. p) (BLACK)
71 X-4948-030-1 BUTTON (PLAY) ASSY
(§ OPEN/CLOSE. (. P. p) (GOLD)
72 4-986-665-01 BASE (R), PANEL (GOLD)
72 4-986-665-11 BASE (R), PANEL (BLACK)
73 4-971-776-01 INDICATOR
74 4-949-302-21 WASHER
supplied with RV801
51
52
#2
53
54
55
56
57
58
59
59
61
60
59
not supplied
supplied with
J401
65
64
63
59
69
70
71
72
73
74
#2
66
67
68
supplied with
VR405
59
62
59
