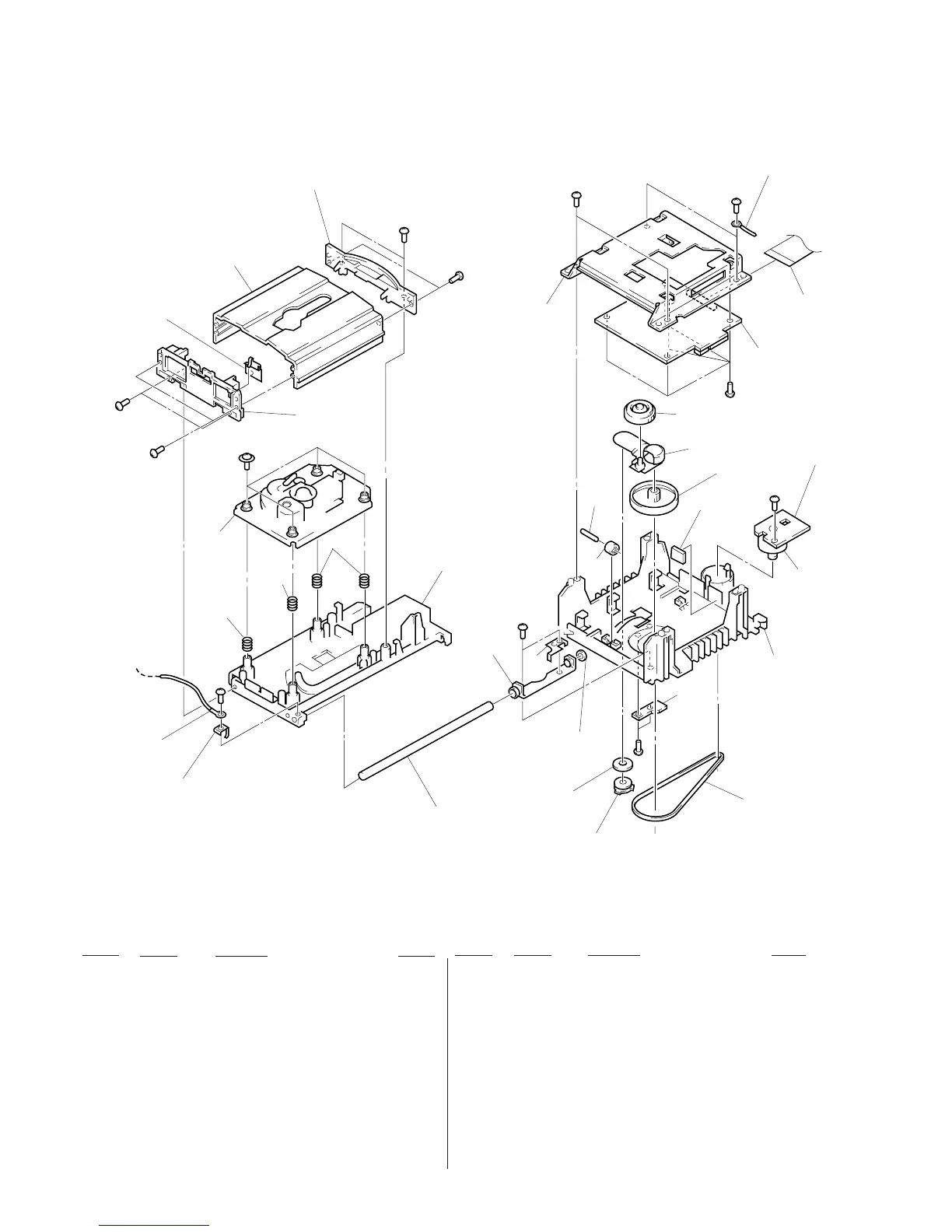

Sony CDP-XA30ES - Mechanism Deck Section Exploded View

– 64 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 163 A-4699-708-A BD BOARD, COMPLETE
164 4-977-897-01 GEAR
165 4-977-898-01 LEVER (SWING)
166 4-977-896-01 PULLEY
* 167 1-663-579-11 LOADING MOTOR BOARD
* 168 1-663-581-11 LOADING SW BOARD
169 4-968-905-01 BELT (CDM)
170 4-986-919-01 LIMITTER (LEVER)
171 4-988-103-01 SLIDER (SWING)
172 4-988-107-01 CUSHION (LD)
M2 A-4660-970-A MOTOR ASSY (LOADING)
* 151 4-977-889-01 PLATE (BU), GROUND
152 4-989-303-01 SPRING (BU-LF), COMPRESSION
153 4-988-104-01 SPRING (BU), COMPRESSION
* 154 4-986-917-01 COVER (F) (DRAWER)
155 4-986-916-01 PANEL (DRAWER)
* 156 4-986-918-01 COVER (R) (DRAWER)
* 157 4-977-888-01 SHAFT
* 158 4-977-892-01 BEARING
* 159 4-977-891-01 PLATE, GROUND
160 X-4924-457-1 ROLLER ASSY
161 4-934-376-01 SHAFT (ROLLER)
162 1-777-843-11 WIRE (FLAT TYPE) (30 CORE)
151
not supplied
#2
#2
#5
154
not supplied
155
156
#2
#2
152
153
153
not supplied
#2
157
158
159
172
171
170
169
168
not supplied
M2
not supplied
166
165
164
#3
163
162
#2
not supplied
#2
not supplied
161
(4) MECHANISM DECK SECTION-1
(CDM36A-14A)
BU-14A
#2
#2
167
160
#2
