Sony CDP-XA30ES - Case, Front Panel, and Mechanism Deck Sections

– 16 –

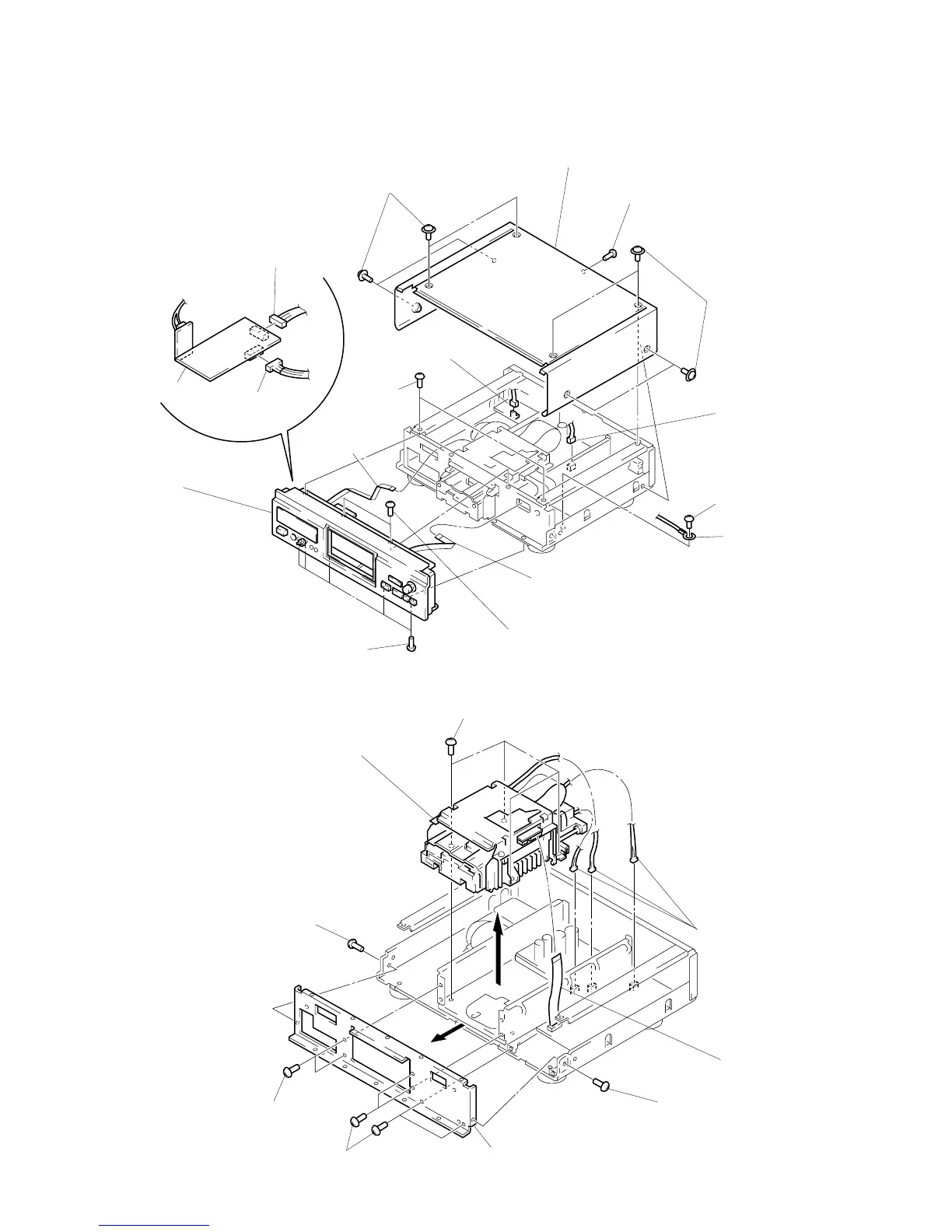

CASE, FRONT PANEL SECTION
HP board
8 connector
(CN402)
7 connector
(CN407)
!∞ front panel
!£ five screws
(BV3
× 8)
!¢ two screws
(BVTT3
× 6)
6 flat wire (9 core)
(CN107)
!™ lug
!¡ screw
(BVTT3
× 6)
4 connector
(CN206)
1 four screws
(CASE 3 TP2)
2 screw
(BVTT3
× 6)
3 case
1 four screws
(CASE 3 TP2)
9 connector
(CN992)
0 two screws
(BVTT3
× 6)
MECHANISM DECK SECTION
5 four screws
(BVTT3
× 6)
6 mechanism deck
(CDM36A-14A)
3 screw
(BVTT3
× 6)
3 two screws
(BVTT3
× 6)
3 four screws
(BVTT3
× 6)
4 sub panel
3 screw
(BVTT3
× 6)
2 flat wire (16 core)
(CN101)
1 three connectors
(CN201, 205, 251)
5 flat wire (10 core)
(CN106)
