Sony CDP-XA50ES - CASE (TOP PLATE), FRONT PANEL SECTION; AUDIO BOARD

– 16 –

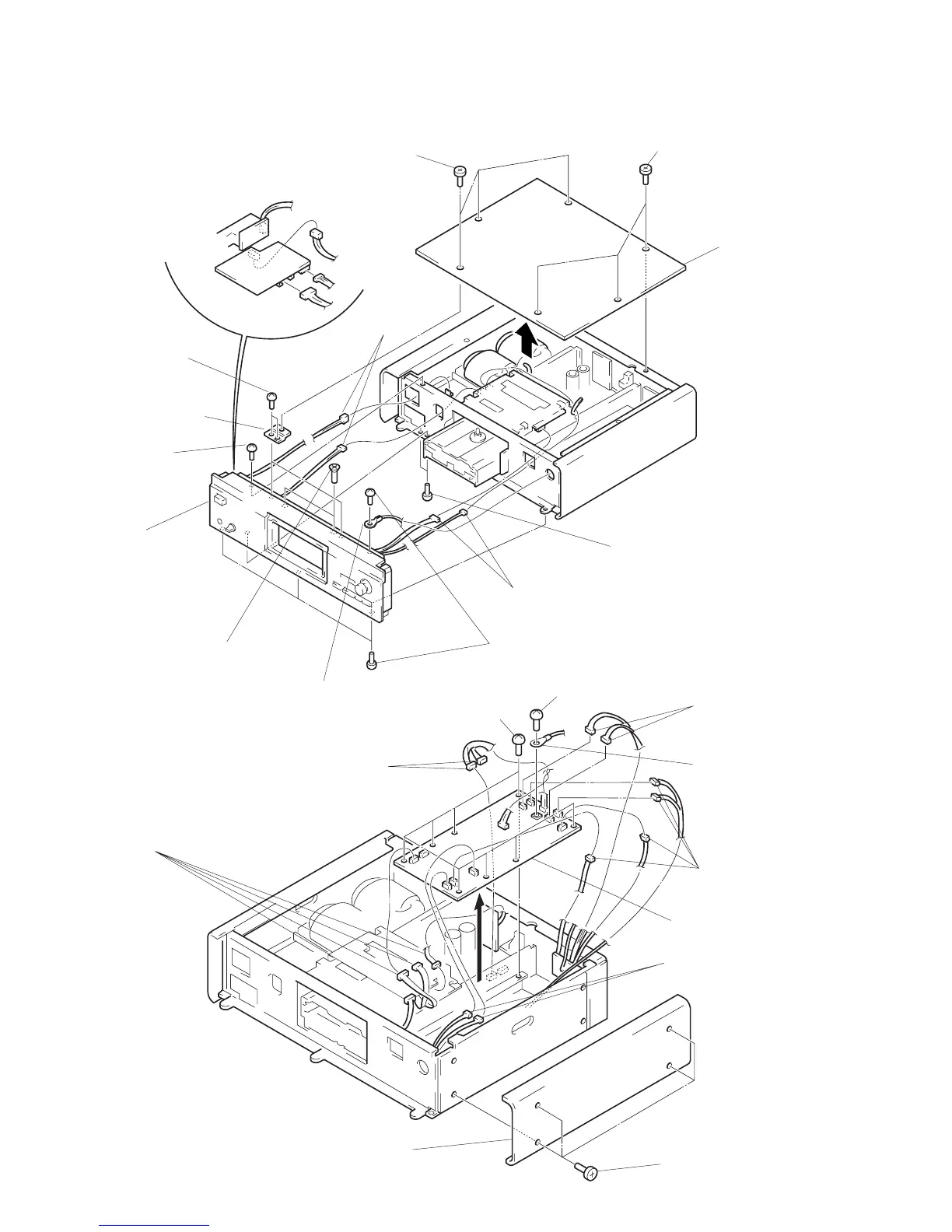

CASE (TOP PLATE), FRONT PANEL SECTION
9 three connectors
(CN351, 352, 461)
6 four screws
(3
× 8)
4 screw
(3
× 8)
0 front panel section
8 two screws
(K3
× 8)
5 lag
4 four screws
(3
× 8)
3 two connectors
(CN202, 203)
4 two screws
(3
× 8)
2 case (top plate)
1 three flat head screws
1 three flat head screws
3 four connectors
(CN103, 104, 105, 202)
3 two connectors
(CN922, 923)
AUDIO BOARD
3 two connectors
(CN401, 501)
3 four connectors
(CN402, 502, 610, 611)
7 audio board
3 two connectors
(CN608, 609)
2 side plate (R)
3 two connectors
(CN201,
993)
7 two brakets (case)
6 eight screws
(BV3
× 8 B)
5 lag
4 TR screw
1 four flat head screws
