Sony CDP-XA50ES - (6) BASE UNIT SECTION

– 65 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 A-4660-688-A STABILIZER ASSY
* 252 A-4699-545-A BSL BOARD, COMPLETE
253 X-4945-273-1 ROTOR ASSY
254 3-701-444-11 WASHER, 6
255 X-4945-203-1 BASE ASSY, SLIDE
256 A-4660-814-A PULLEY ASSY, DISK
257 4-968-871-01 WASHER (SPINDLE)
258 4-968-867-01 CAP, CENTERING
259 4-968-869-01 SPRING (CENTERING), COMPRESSION
260 4-968-870-01 RACK, SLIDE
261 4-968-880-01 SPRING (SLED), COMPRESSION
262 4-968-866-01 GEAR (D)
263 4-917-562-21 INSULATOR
264 4-968-916-01 BRACKET (OP BASE)
265 4-970-924-01 SPRING (SKEW), LEAF
! 266 8-820-014-01 OPTICAL PICK-UP KSS-273B/J1N
* 267 4-968-944-01 SHAFT, SLED
268 4-968-865-01 GEAR (C)
269 4-968-879-01 SPRING (OP), LEAF
270 3-364-731-01 WASHER, POLY-SLIDER
271 4-968-864-01 GEAR (B)
* 272 4-968-862-01 BASE, MECHANICAL
273 1-653-918-11 FLEXIBLE BOARD
274 4-971-266-01 SCREW (M2.6X4)
M21 X-4945-920-1 MOTOR ASSY (SLED)
S21 1-571-958-11 SWITCH, PUSH (1 KEY) (LIMIT OUT)
S22 1-571-958-11 SWITCH, PUSH (1 KEY) (LIMIT IN)

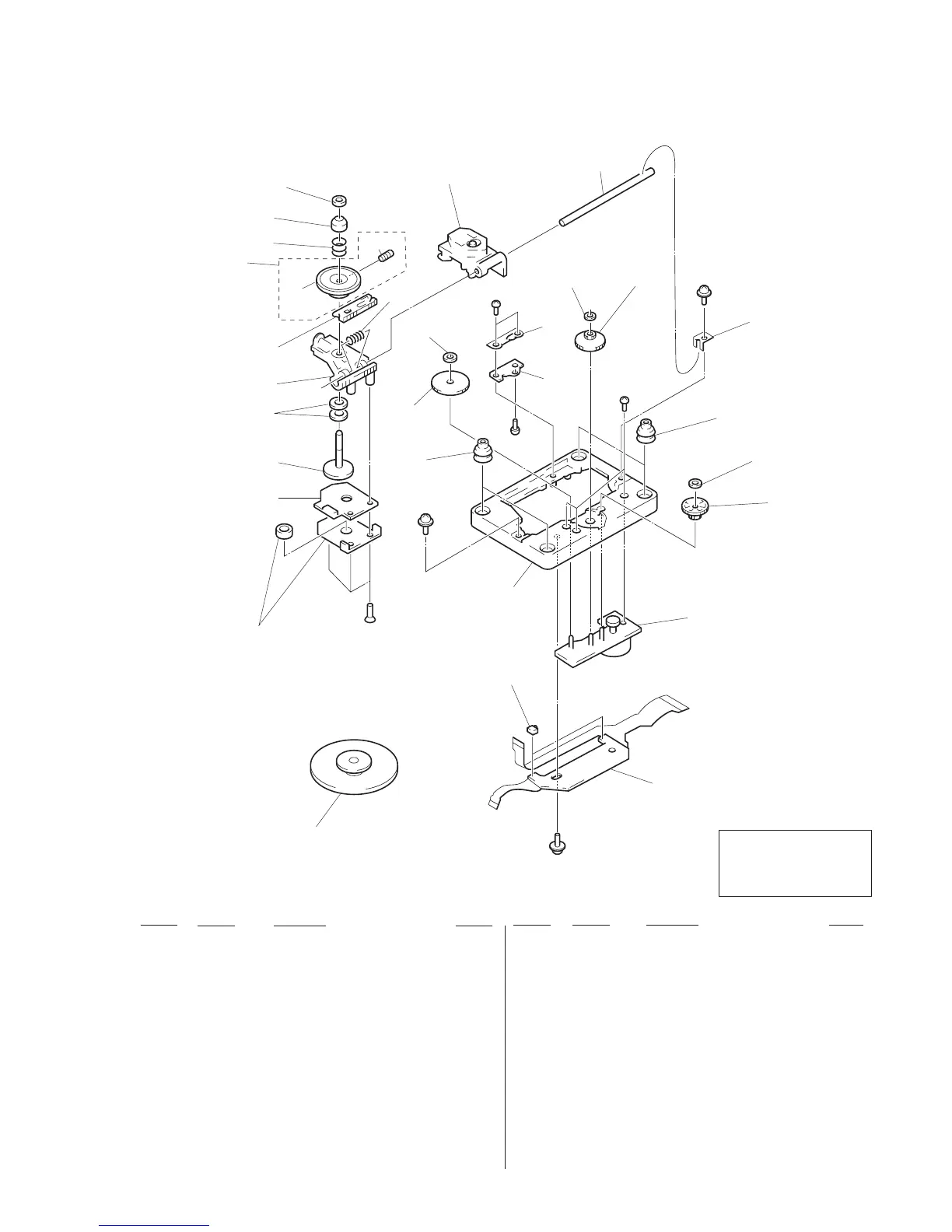

(6) BASE UNIT SECTION
(BU-12B)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
257
258
256
not
supplied
255
254
253
252
#6
263
270
#19
270
269
263
271
#20
#18
272
#6
251
266
267
274
260
262
#6
#1
not supplied
273
268
265
264
261
259
270
M21
S21, S22
