Sony CDP-XA50ES - (5) MECHANISM SECTION-2

– 64 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 4-968-905-01 BELT (CDM)
202 X-4945-209-1 PULLEY (FIRST) ASSY
* 203 4-972-921-01 COVER (SW)
* 204 1-653-905-11 LOADING SW BOARD
* 205 4-968-901-01 BEARING (MAIN)
206 X-4945-207-1 BRACKET (LAST) ASSY
207 4-968-900-01 GEAR (LAST)
* 208 4-970-999-01 ROLLER (J RACK)
209 4-973-849-01 WASHER
210 3-363-191-01 WASHER (BA)
211 4-968-899-01 GEAR (MIDLE)
212 4-968-898-01 GEAR (FIRST)
213 3-325-697-31 WASHER
* 214 4-928-026-01 COLLAR (B)
* 215 4-888-798-11 BUSHING, RUBBER
* 216 1-653-907-11 LOADING MOTOR BOARD
217 4-971-894-01 DAMPER (MOTOR)
218 X-4945-205-1 SHAFT ASSY
* 219 4-968-902-01 BEARING (SUB)
M271 X-4945-565-1 MOTOR ASSY (LOADING)

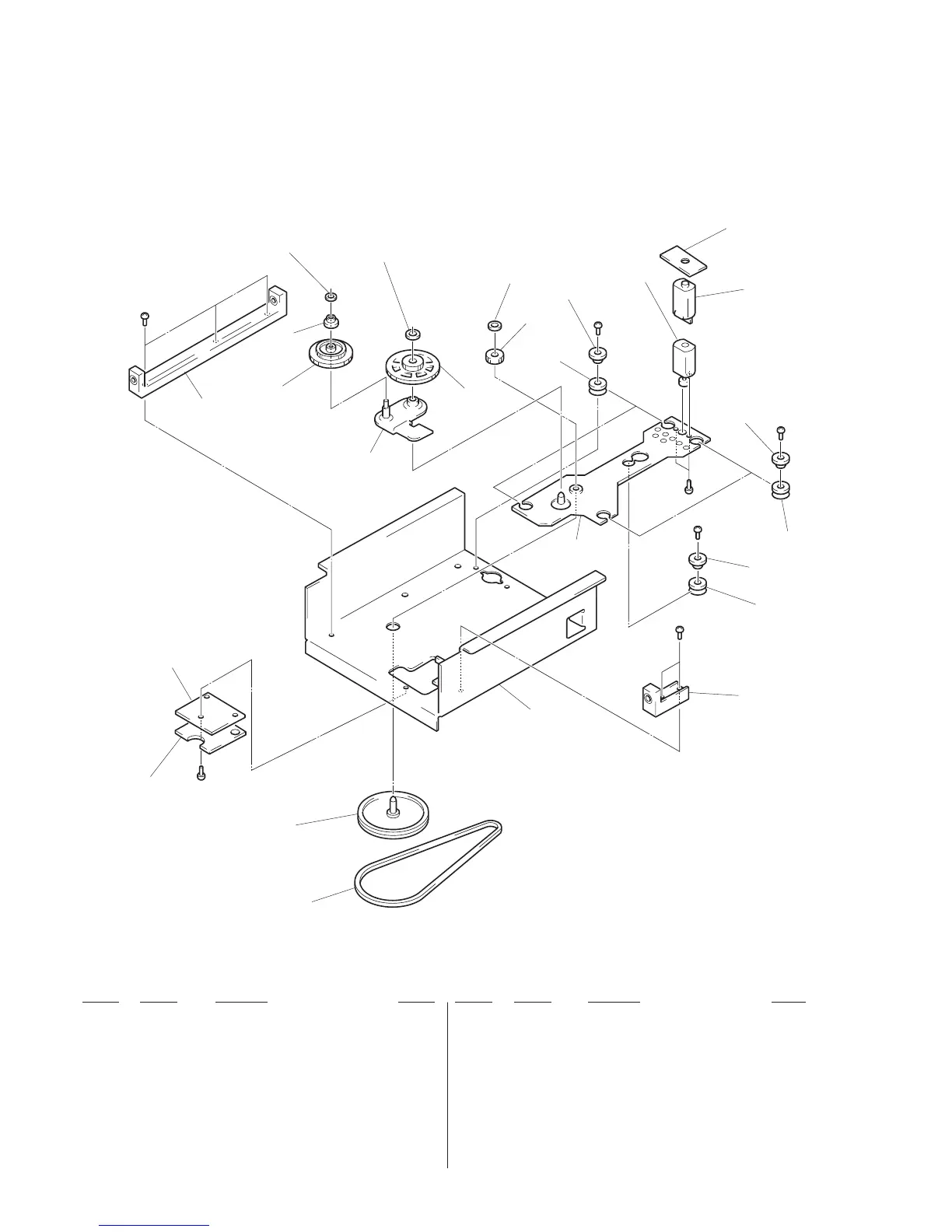

(5) MECHANISM SECTION-2
(CDM32BB-12B) (BLACK)
(CDM32BN-12B) (GOLD)
#10
205
208
207
206
209
210
211
213
212
214
215
216
217
M271
#10
#10
214
215
#10
#17
214
215
219
#10
218
not supplied
202
201
202
203
#12
