Sony CDP-XA50ES - MECHANISM DECK (CDM32 BB-12 B;CDM32 BN-12 B); SERVO BOARD

– 17 –

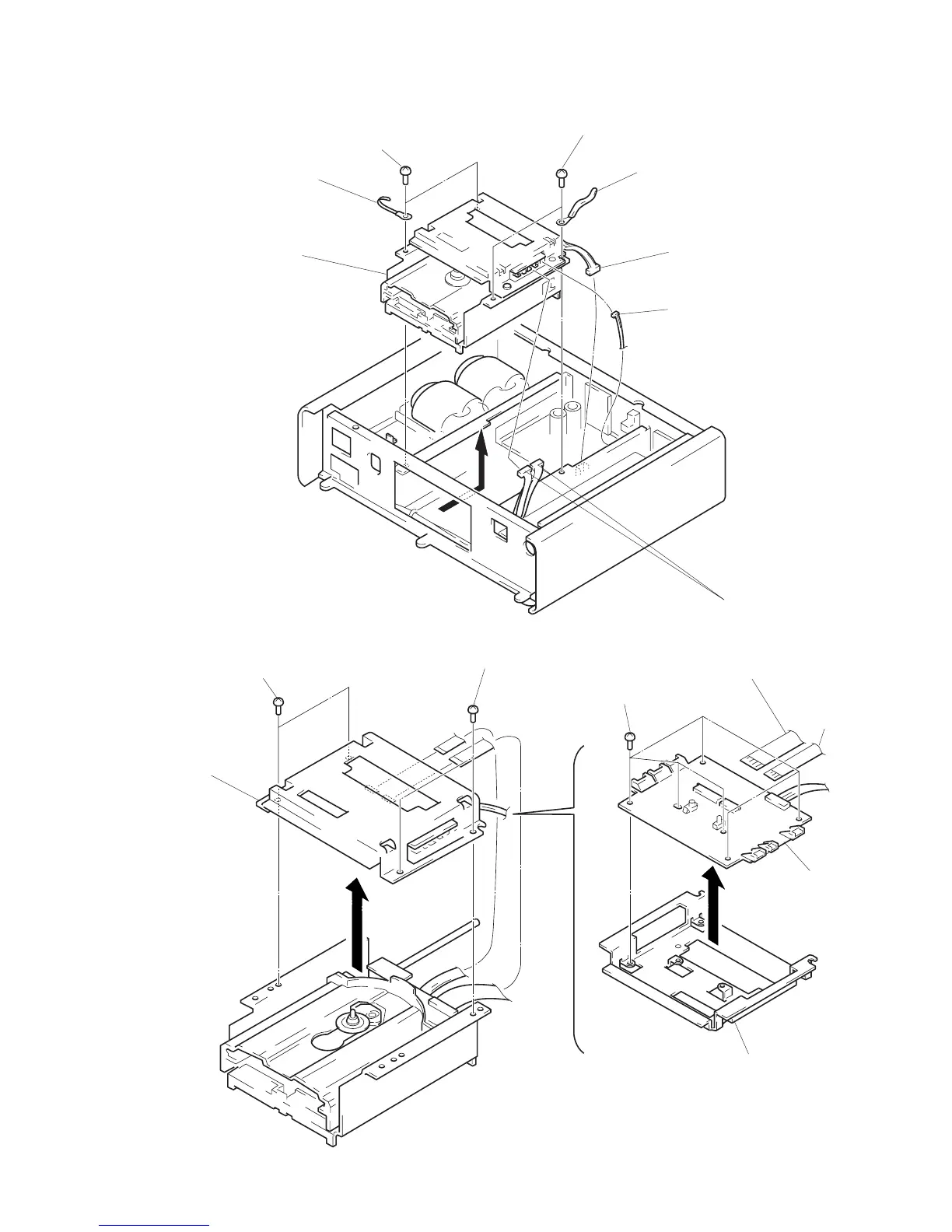

MECHANISM DECK (CDM32BB-12B/CDM32BN-12B)
2 two screws
2 two screws
3 clamp
1 connector
(CN952)
1 two connectors
(CN103, 104)
1 two screws
(BVTP3
× 6)
SERVO BOARD
1 two screws
(BVTP3
× 6)
2 bracket (servo)
5 six screws
(BVTP3
× 6)
6 servo board
bracket (servo)
1 connector
(CN105)
4 wire (flat type)
(12 core)
(CN101)
3 wire (flat type) (26 core)
(CN102)
4 mechanism deck
(CDM32BB-12B)
(CDM32BN-12B)
3 clamp
