Sony CDP-XA50ES - SLED MOTOR (M21), OPTICAL PICK-UP (KSS-273 B;J1 N)

– 19 –

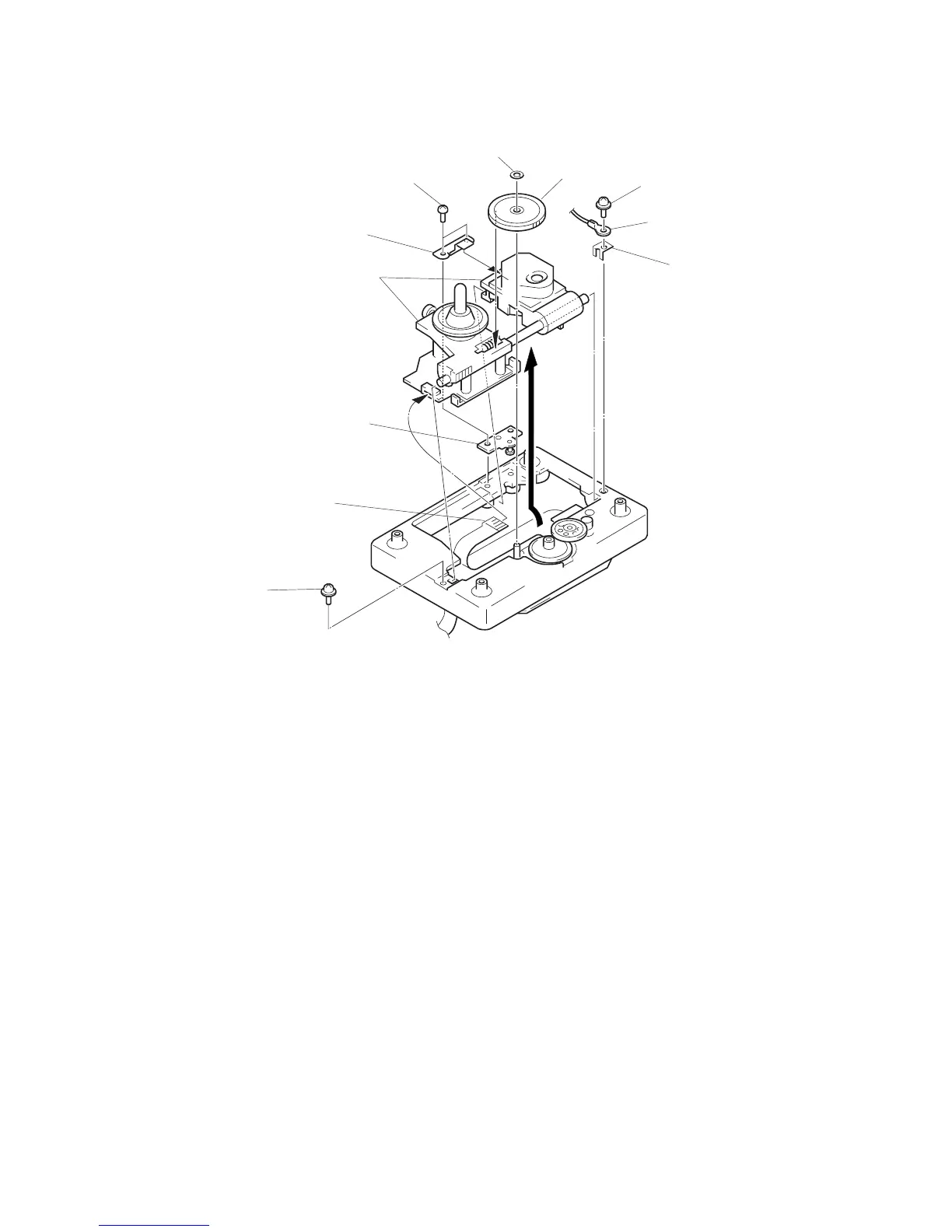

SLED MOTOR (M21), OPTICAL PICK-UP (KSS-273B/J1N)
7 poly-slider washer
8 gear (D)
4 tapping screw
5 lag
6 leaf spring (OP)
A
2 two screws
(BTP2.6
× 8)
3 leaf spring (skew)
9 Remove the sled motor (M21)
and optical pick-up
(KSS-273B/J1N) to direction
of the arrow
A .
1 flexible board
(CN11)
4 tapping screw
0 bracket (OP base)
