Sony CDP-XA50ES - (3) CHASSIS SECTION

– 62 –

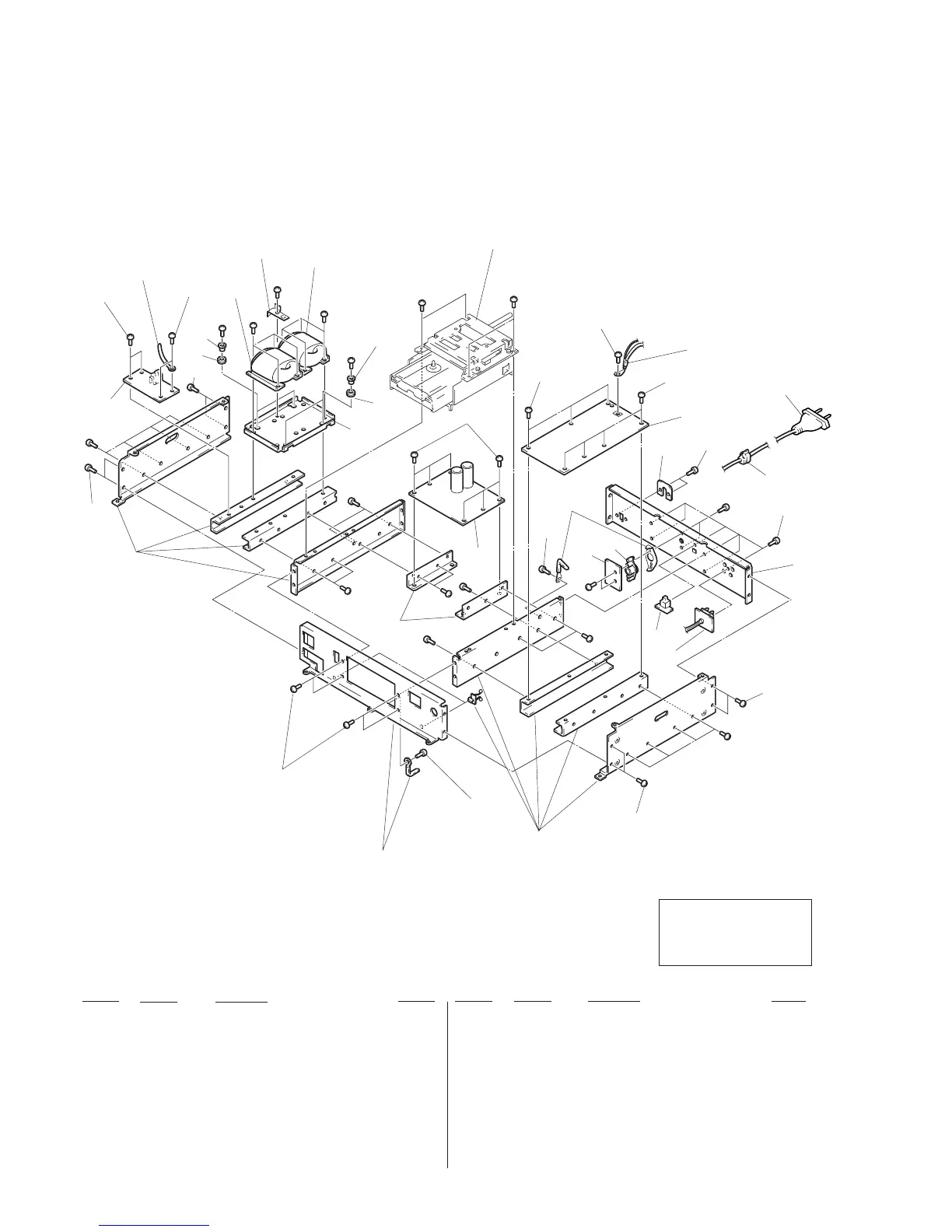

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-929-074-01 SCREW (3X8)
* 102 1-663-628-11 FUSE BOARD
* 103 4-888-798-00 BUSHING, RUBBER
104 4-928-032-01 COLLAR (A)
105 2-259-121-01 SCREW, TR
* 106 A-4699-569-A AUDIO BOARD, COMPLETE
* 107 4-923-873-01 BRACKET, CORD STOPPER
108 4-974-510-01 SCREW (+BV 3X8 B)
* 109 3-703-244-00 BUSHING (2104), CORD
! 110 1-558-568-21 CORD, POWER
* 111 4-986-742-11 PANEL, BACK (AEP)
* 111 4-986-742-22 PANEL, BACK (Singapore)
* 112 1-663-629-11 LINE BOARD
* 113 1-663-630-11 OPT BOARD
* 114 1-663-631-11 COAX BOARD
* 115 4-913-152-01 ESCUTCHEON, D/O
* 116 A-4699-570-A POWER BOARD, COMPLETE
! T901 1-427-816-11 TRANSFORMER, POWER (for AUDIO)
! T902 1-427-817-11 TRANSFORMER, POWER (for DIGITAL)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
not supplied
108
108
102
#9
104
103
101
T902
#5
#7
T901
#5
#9
104
#20
#20
CDM32BB-12B
CDM32BN-12B
108
105
not supplied
108
106
108
107
109
108
111
101
101
not supplied
108
not supplied
101
not supplied
101
#4
108
116
#4
#4
#4
#4
113
112
110
#4
#6
101
#4
#6
not
supplied
103
not supplied
#4
not
supplied
115
114
not supplied
