Sony CDP-XA50ES - (4) MECHANISM SECTION-1

– 63 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 151 A-4699-587-A SERVO BOARD, COMPLETE
* 152 1-653-906-11 FL RELAY BOARD
153 1-769-109-11 WIRE (FLAT TYPE) (12 CORE)
* 154 4-968-903-01 SHAFT (MAIN)
155 4-927-634-01 HOLDER (SP)
156 4-968-907-11 PANEL (DRAWER)
157 4-971-000-21 COVER (CD) (BLACK)
157 4-971-000-31 COVER (CD) (GOLD)
158 1-769-110-11 WIRE (FLAT TYPE) (26 CORE)
* 159 1-654-005-11 FLEX RELAY BOARD
160 4-948-375-01 SPRING (F), COIL
* 161 4-968-906-01 HOLDER, BU
* 162 4-968-904-01 SHAFT (SUB)
163 4-925-315-31 DAMPER

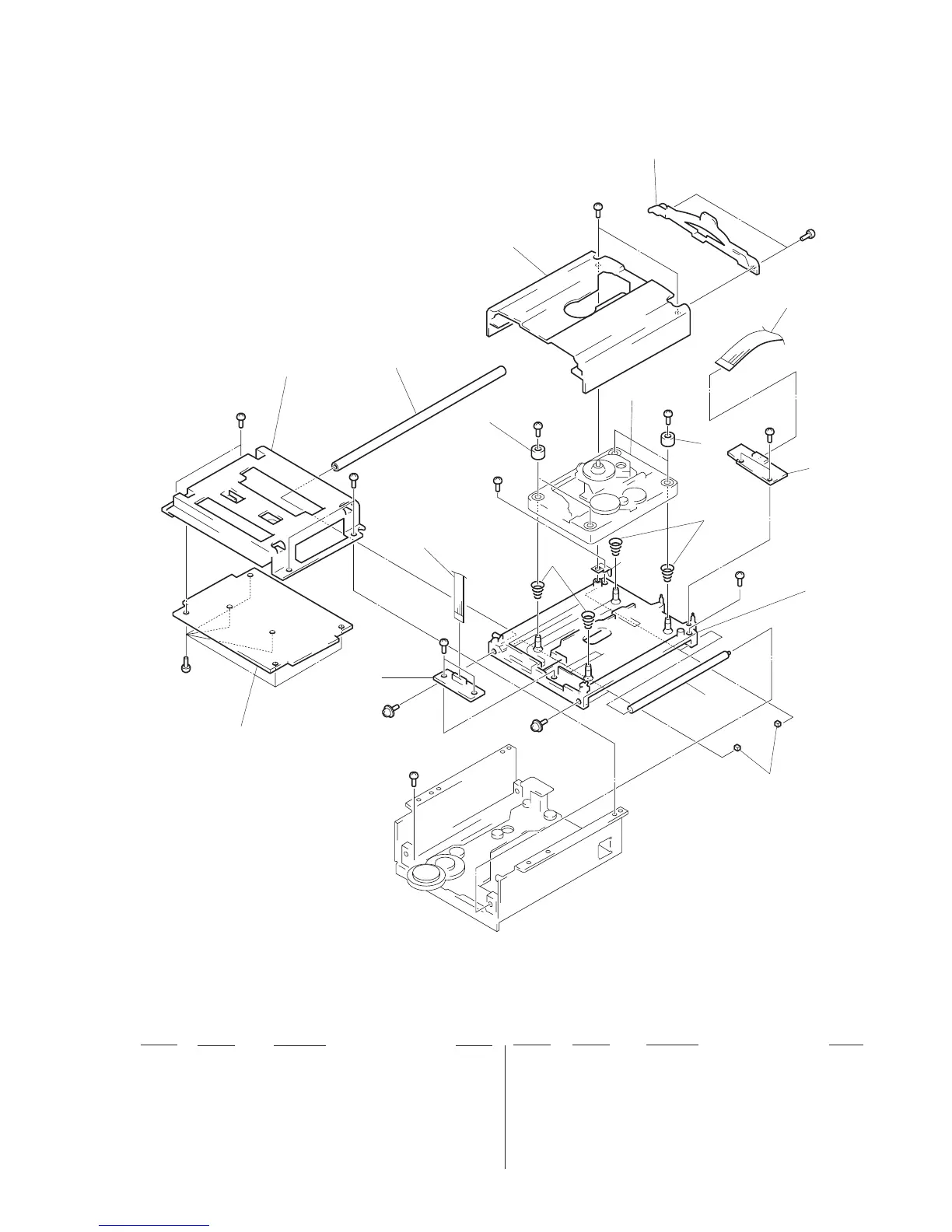

(4) MECHANISM SECTION-1
(CDM32BB-12B) (BLACK)
(CDM32BN-12B) (GOLD)
154
not supplied
#12
#12
151
152
#11
#6
153
155
#14
#16
BU-12B
#16
158
#10
157
#6
156
159
#6
155
160
#10
160
161
163
162
#15
#13
not
supplied
#12
