Sony CDP-XA50ES - SECTION 7 EXPLODED VIEWS; (1) CASE, LOADING PANEL SECTION

– 60 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)
↑
Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-970-998-01 BOLT (LID), HEXAGON HOLE (BLACK)
1 4-970-998-11 BOLT (LID), HEXAGON HOLE (GOLD)
2 4-969-832-01 PLATE, INDICATION
3 4-969-830-21 PANEL, LOADING (BLACK)
3 4-969-830-31 PANEL, LOADING (GOLD)
4 4-969-831-21 BASE, LOADING PANEL (BLACK)
4 4-969-831-31 BASE, LOADING PANEL (GOLD)
* 5 1-654-256-11 DISPLAY BOARD
6 4-951-620-41 SCREW (2.6), +BVTP (BLACK)
6 4-951-620-51 SCREW (2.6), +BVTP (GOLD)
7 4-929-074-01 SCREW (3X8)
8 4-976-827-01 SCREW, FLAT HEAD (BLACK)
8 4-976-827-11 SCREW, FLAT HEAD (GOLD)
9 4-969-823-01 PLATE (L), SIDE (BLACK)
9 4-969-823-11 PLATE (L), SIDE (GOLD)
10 4-972-439-01 SPACER (SCREW HEAD)
11 4-972-438-01 ABSORBENT, VIBRATION
12 4-969-821-01 CASE (TOP PLATE) (BLACK)
12 4-969-821-11 CASE (TOP PLATE) (GOLD)
* 13 A-4660-735-A REINFORCEMENT (TOP PLATE) ASSY
14 4-969-824-01 PLATE (R), SIDE (BLACK)
14 4-969-824-11 PLATE (R), SIDE (GOLD)
15 4-970-123-01 FOOT (F50180S)
16 4-970-124-01 CUSHION (F50180S)
18 4-969-834-01 FILTER
19 4-969-833-21 COVER, LOADING PANEL (BLACK)
19 4-969-833-31 COVER, LOADING PANEL (GOLD)
20 4-949-302-31 WASHER
22 4-972-440-01 SPACER
23 4-949-302-01 WASHER
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.

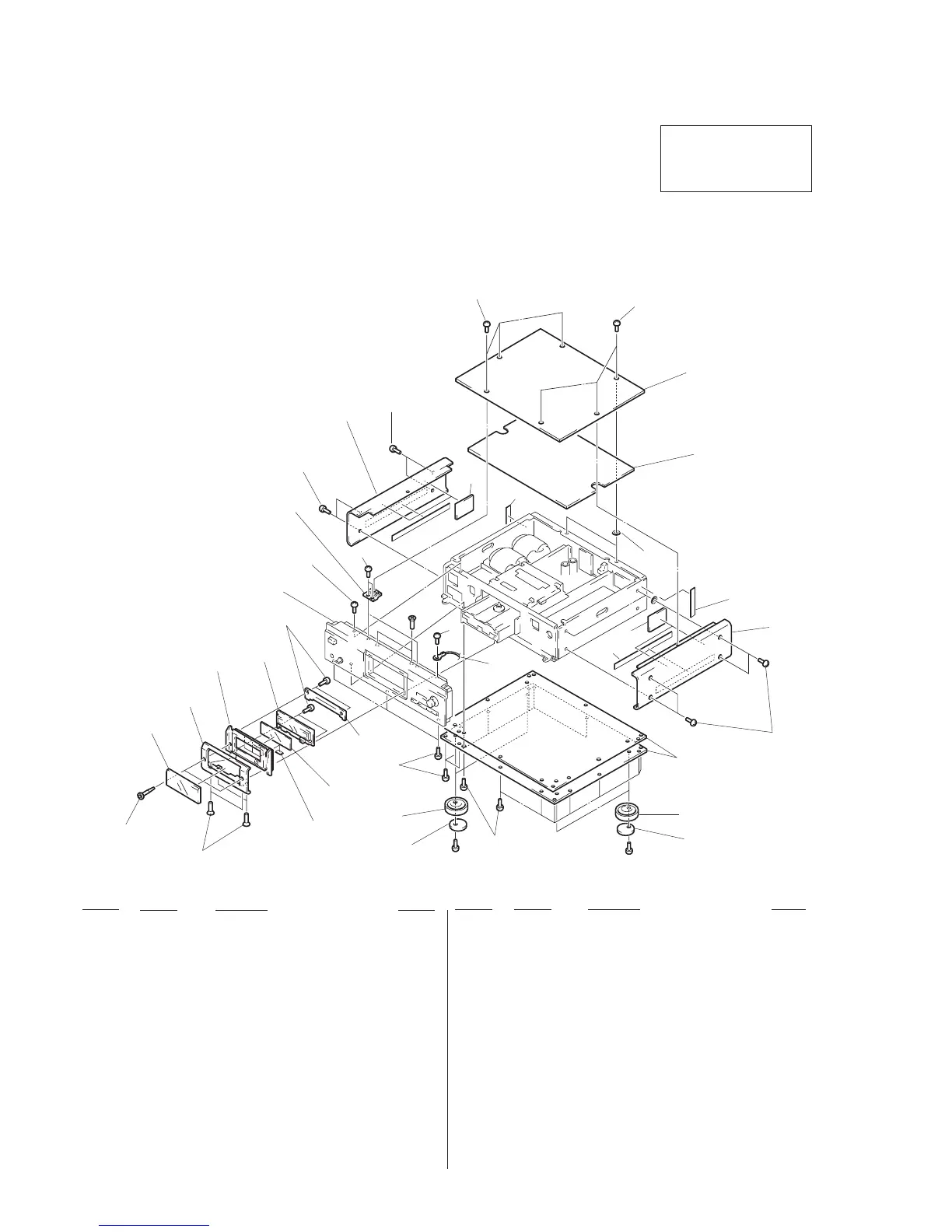

(1) CASE, LOADING PANEL SECTION
8
8
12
13
22
14
11
10
15
16
#3
#3
7
16
15
7
19
18
#1 (For gold)
#2 (For black)
1
2
3
4
5
6
7
7
not supplied
8
9
8
FRONT PANEL SECTION
7
11
21
23
not supplied
#2
not supplied
8
not
supplied
