Sony CDP-XA50ES - PANEL (DRAWER); BASE UNIT (BU-12 B)

– 18 –

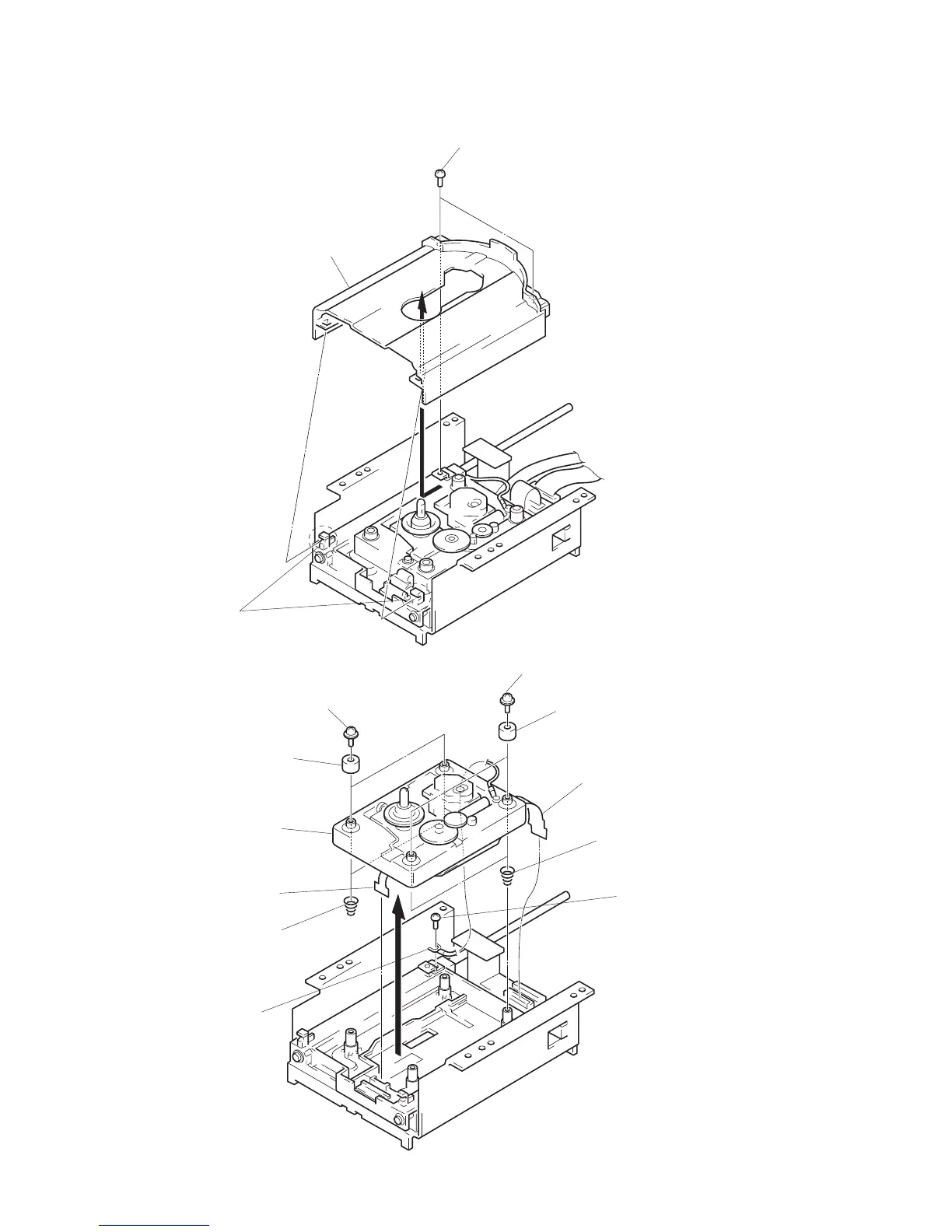

PANEL (DRAWER)
1 two tapping screws
2 two ditch
BASE UNIT (BU-12B)
4 two screws
(PTPWH2.6
× 8)
6 base unit
7 flexible board
(CN291)
7 two coil springs (F)
7 two coil springs (F)
1 flexible board
(CN192)
5 two holders (SP)
4 two screws
(PTPWH2.6
× 8)
3 Remove the panel (drawer)
to direction of the arrow.
5 two holders (SP)
2 screw (B2.6 × 10)
3 lag
