– 50 –
Sony Corporation
Personal & Mobile Communication Company
9-926-097-11
98L090238-1
Printed in Japan © 1998. 12
Published by Quality Assurance Dept.
CDX-2250/3500
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SUBSERVO
R47 1-216-105-00 RES,CHIP 220K 5% 1/10W
R48 1-216-073-00 METAL CHIP 10K 5% 1/10W
R49 1-216-065-00 RES,CHIP 4.7K 5% 1/10W
R50 1-216-065-00 RES,CHIP 4.7K 5% 1/10W
R51 1-216-295-00 SHORT 0
< VARIABLE RESISTOR >
RV1 1-238-091-11 RES, ADJ, CERMET 22K
RV4 1-238-091-11 RES, ADJ, CERMET 22K
**************************************************************
* 1-659-834-11 SUB BOARD
*********
< CONNECTOR >
CN1 1-770-347-21 CONNECTOR, FPC 6P
**************************************************************
MISCELLANEOUS
*************
3 1-769-786-81 CORD (WITH CONNECTOR)
66 1-783-268-11 CABLE, FLAT
! 210 8-820-010-06 PICK-UP, OPTICAL KSS-521A/Q-NP
257 1-769-786-81 CORD (WITH CONNECTOR)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU01 A-3301-697-A TUNER ASSY
LCD551 1-803-439-21 DISPLAY PANEL, LIQUID CRYSTAL
M901 X-3371-664-2 MOTOR ASSY (SPINDLE)
M902 A-3291-674-A MOTOR ASSY, SLED
M903 A-3291-676-A MOTOR SUB ASSY, LOADING
**************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
3-865-650-11 MANUAL, INSTRUCTION, INSTALL
(ENGLISH,FRENCH)(CDX-2250)
3-865-650-21 MANUAL, INSTRUCTION, INSTALL
(ENGLISH,SPANISH,CHINESE)(CDX-3500)
3-865-652-11 MANUAL, INSTRUCTION (ENGLISH)(CDX-2250)
3-865-652-21 MANUAL, INSTRUCTION
(FRENCH)(CDX-2250:CND)
3-865-652-31 MANUAL, INSTRUCTION
(ENGLISH,SPANISH,CHINESE)(CDX-3500)
**************************************************************
*************
HARDWARE LIST
*************
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-794-09 SCREW +PTT 2.6X10 (S)
#4 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#5 7-627-850-28 SCREW,PRECISION +P 1.4X3
#6 7-627-000-00 SCREW,PRECISION +P1.7X2.2TYPE3
#7 7-628-253-00 SCREW +PS 2X4
#8 7-627-553-37 PRECISION SCREW +P 2X3 TYPE 3
#9 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3
**************************************************************

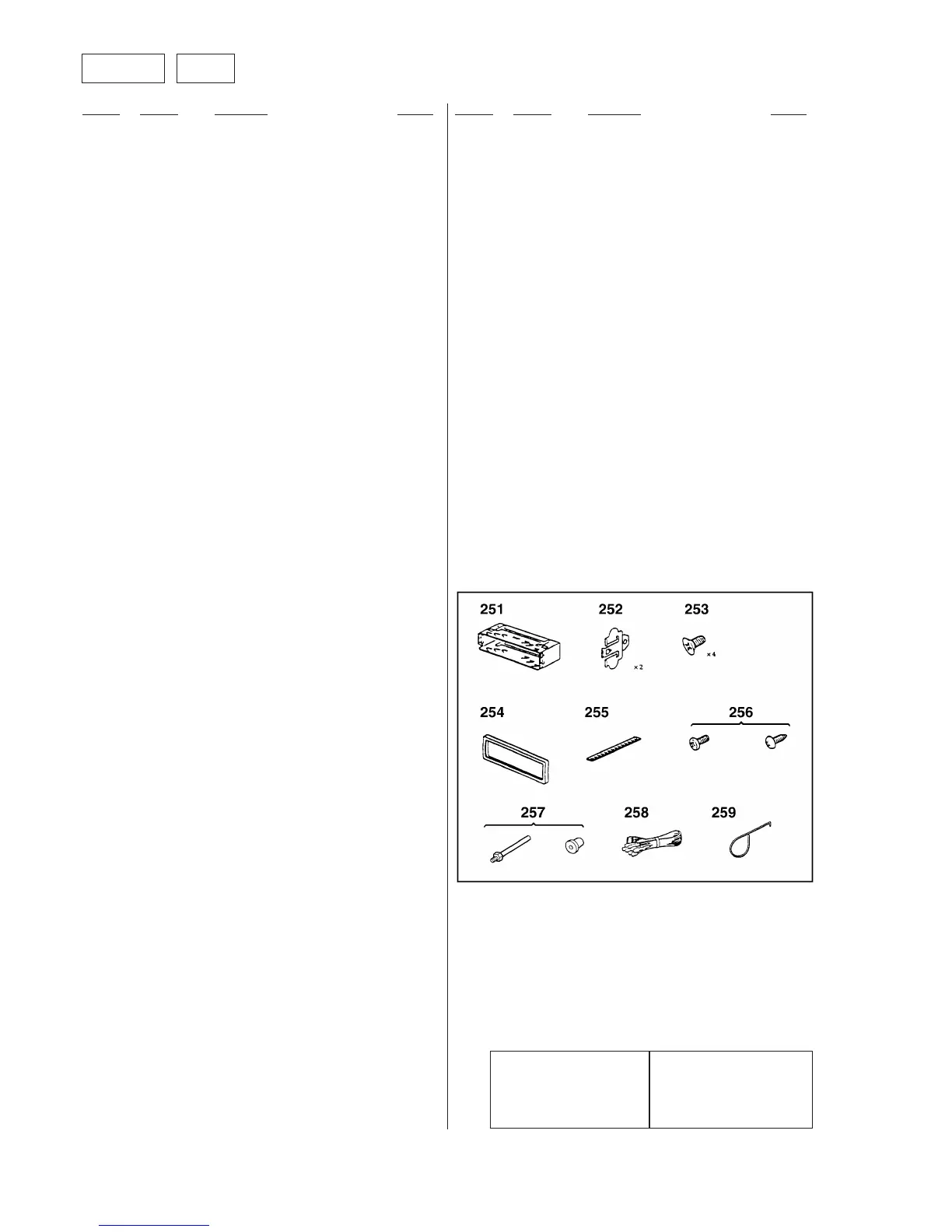

PARTSFOR INSTALLATION AND CONNECTIONS
**************************************
251 3-014-370-21 FRAME, FITTING
252 3-931-977-01 BRACKET
253 3-934-325-01 SCREW (+K 5X8 TP)
254 3-019-569-01 COLLAR
255 3-916-012-01 BRACKET (ND), FITTING ASSIST (CDX-2250)
256 X-3368-725-1 SCREW ASSY, FITTING (CDX-2250)
257 X-3366-405-1 SCREW ASSY (EXP), FITTING (CDX-3500)
258 1-769-786-81 CORD (WITH CONNECTOR) (POWER)
259 3-035-161-01 BRACKET (RELEASE)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
