Sony CX-JT7 - Rear Cabinet Section; MAIN Board

CX-JT7
13
6 rear cabinet section
5 five screws
(BVTP3
× 10)
2 connector (CN303)
1 wire (flat type)
(11core: CIS, MX, E51)
(15core: AEP, UK)
4 cover (duct)
3 two screws
(BVTP3
× 10)

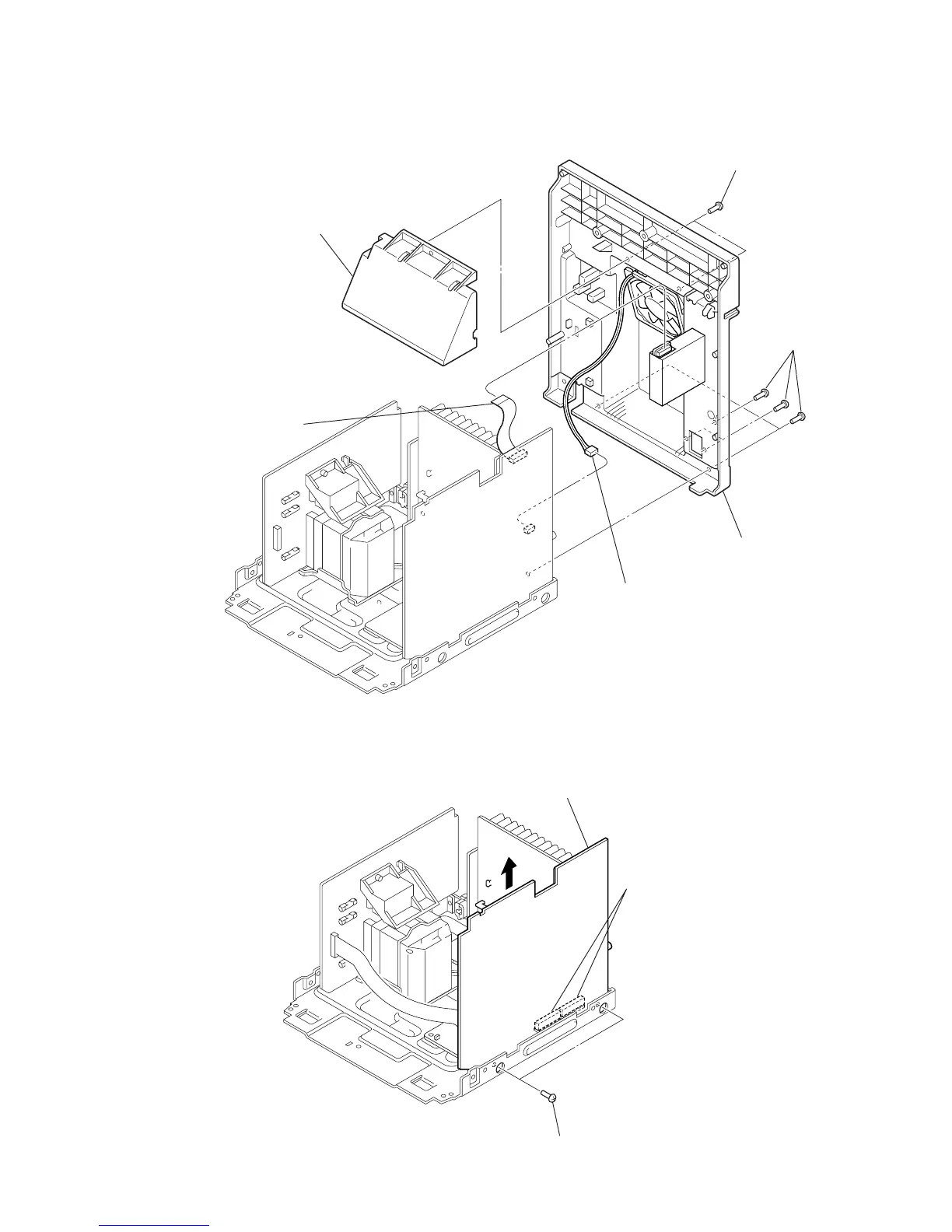

3-8. REAR CABINET SECTION
3-9. MAIN BOARD
1 two screws
(BVTP3
× 10)
3 main board
2 two connectors
(CN502, CN503)
