73
CX-JT7
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
651 A-4732-699-A BD BOARD, COMPLETE
652 3-713-786-51 SCREW (M2X3)
653 2-627-003-01 GEAR (B) (RP)
654 2-626-908-51 SHAFT, SLED
655 2-646-702-01 SPRING, EXTENSION
656 2-646-697-02 SHUTTER (F), LENS
0 657 8-820-020-11 OPTICAL PICK-UP KSS-213D/Z-RP
658 1-823-859-11 WIRE (FLAT TYPE) (16 CORE)
659 2-625-188-02 GEAR (A)
M701 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED)
M702 X-2161-802-1 CHASSIS ASSY (DCP), T. T (SPINDLE)
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
652
653
651
M701
#3
M702
654
655
659
657
658
656
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

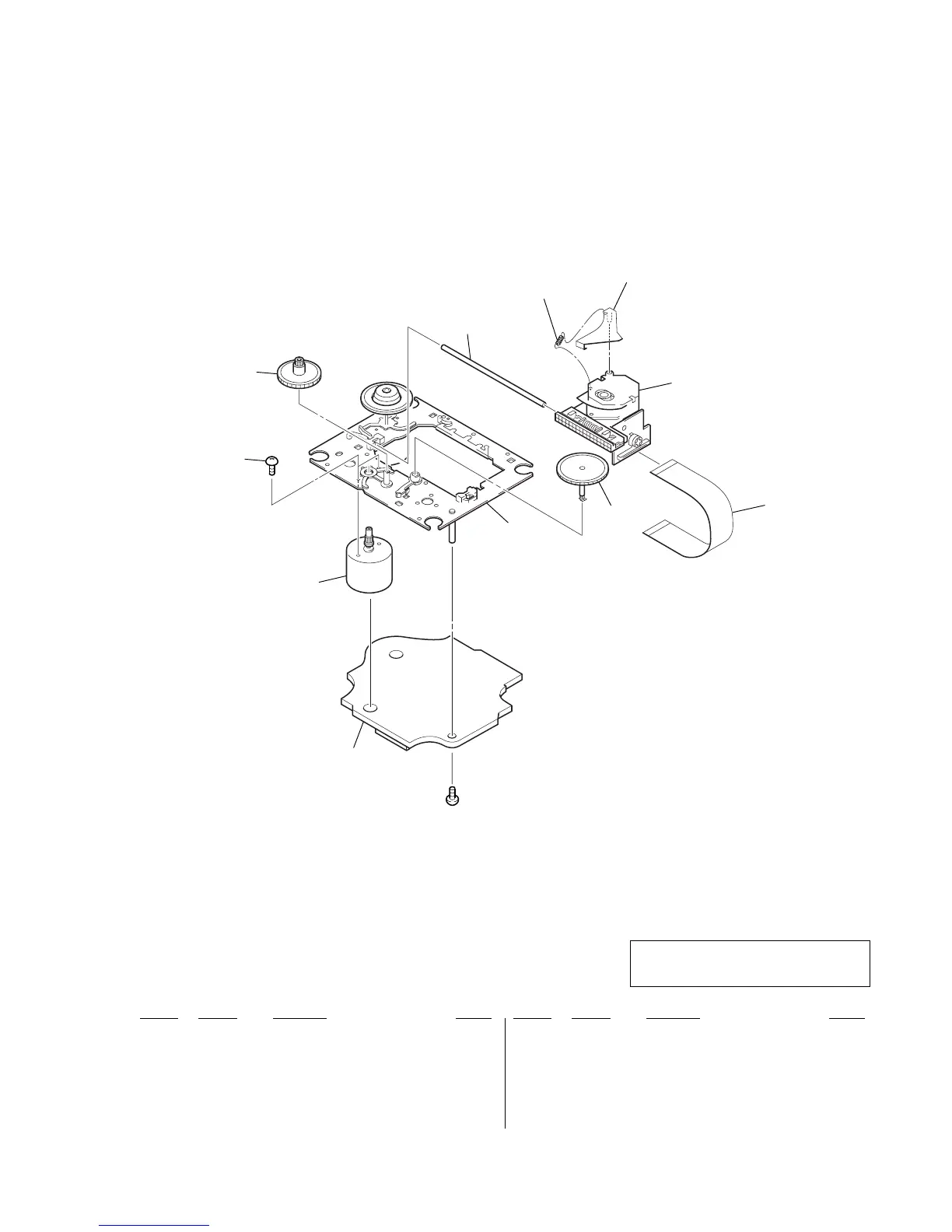

7-11. BASE UNIT SECTION
(BU-K6BD71A)
To Next Page
