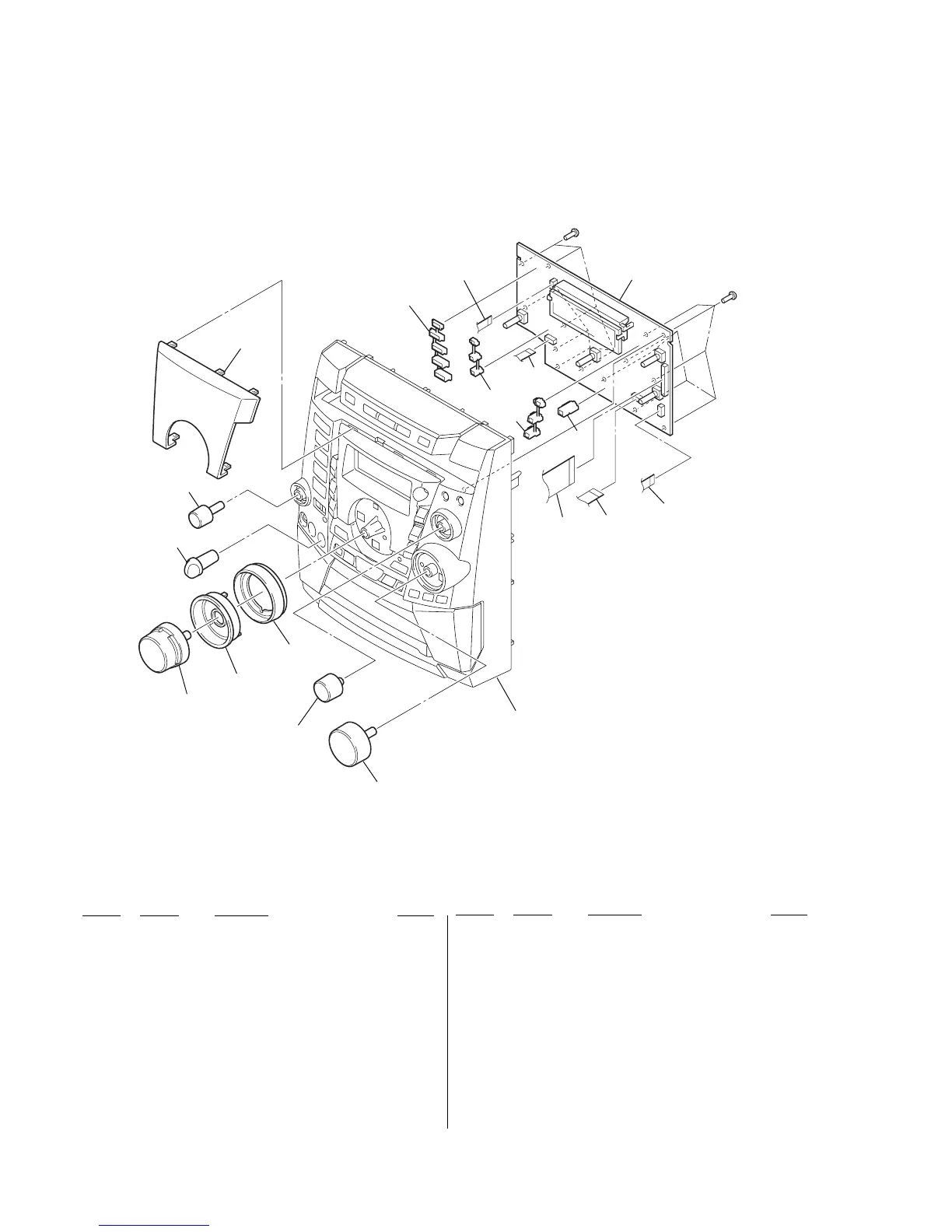

7-2. FRONT PANEL SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-245-125-01 KNOB, ROTARY VOLUME
52 4-245-126-11 KNOB, ROTARY JOG
53 4-246-528-01 RING (BASS)
54 4-245-131-01 PANEL, BASS
55 4-245-128-01 KNOB, ROTARY BASS (AEP, UK, CIS)
55 4-245-132-01 KNOB, ROTARY BASS (LH) (MX, E51)
56 4-245-127-11 KNOB, ROTARY TREBLE
57 4-245-114-51 WINDOW, DISPLAY (AEP, UK)
57 4-245-114-61 WINDOW, DISPLAY (CIS)
57 4-245-114-71 WINDOW, DISPLAY (MX, E51)
58 1-769-889-11 WIRE (FLAT TYPE) (7 CORE)
59 4-245-135-01 GUIDE, LED GRAPHIC EQUALIZER (L)
60 4-245-134-01 GUIDE, LED POWER
61 4-245-141-01 GUIDE, LED GRAPHIC EQUALIZER (R)
62 A-4734-180-A PANEL BOARD, COMPLETE (AEP, UK)
62 A-4734-284-A PANEL BOARD, COMPLETE (MX, E51)
62 A-4734-792-A PANEL BOARD, COMPLETE (CIS)
63 1-773-322-11 WIRE (FLAT TYPE) (31 CORE)
64 1-769-976-11 WIRE (FLAT TYPE) (13 CORE)
65 1-769-919-11 WIRE (FLAT TYPE) (9 CORE)
66 4-245-119-01 KNOB, MICROPHONE (MX, E51)
67 4-245-144-01 GUIDE, LED BASS
68 1-827-399-11 WIRE (FLAT TYPE) (3 CORE)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
51
52
53
54
55
66
56
57
60
58
59
61
68
62
67
63
64
65
