CX-JT7

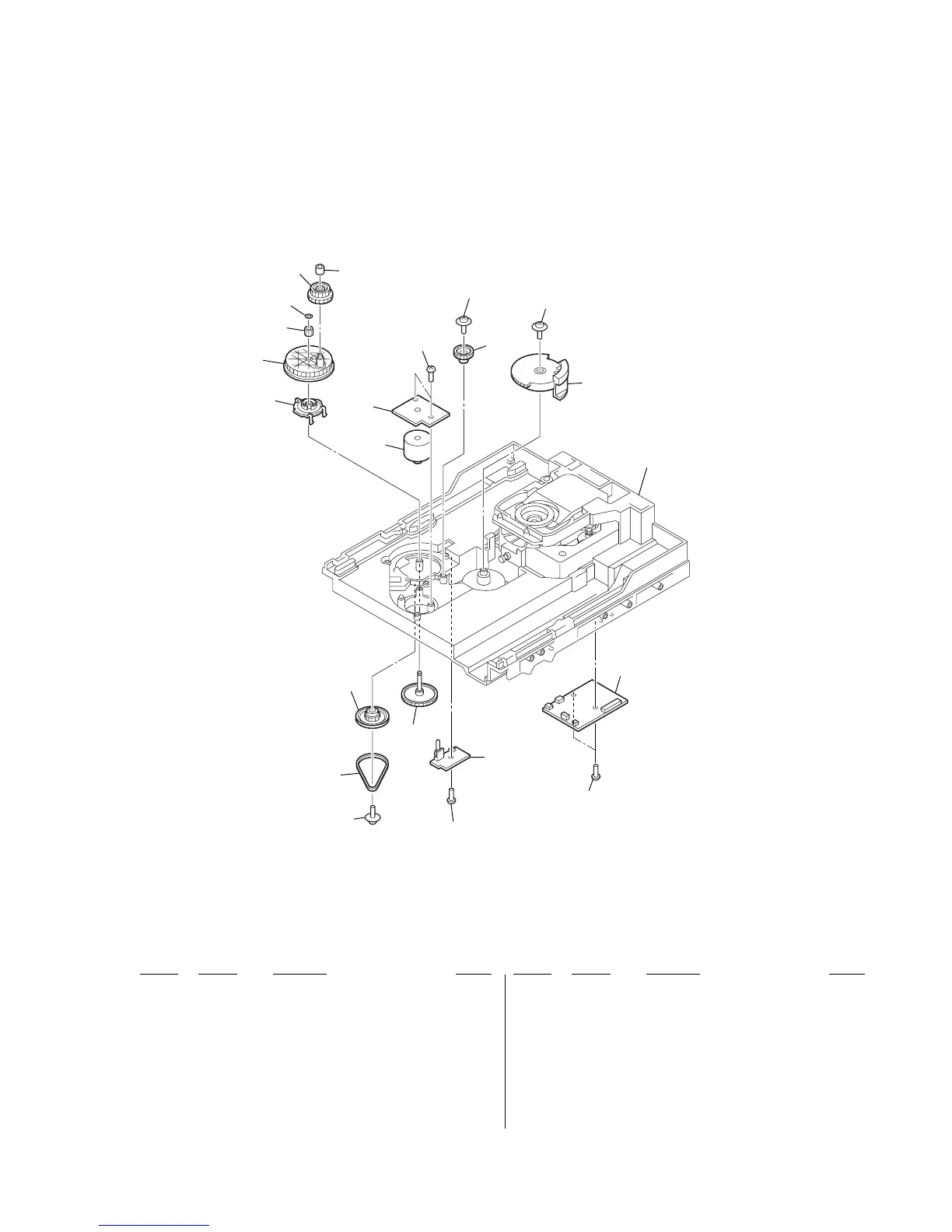

7-9. CD MECHANISM DECK SECTION-2
(CDM74F-K6BD71A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
552 4-244-034-01 BELT (LOADING)
553 4-224-613-01 GEAR (SHAFT)
554 4-218-253-31 SCREW (M2.6), +BTTP
555 1-687-669-11 SW BOARD
556 1-687-135-11 DRIVER BOARD
557 4-225-844-01 GEAR (LOADING A)
558 4-224-611-01 GEAR (LOADING B)
559 4-224-609-01 GEAR (LOADING C)
560 3-016-533-11 WASHER (FR), STOPPER
561 4-244-108-01 GEAR, SWING
562 4-224-608-01 COLLAR, SWING
563 1-687-133-11 MOTOR (LD) BOARD
564 4-224-606-01 GEAR (RV)
565 4-243-818-01 GEAR (U/D)
M751 A-4736-655-A MOTOR ASSY, LOADING
S711 1-477-680-11 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
M751
S711
551
552
553
554
551
551
554
554
555
556
557
558
559
560
561
562
563
564
565
CD mechanism deck section -3
