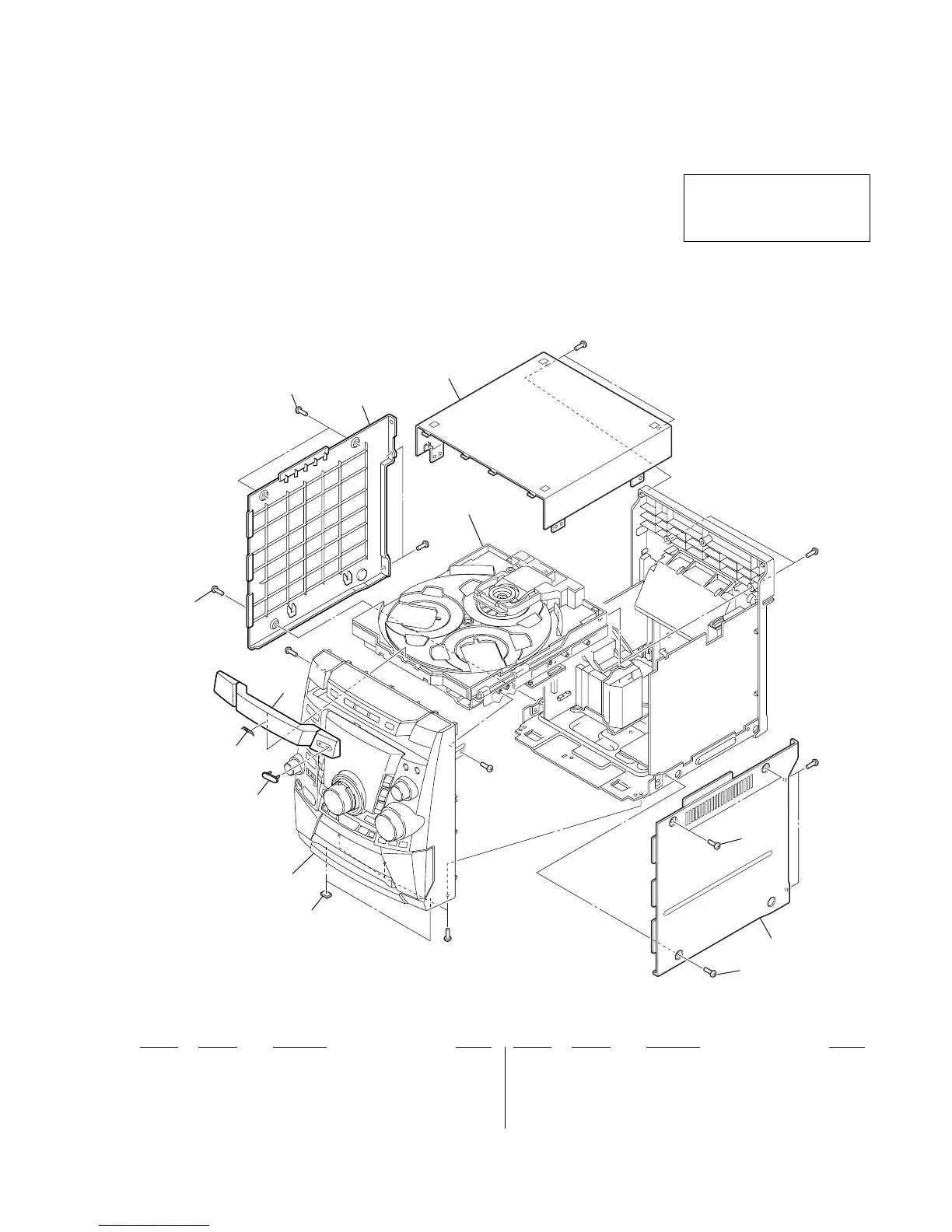

7-1. CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
E51 : Chilean and Peruvian models
MX : Mexican model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-233-980-01 RUBBER FOOT
2 4-246-682-01 EMBLEM (30), MP3
3 4-245-158-01 EMBLEM
4 4-245-113-01 PANEL, TRAY
5 3-363-099-01 SCREW (CASE 3 TP2)
6 3-363-099-41 SCREW (CASE 3 TP2)
7 4-245-183-51 CASE (SIDE-L)
8 4-244-849-51 CASE (TOP)
9 4-245-184-51 CASE (SIDE-R)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
1
2
3
4
5
6
#1
#1
#1
#1
CDM74F-K6BD71A
front panel section-1
#1
#1
#1
9
6
5
7
8
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
