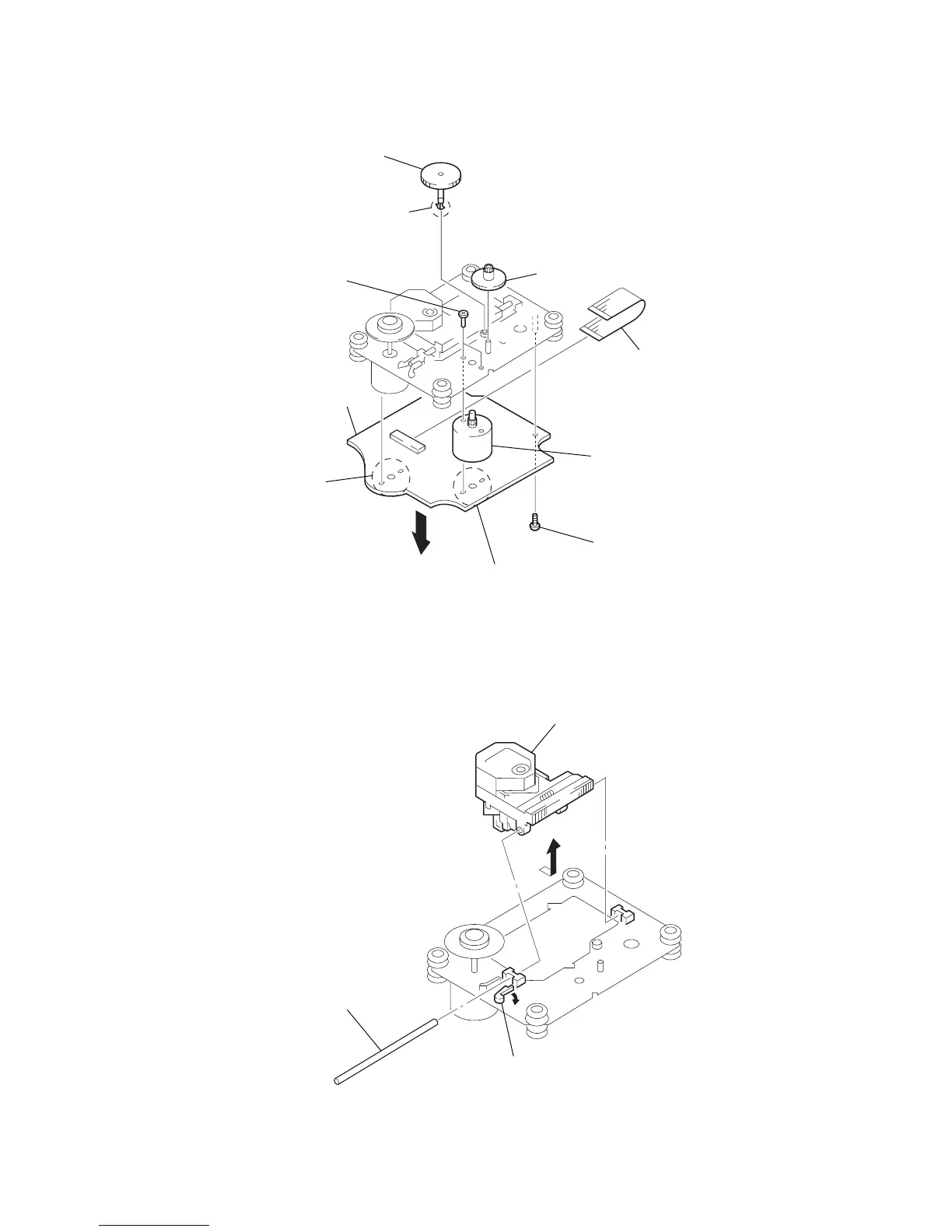

Sony CX-JT7 - Motor Gear Assy (Sled) (M701), BD Board; Optical Pick-Up (KSS-213 D)

CX-JT7
17
1 Remove two
solders.
qa BD board
2 two screws
(P2
× 3)
6 claw
7 gear (A)
8 gear (B)
5 wire (flat type) (16 core
)
(CN708)
0 motor gear assy (SLED)
(M701)
3 screw (P2.6 × 6)
9 Remove two solders.
4
2 sled shaft
1 Slide the lever
in the direction of arrow
A .
3 Remove the optical pick-up
(KSS-213D) in the direction
of arrow
B .
A
B
3-16. MOTOR GEAR ASSY (SLED) (M701), BD BOARD
3-17. OPTICAL PICK-UP (KSS-213D)
