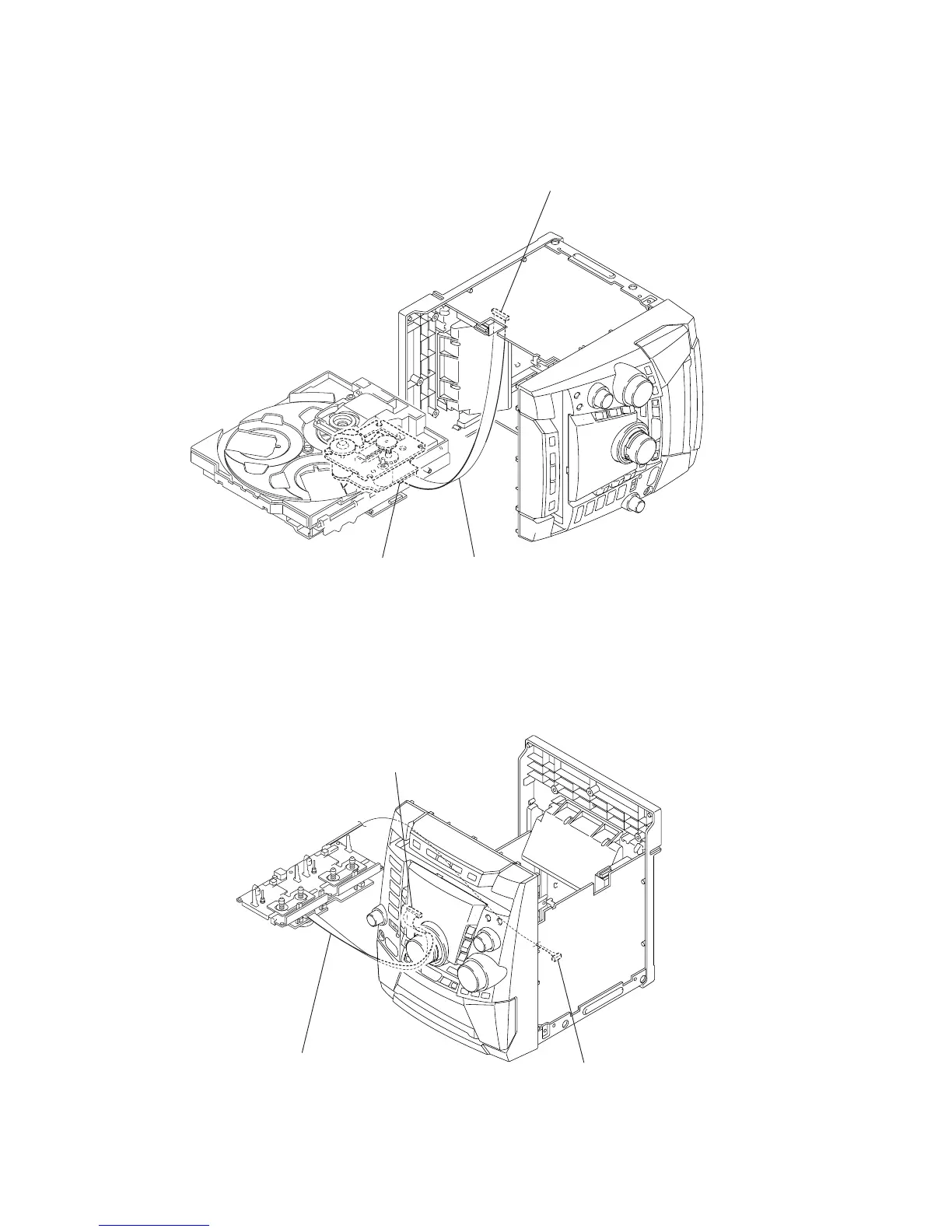

SERVICE POSITION
– CD mechanism deck –
– Tape mechanism deck –
main board (CN312)
Connect wire (flat type) (19 core) to
main board (CN312) and BD board (CN710).
BD board (CN710)
Connect wire (flat type) (13 core) to
panel board (CN801) and mechanical deck.
panel board (CN801)
main board (CN203)
