Sony DCR-TRV890E - Repair Parts List; Exploded Views; Overall Section

6-1
DCR-TRV890E/TRV900/TRV900E
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
AUS: Australian model
JE: Tourist model
CND: Canadian model
CN: Chinese model
HK: Hong Kong model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

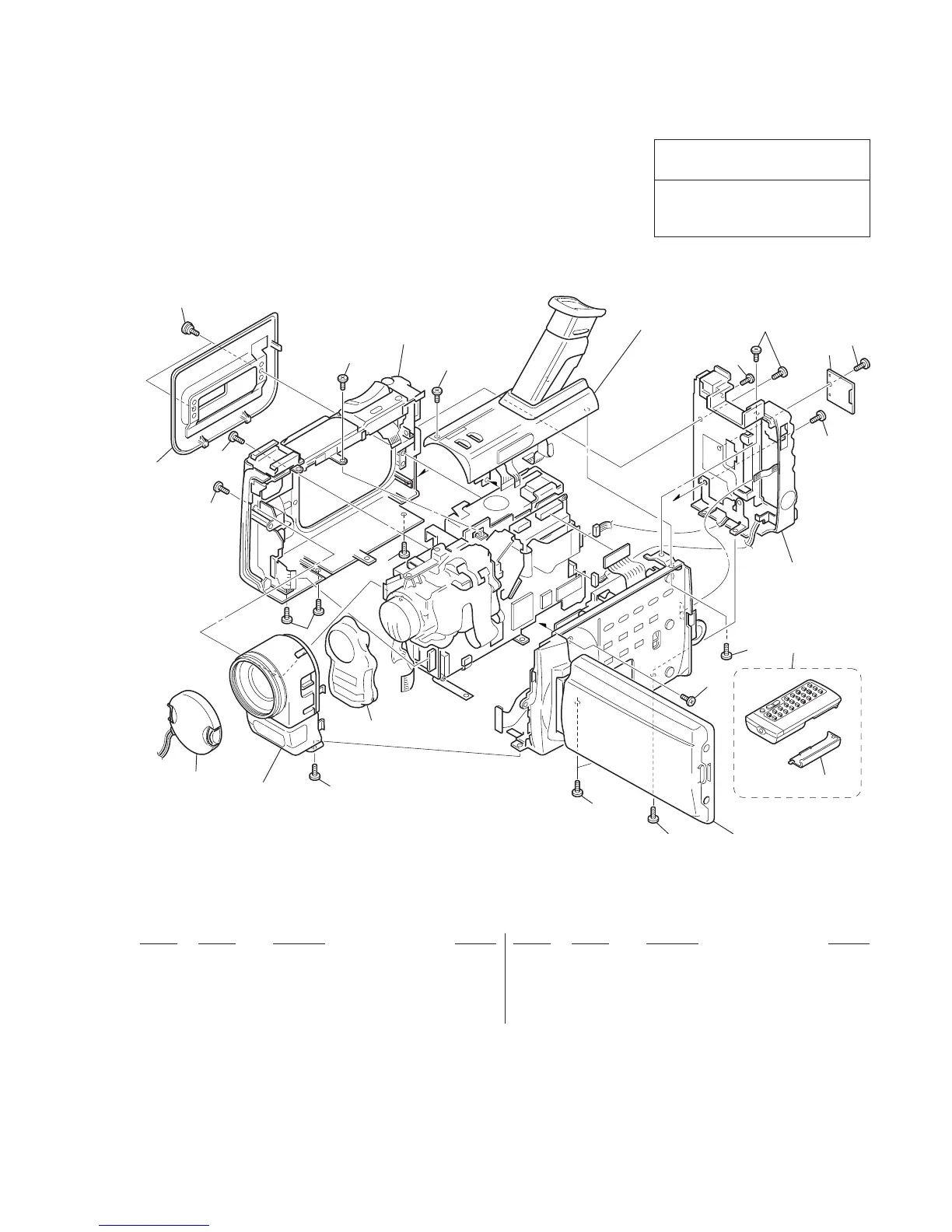

6-1-1.OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3948-941-1 CAP ASSY, LENS
2 3-968-729-01 SCREW (M2), LOCK ACE, P2
3 X-3948-999-1 LID ASSY, CASSETTE
4 3-989-746-01 SCREW (M2 STEP)
5 3-968-729-71 SCREW (M2), LOCK ACE, P2
6 3-051-885-01 COVER, CPC
7 3-052-033-01 SHEET, ACOUSTIC ISOLATION
8 1-475-950-21 REMOTE COMMANDER (RMT-811) (900/900E)
8 1-475-950-31 REMOTE COMMANDER (RMT-812) (890E)
9 3-053-056-01 LID, BATTERY CASE
4
2
5
2
2
3
2
2
7
2
1
5
2
9
8
5
5
2
6
2
2
5
Cabinet (Upper) block assembly
(See Page 6-7)
Cabinet (L) block assembly
(See Page 6-3)
Cabiinet (R) block assembly
(See Page 6-4)
Battery panel block
assembly
(See Page 6-6)
Front panel assembly
(See Page 6-9)
