Sony DCR-TRV890E - Sircs Receiver; Stereo MIC Amp

DCR-TRV890E/TRV900/TRV900E

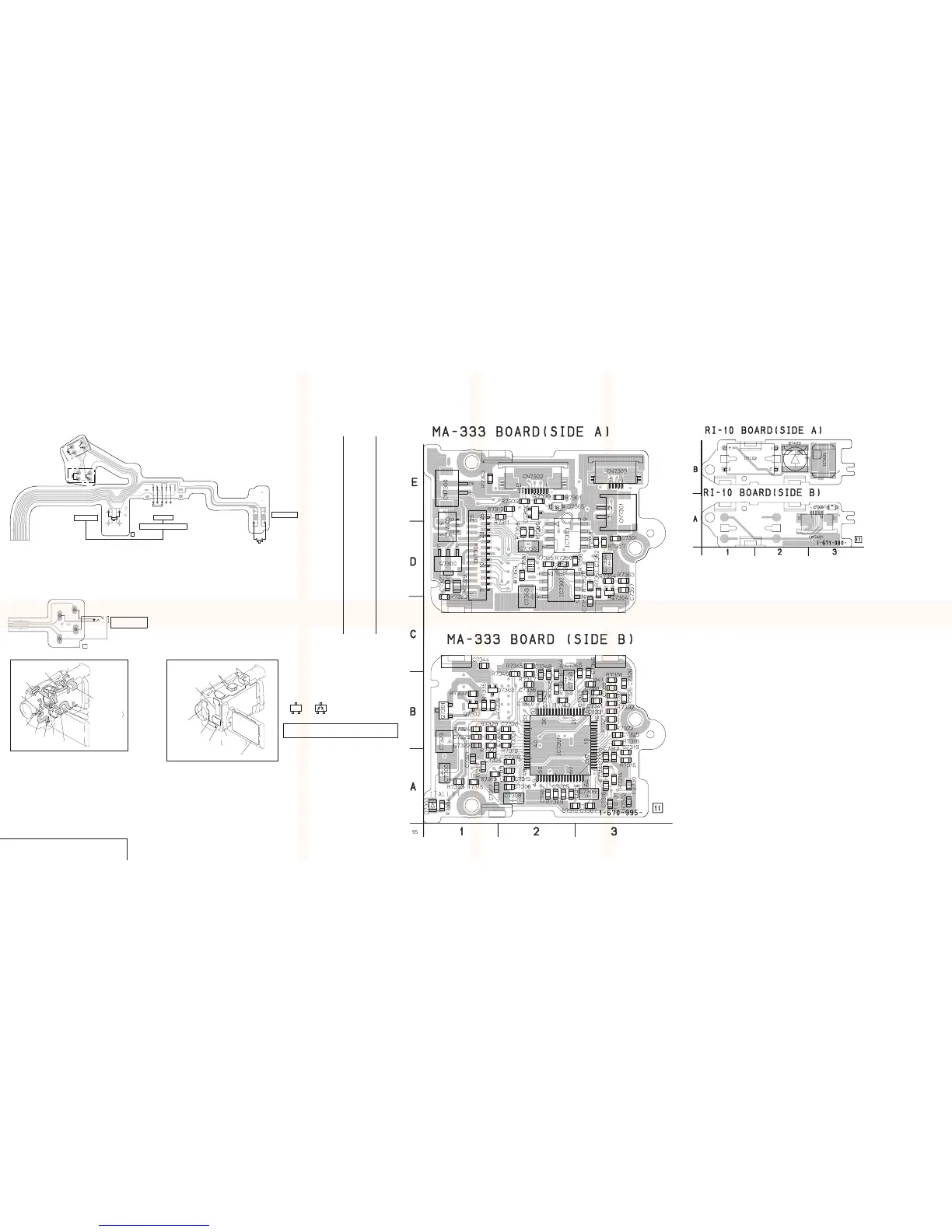

RI-10 (SIRCS RECEIVER) PRINTED WIRING BOARD
— Ref. No. RI-10 Board; 10,000 Series —
MA-333 (STEREO MIC AMP) PRINTED WIRING BOARD
— Ref. No. MA-333 Board; 10,000 Series —
RI-10 BOARD
CN7401 A-3
D7401 A-3
D7402 B-1
D7403 B-2
IC7401 B-3
MA-333 BOARD
C7300 A-1
C7301 D-3
C7302 A-2
C7305 A-2
C7306 A-2
C7307 A-3
C7308 A-2
C7309 A-3
C7310 A-2
C7312 A-3
C7313 A-2
C7314 A-3
C7315 A-2
C7316 A-3
C7317 A-1
C7318 A-2
C7319 A-3
C7320 A-3
C7321 A-1
C7322 B-1
C7323 B-1
C7324 A-1
C7325 B-3
C7326 B-3
C7327 D-1
C7328 B-2
C7329 B-1
C7330 B-1
C7331 B-3
C7332 B-3
C7333 B-3
C7336 B-3
C7337 B-3
C7338 B-2
C7339 B-3
C7340 B-2
C7341 B-3
C7342 B-3
C7343 B-2
C7344 C-1
C7345 C-3
C7346 C-3
C7347 B-3
C7348 B-2
C7350 B-2
C7351 D-2
C7352 D-3
C7353 D-2
C7354 D-3
C7355 D-2
C7356 C-3
C7357 D-3
CN7300 E-1
CN7301 E-3
CN7302 E-2
CN7303 E-3
CN7304 D-1
CN7305 D-1
D7300 A-1
D7304 E-2
D7305 E-2
FB730 A-3
FB731 A-3
IC7301 B-2
IC7302 D-2
IC7303 D-2
Q7300 D-1
Q7301 B-1
Q7302 B-1
Q7303 B-1
Q7304 D-3
R7302 A-3
R7303 A-1
R7304 A-1
R7305 E-2
R7306 E-2
R7309 A-2
R7310 A-2
R7311 E-2
R7312 E-2
R7313 A-1
R7314 A-3
R7315 A-1
R7316 A-3
R7317 A-1
R7318 B-3
R7319 B-2
R7320 B-1
R7321 B-2
R7322 B-3
R7323 C-1
R7324 B-1
R7326 B-3
R7327 B-3
R7328 B-1
R7329 D-1
R7331 B-3
R7332 B-3
R7335 B-1
R7337 B-1
R7339 B-1
R7342 B-2
R7343 B-2
R7344 B-2
R7345 C-2
R7346 B-2
R7347 B-2
R7348 B-2
R7350 D-2
R7351 D-3
R7352 D-3
R7353 D-2
R7354 D-3
R7355 D-2
R7356 D-3
R7357 D-3
R7358 D-2
R7359 D-3
R7360 D-2
R7361 E-2
R7362 E-1
R7363 D-3
ED-48
(USER CONTROL)
VF-121
(COLOR EVF)
SE-75
(YAW/PITCH SENSOR)
JK-163
(AUDIO/VIDEO IN/OUT)
RI-10
(SIRCS RECEIVER)
MA-333
(STEREO MIC AMP)
CK-80
USER CONTROL,
LCD DRIVE
PD-101
(RGB DRIVER, TIMING GENERATOR, BACK-LIGHT)
LB-55
(EVF BACK-LIGHT)
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
3
21
4-97 4-98
STEREO MIC AMP
MA-333
/
SIRCS RECEIVER
RI-10
4-96
FP-21 (FOCUS SW) FLEXIBLE BOARD
FP-22 (MIC JACK) FLEXIBLE BOARD
8 2
FP-21
1-670-988-
11
FP-21 FLEXIBLE BOARD
1
10
S702
PH700
PH701
S700
S701
ND FILTER
FOCUS
INFINITY - MANUAL - AUTO
PUSH AUTO
8
1
FP-22
1-670-989-
FP-22 FLEXIBLE BOARD
11
15
J7301
MIC
(PLAG IN POWER)
LENS BLOCK
FP-10
FP-21
(FOCUS)
FP-22
(MIC JACK)
FP-12
FP-37
FP-14
(From VIDEO HEAD)
(From DRUM MOTOR)
From LOADING MOTOR,
S/T REEL SENSOR
FP-9
FP-20
(From CAPSTAN MOTOR)
