DCR-TRV890E/TRV900/TRV900E
CD-202
(CCD IMAGER)
VI-151
REC/PB AMP, TIMING GENERATOR, VIDEO INTERFACE,
DCT/IDCT, IR TRANSMITTER, AUDIO PROCESSOR,
HI CONTROL, MECHANISM CONTROL,
DRUM/CAPSTAN MOTOR DRIVE, DC/DC CONVERTER
VC-208
SAMPLE HOLD & AGC,
CAMERA PROCESSOR,
BASE BAND INPUT,
MOTOR DRIVE, VAP DRIVER,
CARD CONTROL,
PWM CONTROL,
HONEY/PCMCIA CONTROL
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
5
64
2
13
42
31
3
21

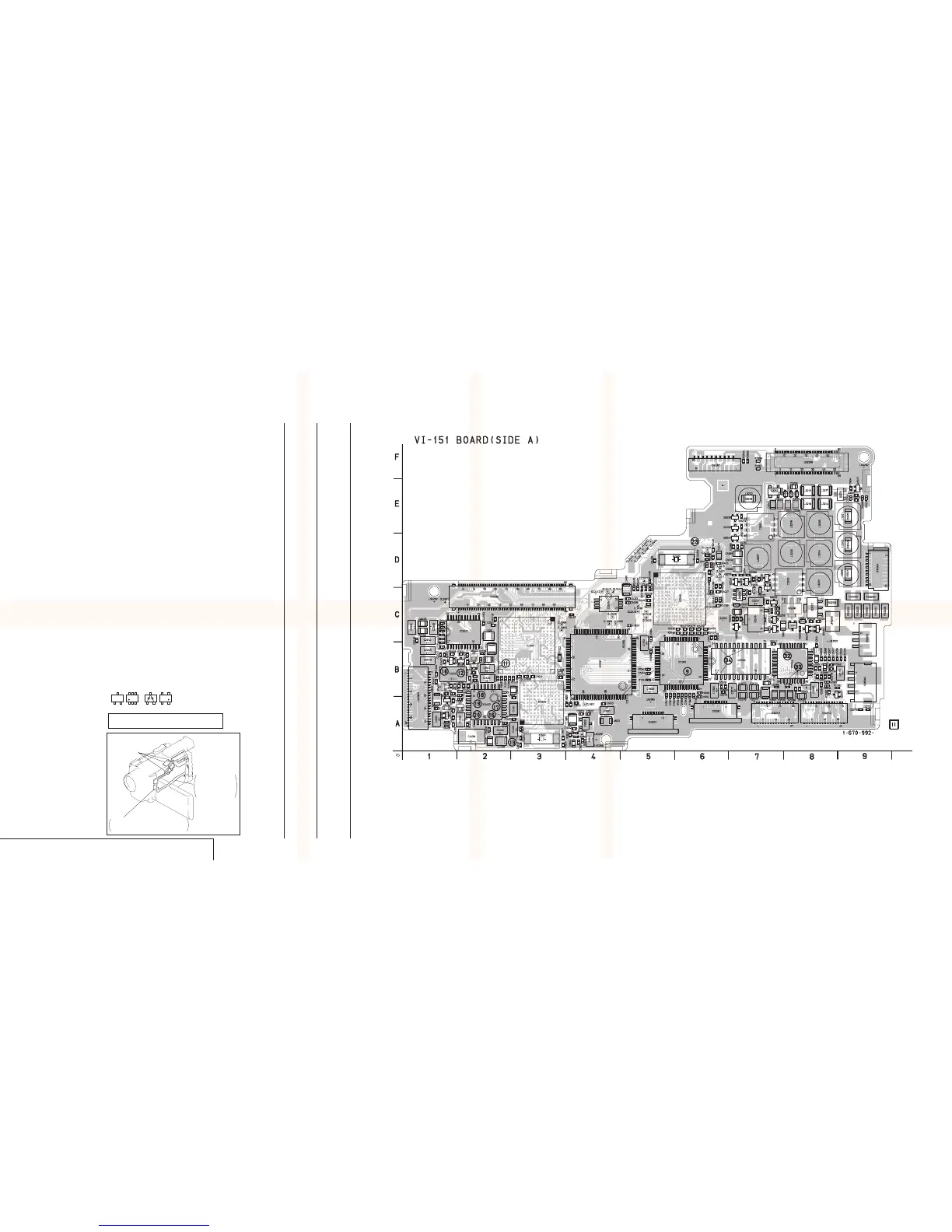

VI-151 BOARD (SIDE A)
C1401 A-3
C1402 A-3
C1404 A-2
C1405 A-2
C1409 B-3
C1418 A-2
C1422 B-2
C1423 B-1
C1433 A-2
C1434 A-1
C1436 A-2
C1438 B-2
C1439 A-2
C1449 B-2
C1450 A-3
C1451 A-3
C1452 A-1
C1503 B-2
C1506 B-3
C1507 C-2
C1512 B-2
C1513 B-2
C1600 A-4
C1601 A-4
C1602 A-4
C1603 A-4
C1606 A-3
C1607 A-3
C1612 A-1
C1613 A-4
C1614 B-3
C1615 A-4
C1617 A-4
C1621 A-4
C1623 A-1
C1901 C-6
C1902 A-6
C1903 B-6
C1904 C-5
C1908 A-6
C1909 A-5
C1910 A-6
C1914 B-5
C1915 B-5
C1933 B-5
C2018 C-1
C2029 C-1
C2033 C-1
C2042 C-1
C2043 B-1
C2044 C-1
C2045 B-1
C2046 C-1
C2047 B-1
C2048 C-1
C2049 B-1
C2050 B-1
C2051 B-1
C2053 C-2
C2400 C-5
C2402 D-5
C2403 D-6
C2405 D-6
C2408 C-5
C2409 D-6
C2410 D-6
C2500 B-9
C2507 B-8
C2565 B-8
C2566 B-8
C2569 B-6
C2570 B-8
C2572 B-8
C2573 B-9
C2574 B-7
C2575 B-8
C2576 B-6
C2577 B-7
C2579 B-6
C2582 B-8
C2583 B-8
C2585 B-8
C2586 B-8
C2587 B-8
C2588 B-8
C2589 B-7
C3205 E-9
C3221 C-7
C3236 E-8
C3237 C-7
C3244 C-7
C3245 E-7
C3246 E-7
C3248 E-8
C3249 E-8
C3255 E-9
C3260 D-7
C3262 D-7
C3269 D-7
C3272 A-9
C3273 A-9
CN1810 A-5
CN2901 C-2
CN2903 A-1
CN2904 D-9
CN2905 F-6
CN2906 F-8
CN2911 A-6
CN2912 A-8
CN2913 A-7
CN3200 B-9
CN3201 C-9
D1600 A-4
D3204 C-8
D3205 C-8
D3208 E-7
D3213 E-7
D3216 E-8
D3217 E-8
D3225 C-7
D3226 C-7
D3227 C-7
IC1402 A-2
IC1501 B-3
IC1600 A-3
IC1601 B-4
IC1900 B-6
IC2002 C-2
IC2401 C-6
IC2404 C-4
IC2504 B-8
IC2505 B-7
L1400 A-2
L1500 C-2
L1501 B-2
L1601 A-4
L1602 A-1
L1603 A-4
L2400 C-5
L2512 B-7
L3200 D-9
L3201 E-9
L3202 E-7
L3203 D-9
L3204 D-8
L3205 D-8
L3206 E-8
L3207 D-7
L3208 E-8
L3209 D-8
L3214 E-8
L3215 E-8
L3216 E-8
L3217 E-8
LF3200 C-8
PS3200 C-9
PS3201 C-9
PS3202 C-9
PS3203 C-9
PS3204 C-9
PS3205 C-9
PS3206 C-9
Q1402 A-1
Q1403 A-1
Q1405 B-1
Q1406 A-2
Q1500 B-1
Q1501 B-2
Q1502 B-2
Q1503 B-2
Q2507 B-8
Q3203 C-8
Q3204 C-8
Q3205 C-8
Q3206 C-8
Q3215 C-7
Q3216 C-7
Q3217 C-7
Q3219 C-7
Q3225 C-7
Q3226 C-7
Q3227 E-9
Q3231 E-9
Q3234 C-7
Q3235 E-7
Q3236 D-7
Q3238 E-7
Q3239 D-7
Q3240 D-7
Q3241 D-7
R1414 B-2
R1418 A-2
R1419 B-2
R1421 B-2
R1425 B-1
R1426 B-1
R1430 A-1
R1432 B-2
R1433 A-1
R1434 B-1
R1438 A-1
R1439 B-1
R1440 A-1
R1445 A-1
R1446 B-1
R1447 B-1
R1453 B-2
R1454 B-2
R1455 A-2
R1507 B-1
R1508 B-2
R1509 B-1
R1510 B-2
R1511 B-2
R1512 B-2
R1513 B-3
R1514 B-2
R1515 B-2
R1516 B-3
R1517 B-2
R1518 B-2
R1519 C-2
R1521 B-2
R1522 B-3
R1618 A-4
R1619 A-4
R1620 A-3
R1621 A-4
R1622 A-4
R1623 B-3
R1624 A-4
R1625 A-4
R1626 A-3
R1627 A-3
R1628 B-3
R1629 C-5
R1629 C-5
R1689 A-4
R1909 A-5
R1938 B-6
R1939 B-5
R1940 B-5
R1941 B-5
R1942 A-6
R1943 A-5
R1944 A-6
R1945 C-6
R1946 A-6
R2050 C-1
R2051 C-1
R2052 C-1
R2053 C-1
R2401 C-5
R2402 C-4
R2405 C-5
R2406 D-5
R2407 C-5
R2408 C-5
R2409 C-5
R2410 C-5
R2411 C-5
R2415 C-6
R2416 C-6
R2417 C-6
R2418 C-6
R2419 C-6
R2420 C-6
R2421 C-6
R2422 C-6
R2423 C-6
R2424 C-6
R2425 D-6
R2426 D-6
R2427 C-6
R2428 C-6
R2429 D-6
R2430 D-6
R2432 D-6
R2433 C-5
R2434 D-6
R2436 D-6
R2439 C-6
R2440 C-6
R2441 C-6
R2442 D-6
R2445 D-6
R2505 B-9
R2506 B-8
R2507 B-8
R2508 B-8
R2511 B-8
R2517 B-7
R2530 B-8
R2531 A-7
R2532 A-7
R2533 A-8
R2534 B-8
R2569 B-8
R2572 B-8
R2574 A-7
R2575 B-7
R2576 A-7
R2577 B-7
R2579 B-8
R2582 B-8
R2583 B-8
R2585 B-8
R2587 B-8
R2599 A-8
R2903 F-7
R2904 F-7
R2906 F-7
R2907 F-7
R3203 C-8
R3205 C-8
R3206 C-8
R3208 C-8
R3210 E-9
R3211 D-9
R3215 E-9
R3216 E-7
R3246 D-9
R3257 C-7
R3258 C-7
R3259 C-7
R3260 C-7
R3261 C-7
R3262 C-7
R3264 E-9
R3268 E-9
R3270 E-9
R3272 D-7
R3274 E-7
R3276 D-7
R3277 E-7
R3283 D-7
R3284 D-7
R3285 D-7
R3286 D-7
R3287 D-7
R3299 D-7
R3300 C-7
R3302 C-7
T3200 D-8
T3201 E-7
X1600 A-3
X2400 D-6
VI-151 (REC/PB AMP, TIMING GENERATOR, VIDEO INTERFACE, DCT/IDCT, IR TRANSMITTER, AUDIO PROCESSOR,
HI CONTROL, MECHANISM CONTROL, DRUM/CAPSTAN MOTOR DRIVE, DC/DC CONVERTER) PRINTED WIRING BOARD
— Ref. No. VI-151 Board; 10,000 Series —
4-91 4-92
VIDEO IF, VIDEO I/O & IR, SYSTEM/SERVO CONTROL, AUDIO, POWER
VI-151
To Next Page
