18
Chapter 2 Locations and Functions of Parts and Controls
Chapter 2 Locations and Functions of Parts and Controls
Locations and Functions of Parts and Controls
5 MTR button
Press this button so that it lights. The channel faders on
the Channel strip panel function as the send-volume
controls for the MTR bus.
6 TRIM button
Press this button so that it lights. The channel faders on
the Channel strip panel function as the trimming
volume controls.
PAGES section
The PAGES section allows you to select the pages of
24 channels assigned to the Channel strip panel.
Although the inactive pages are hidden the correct
display positions are recalled when paged.
7 Page selectable buttons
Press button (1 - 24) so that it lights, to load settings
(for the meter, WRITE button, pan control, SOLO
button, CUT button, ACCESS button and the channel
fader) for channels (1 to 24).
Press a button (25 - 48) so that it lights, to load
settings for channels (25 to 48).
8 MASTERS button
Press this button so that it lights. When this button is
lit, controls on the channel strip panel (meter, WRITE
button, PAN control, SOLO button, CUT button,
ACCESS button and the channel fader) are assigned to
24 channel strips for MTR buses (channel 1 to channel
8), AUX SEND buses (channel 1 to channel 8) and
AUX RETURN buses (channel 1 to channel 8).

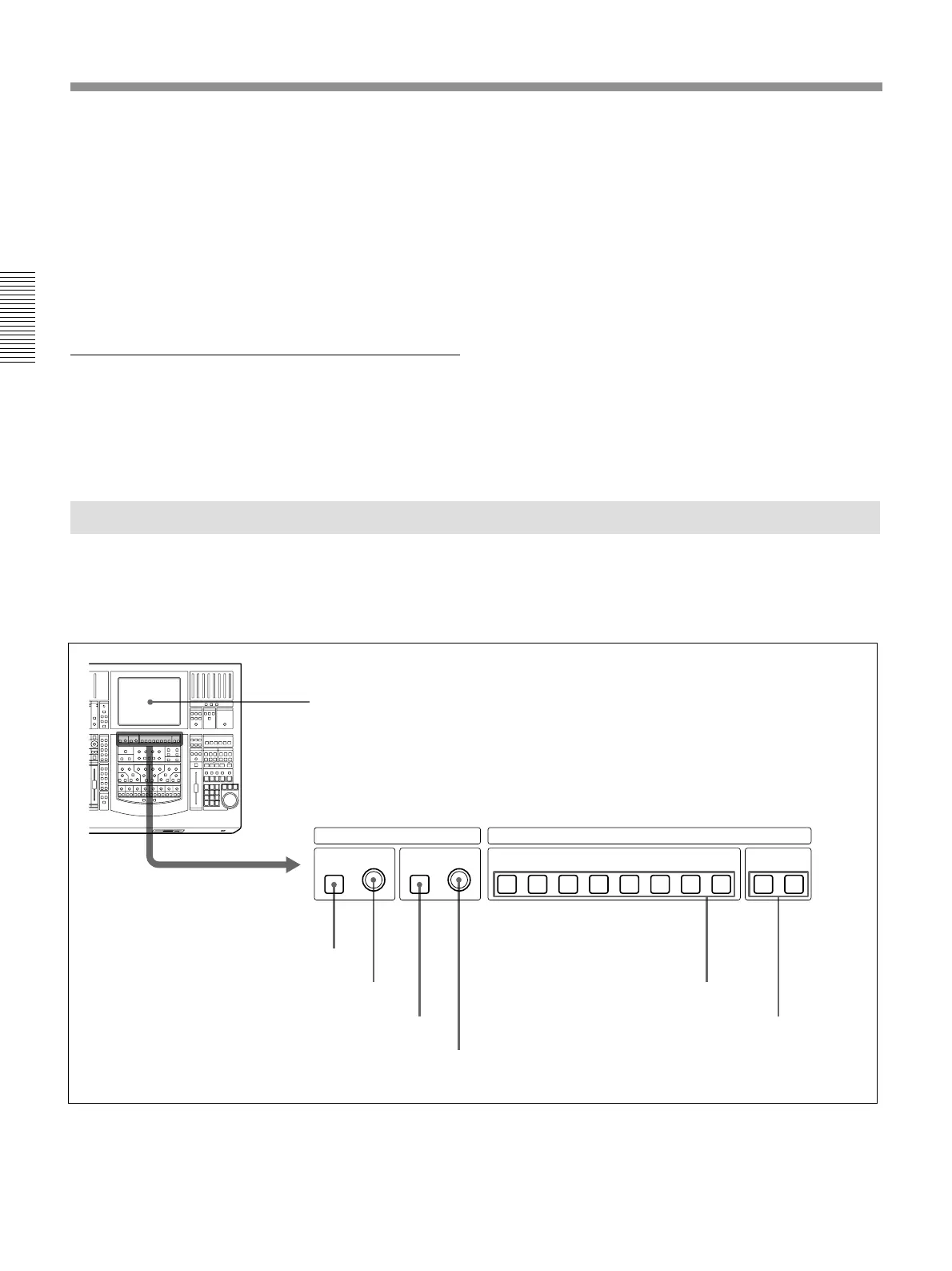

INPUT BUS ASSIGN
PROGRAMMTRTRIM
Ø
DELAY
IN
1 2 3 4 5 6 7 8 L R
Display
1 ∅ button
2 TRIM control
3 DELAY IN button
4 DELAY control
5 MTR 1 to 8 buttons
6 PROGRAM L/R buttons
Parameter Setting Panel
This panel allows you to set the parameters of
channels. The ACCESS button is used to assign
channels.
