Chapter 3 Menu
Chapter 3 Menu

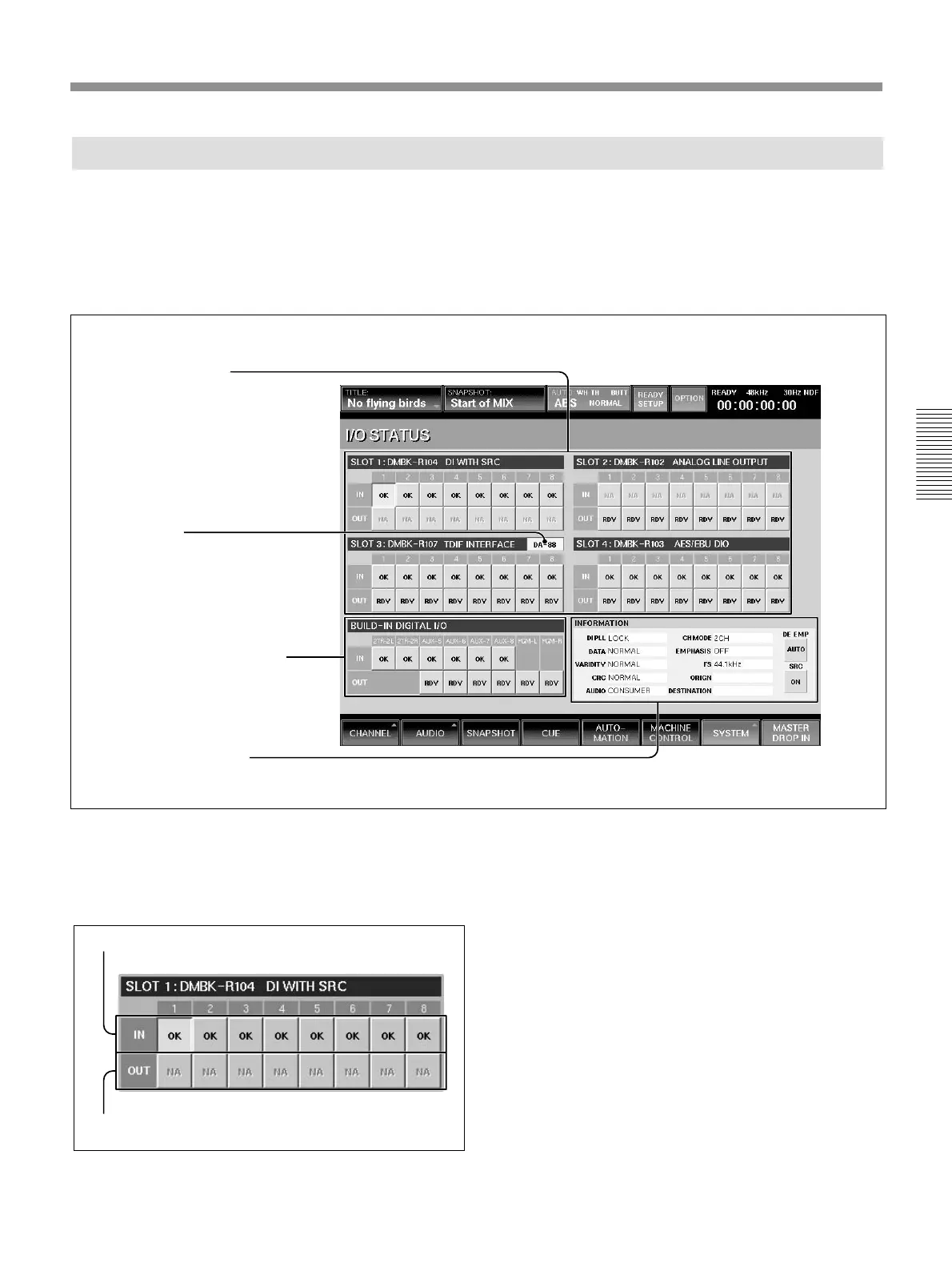

I/O STATUS Window
To open this window, touch the SYSTEM button on
the bottom menu bar, then select the I/O STATUS on
the menu.
This window allows you to check the performance of
the digital audio input/output.
1 SLOT 1 to 4 section
4 INFORMATION section
1 SLOT 1 to 4 section
Displays the name and function of the board inserted
into the four slots on the unit. It also displays the status
of the input/output signals.
A IN buttons
B OUT buttons
A IN buttons
On these buttons, OK, NA, or !xxx is displayed as the
status of the input signal of the channel.
By touching this button, the details of the input signal
of the channel are displayed on the INFORMATION
section 4 .
The status displays have the following meaning.
• OK
Indicates that the signal is input correctly.
• NA (Not Available)
Indicates that this channel cannot be used as the
input signal.
• !xxx
Indicates that there is trouble in the input signal.
In this case, touch this button to display the details
on the INFORMATION section and check the status.
When !UNLC (unlock) is displayed, the input’s PLL
cannot be locked.
2 DA 88 button
3 BUILD-IN DIGITAL I/O section
