86
Chapter 3 Menu
Chapter 3 Menu
Menu Windows
1 SAMPLING FREQUENCY buttons
2 SYNC CLOCK section
3 PLL status display section
4 CHANGE button
5 TIME CODE READER section
6 MEASURE/TEMPO section 7 TIME CODE GENERATOR section

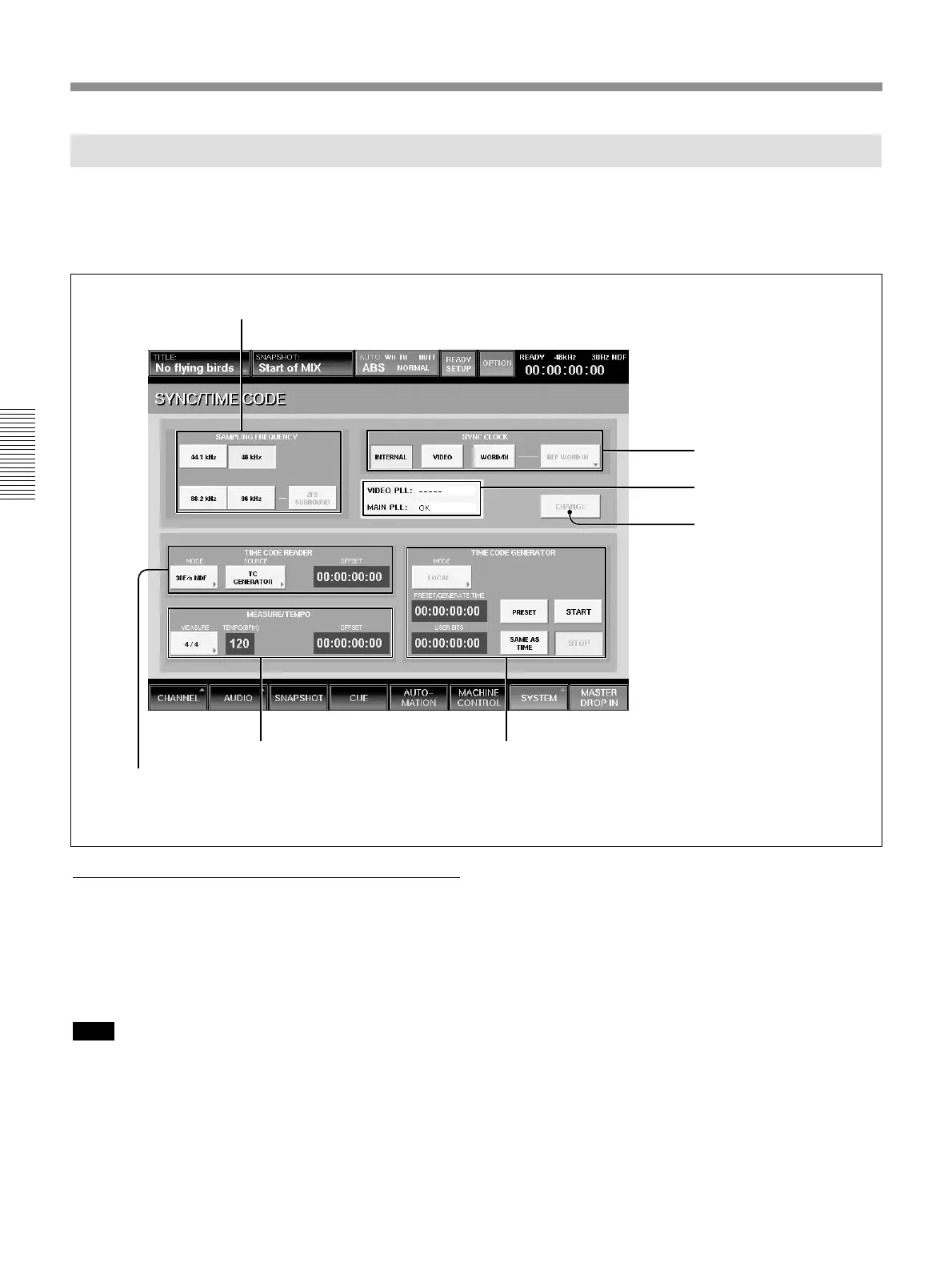

SYNC/TIME CODE Window
To open this window, touch the SYSTEM button on
the bottom menu bar, then select “TIME CODE” on
the menu.
This window allows you to control the settings of the
reference signal and the timecodes used for
automation.
Synchronous signal section
1 SAMPLING FREQUENCY buttons
Touch the button corresponding to the desired
sampling frequency from 44.1 kHz, 48 kHz, 88.2 kHz
or 96 kHz.
Note
When 88.2 kHz or 96 kHz is selected, the frequency
range expands to 40 kHz. However, the following
functions are limited. Buttons corresponding to the
limited functions are disabled.
• Input channel: The channel number is reduced from
48 to 24.
• AUX Send: The channel number is reduced from 8
to 2.
• AUX Return: The channel number is reduced from 8
to 4.
• MTR bus: The channel number is reduced from 8 to
4.
• Insertion send: The channel number is reduced from
8 to 4.
• Direct out: The channel number is reduced from 48
to 24.
• Optional boards: DMBK-R106 and DMBK-R107
cannot be used.
The DMBK-R104 cannot be used for a channel
where the sample rate converter is set to ON.
• The number of oscillator paths becomes one and the
same signal is output to both the L and R channels.
To Next Page
