Identifying the parts
For details, see the pages indicated in the
parentheses.
Illustrations are of DPP-FP70. The button
locations and names of the DPP-FP90 are
identical, although the LCD screen type is
different.

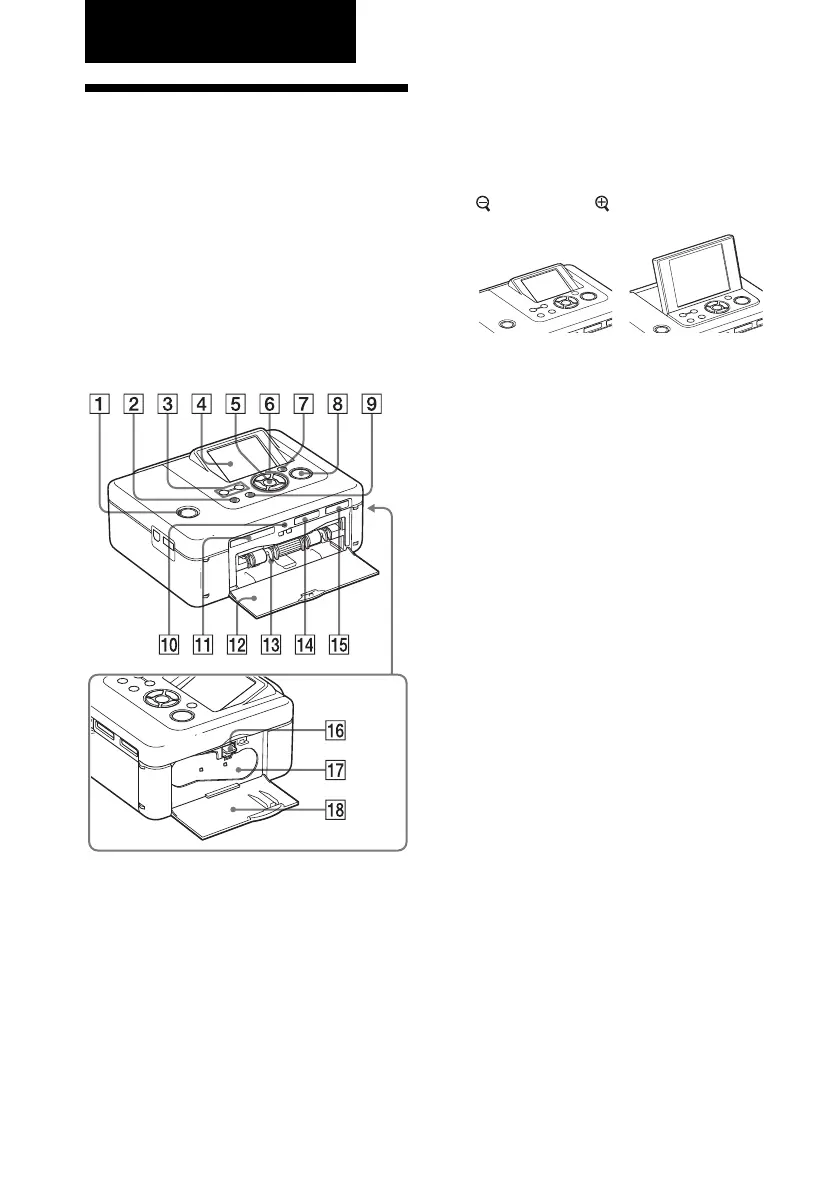

Printer front panel
1 1 (on/standby) switch/indicator
(.Read This First)
2 MENU button
3
(zoom out)/ (zoom in) buttons
(page 9)
4 LCD screen
2.5 type DPP-FP70 / 3.6 type DPP-FP90
5 ENTER button
6 Direction (f/F/g/G) buttons
7 AUTO TOUCH-UP button (page 10)
8 PRINT button/indicator
9 CANCEL button
0 Access indicator
qa CompactFlash card slot
(.Read This First) (page 74)
qs Paper tray compartment door
(.Read This First)
qd Paper tray compartment
(.Read This First)
qf SD CARD (SD/miniSD card) slot
(.Read This First) (page 74)
qg “Memory Stick PRO” (Standard/
Duo) slot (.Read This First)
(page 72)
Printer right side panel
qh Ink ribbon eject lever
(.Read This First)
qj Ink ribbon
(.Read This First)
qk Ink ribbon compartment door
(.Read This First)
