Sony DSC-1024HD - Page 23

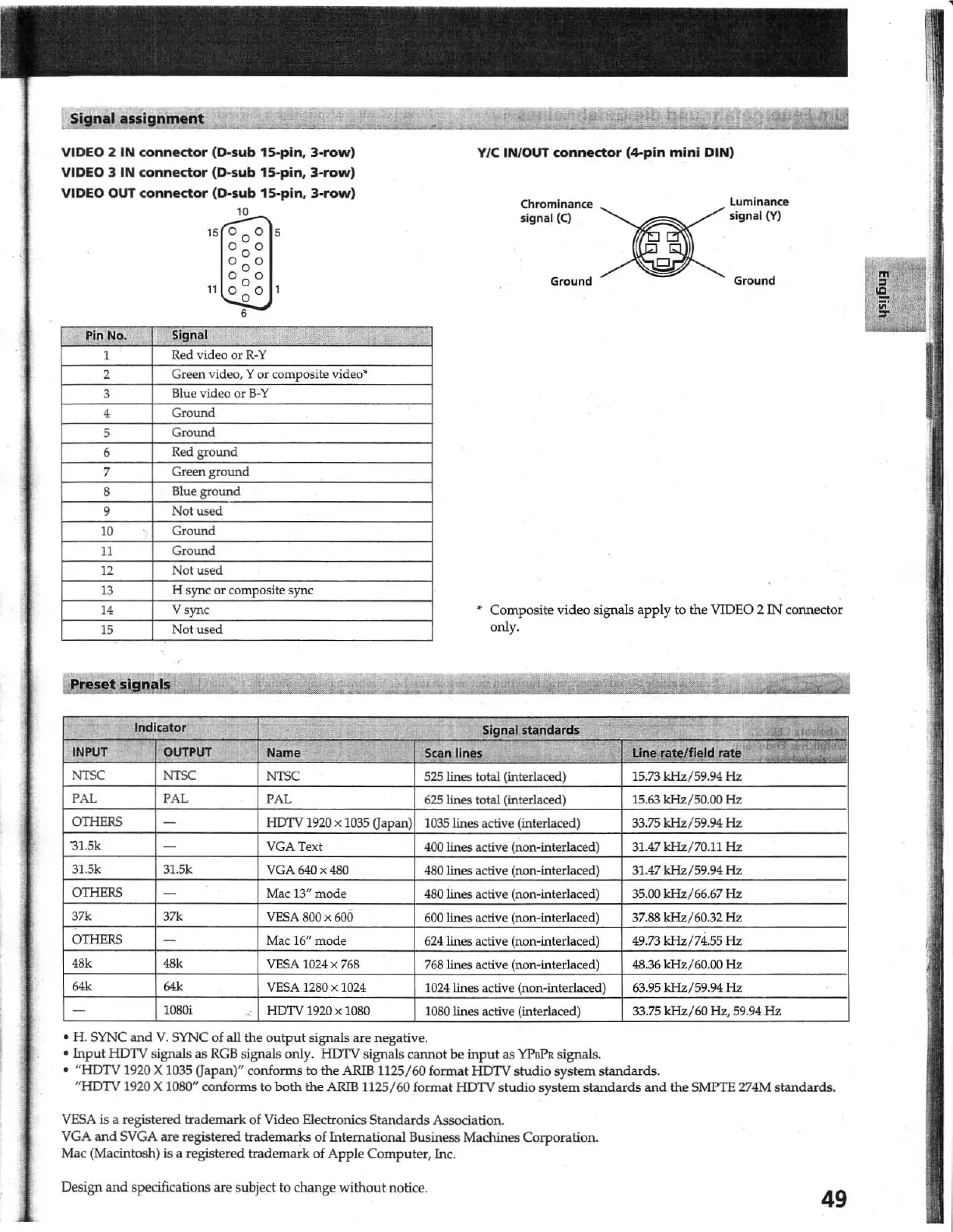

VIOEO 2 IN con n ector (O-sub 1S- pin. 3- row )
VIDEO 3 IN connector (D-sub 1S-pin, 3-row)
VIDEO OUT connector (O-sub 1S-pin . 3 -row)
10
15
000
5
000
000
11
000
000
6
Pin No .
Signal
1 Red video or R· Y
2
Green video, Y or composite vid eo*
3
Blue video or B-- Y
4
Ground
5
Ground
6
Red ground
7 Green ground
8
Blue ground
9
No t used
10
.
Ground
11 Ground
12
Not used
13
H sync or composite sync
VIC IN/OUT connector (4-pin mini DIN)
Chrominance Luminance
si gnal (0 :e: signal (V)
Ground Gro und
14 V sync
15
Not used
.. Compos ite v id eo si gnals a ppl y to the VIDEO 2W connector
only.
Indicator
Signal standards
INPUT OUTPUT
Name
Scan lines Une rateJfleld ra ~
NTSC NTSC
NTSC 525 lines total (interlaced) 15.73 kHz / 59.94 Hz
PAL PAL
PAL 625 lines total (interlaced) 15.63 kHz /SO. DO Hz
OTHERS
HDTV 1920 x 1035 O apan ) 1035 lines active (interlaced) 33.75 kHz / 59.94 Hz
"31.5k
VGA Text
400 lines active (non·interlaced)
31.47 kHz / 70. 11 Hz
31.5k 31.5k
VGA640x4BO
480 lines active (non·interlac ed. ) 31.47 kHz / 59 .94 Hz
OTHERS
Mac 13" mode
480 lines active ( non·in terlaced.) 35.00 kHz / 66.67 Hz
37k
37k
VESA 800 x 600
600 lines active (non·interl aced.) 37 .88 kHz/60 .32 Hz
OTHERS
Mac 16" mode
624 lines active (non·interlaced.) 49. 73 kHz/74.55 Hz
48k
48k
VESA 1024 x 768 768 lines active (non·interlaced) 48. 36 kHz /60 . 00 Hz
64k 64k
VESA 1280 x 1024
1024 lines active (non·interlaced) 63.95 kHz /5 9. 94 Hz
l080i HDTV 1920 x 1080
l OBO lines active (interlaced.)
33.75 kHz / 60 Hz, 59.94 Hz
• H SYNC and V. SYNC of all the ou tput signals are negative.
• Input HDTV signals as RGB si gnals only. HDTV signals c annot be input as YPBPR signals.
• "HDTV 1920 X 1035 Oapan)" conforms to the ARIB 1125/ 60 format HDTV studio system standards.
"HDTV 1920 X 1080" c onforms to both the ARm 1125/ 60 fonna t HDTV studio system standards and the SMPTE 274M standards.
VESA is a registered trademark of V ideo Electronics Standards Associ ation .
VGA an d SVGA are r egistered trademarks of International Business Machines Corpo ration.
Mac (Macint
osh) is a registered trademark of App le Co mp uter, Inc.
Design
and specifications are subject to change without notice.
49
