Sony DSC-1024HD - Specifications

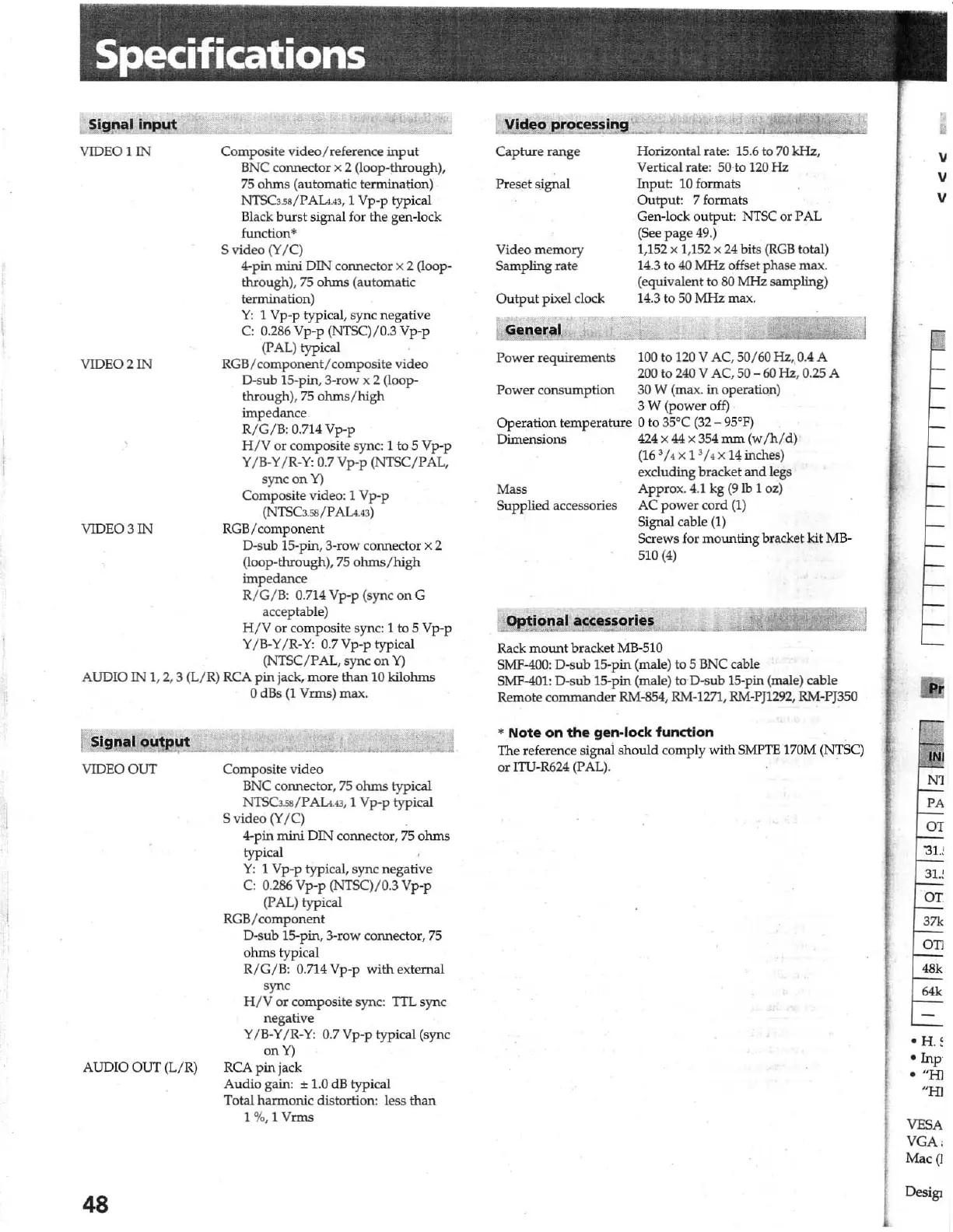

Specifications
~nal input
VIDEO 1 IN Composite video/ reference input
B Ne co nnector x 2 (loop- through) ,
75 ohms (a utomati c tennination )
N1SC 358/ PAuA 3, 1 Vp-p typical
Bla ck bur st s ign al for the gen -Iock
function'"
5 video (Y /C)
4- pin mini D IN co nn ect or x 2 (loop-
through ), 75 ohms (a ut omatic
termination)
Y: 1 Vp-p typical, sync negative
C 0.286 Vp-p (NTSC)/0.3 Vp -p
(PAL) typical
VI DEO 2 IN RGB /co mp onent/compos ite video
D-s ub I 5-pin, 3-r ow x 2 (l oo p-
through ), 75 ohms / high
impedance
R/ G/B, 0.714 Vp-p
H /V or co mpo site sync: 1 to 5 Vp-p
Y /B-Y / R-Y, 0.7 Vp -p (NTSC/ PAL ,
sync on Y)
Compos ite video: 1 Vp -p
(N TSC3.ss/P AL4.43)
VIDEO 3 IN RGB /co mponent
D-sub IS -pin , 3 -r ow co nnector x 2
Ooop-through), 75 ohms/ hi gh
impedance
R/G/B, 0.714 Vp-p ( sync on G
accepta ble )
H/V or composite sync: 1 to 5 Vp -p
Y/ B-Y/R-Y,O.7Vp-ptypica l
(NTSC/PAL, sync on Y)
AUDIO IN 1, 2 ,3 (L/ R) RCA pin jack, more than 10 kilohms
ut
VIDEO OUT
AUDIO OUT (L/ R)
48
o dBs (1 V nns ) max .
Co mp osite video
BNe connector, 75 ohms typical
NTSC358/PAL..,3, 1 Vp-p typ ical
5 v id eo (Y /C)
4-pin mini DIN connector, 75 ohms
typica l
Y: 1 Vp-p typica l, sync n eg ative
C, 0.286 Vp -p (NTSC)/ 0.3 Vp-p
(PAL) typ ical
RGB /co mponent
D-sub IS-pin , 3-r ow co nnector, 75
ohms typical
R/G/B: 0.714 Vp -p withextemal
sync
H /V or composite sync: TTL sync
negative
Y / B-Y /R - Y, 0.7 Vp -p typ ical (s ync
on Y)
RCA pin jack
Audio gain: ± 1.0 dB typical
Total harmonic distortion: l ess than
1 %, 1 Vrms
Video p'rocessin
Capture range
Preset signal
Video memo ry
Sampling rat e
Output pixel clock
General
Horiz o ntal rat e: 15.6 to 70 kHz,
Vertical rat e: 50 to 120 Hz
Input : 10 fonnats
Output : 7 {onnats
Gen-Iock o utput: NTSC or PAL
(See page 49.)
1,152 x 1,152 x 24 bits (RGB tota l)
14.3
to 40 MHz off se t phase ma x.
(equivalent to 80 MHz sampling)
14.3 to 50 MHz max.
Powe r requirem ents 100 to 120 V AC, 50 /60 Hz "0 .4 A
200 to 240 V AC, SO - 60 Hz, 0.25 A
Power c onsumption 30 W (max . in operation)
3 W (p owe r off)
Ope rati on t empe rature 0 to 35°C (32 - 95
C
F)
Dimensions 424 x 44 x 354 mm (w/h/d)
Mass
Supp lied accessories
(16
3
/ 4
x 1
3
/4 X 14 inches)
excluding bracket and legs
App rox. 4.1 kg (91b 1 0.)
AC power co rd (1)
Signal cable (1)
Scr ews for mOWlting bracket kit MB-
510 (4)
9Ptional accessories
Rack mOWlt bracket MB-S10
SMF-400:
D-sub IS-pin ( male ) to 5 B NC cable
SMF-401: D-sub IS-pin ( mal e) to D-sub IS-pin ( male ) cab le
Remote comman der RM - 854, RM -12 71, RM-PJ I2 92, RM-PJ350
'" Note on the gen-Iock function
The reference si gna l sho uld comply with SMPTE 170M (NTSC)
or ITU-R624 (PAL).
•
