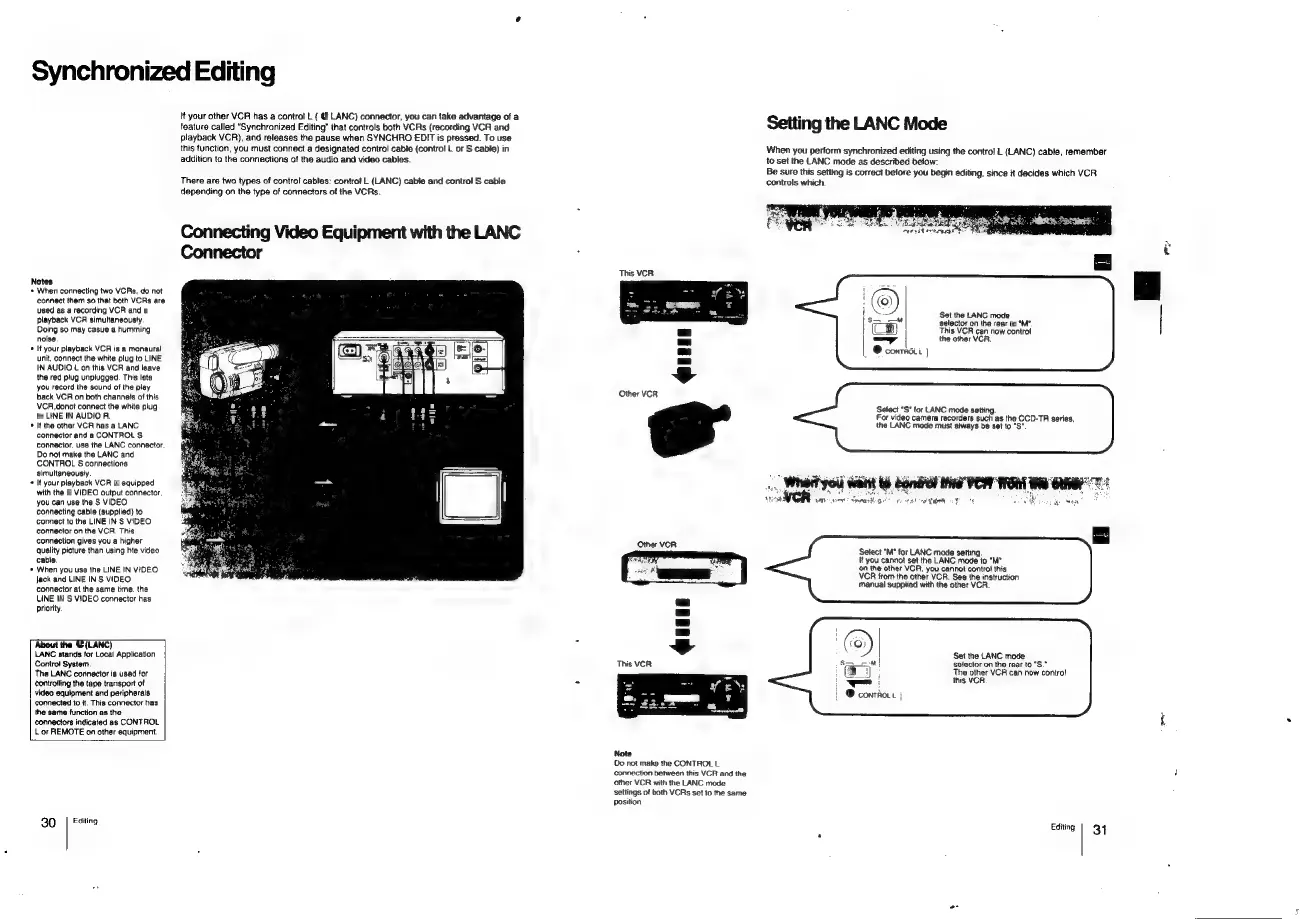

Synchronized Editing
Notes
+ When connecting two VCRs, do not
connect them so that both VCRs are
used as a recording VCR and a
playback VCA simultaneousty
Doing so may casue a humming
noise,
* If your playback VCR is a monaural
unit, connect the white plug to LINE
IN AUDIO L on this VCR and leave
the red plug unplugged. This lets
you record the sound of the play
back VCR on both channels of this
VCR, donot connect the white plug
to LINE IN AUDIO R.
+ It the other VCR has a LANC.
connector and a CONTROL S
connector, use the LANC connector.
Do not make the LANC and
CONTROL S connections
simultaneously.
+ It your playback VCR is equipped
with the S VIDEO output connector,
you can use the S VIDEO
connecting cable (supplied) to
connect to the LINE IN S VIDEO
connector on the VCR. This
connection gives you a higher
quality picture than using hte video
cable,
* When you use the LINE IN VIDEO
Jack and LINE IN S VIDEO:
connector al the same time, the
LINE IN S VIDEO connector has
priority
‘About the € (LANC)
LANC stands for Local Application
Contro! System.
The LANC connector ig used for
Controlling the tape transport of
video equipment and peripherals
connected to it. This connector has
the same function as the
connectors indicated as CONTROL
Lor REMOTE on other equipment.
30 | Editing
tt your other VCR has a control L ( @ LANC) connector, you can take advantage of a
feature called “Synchronized Editing” that controls both VCRs (recording VCR and
playback VCR), and releases the pause when SYNCHRO EDIT is pressed. To use
this function, you must connect a designated control cabie (control L or S cable) in
addition to the connections of the audio and video cables.
There are two types of control cables: control L (LANC) cable and control S cable
depending on the type of connectors of the VCRs.
Connecting Video Equipment with the LANC
Connector
Setting the LANC Mode
When you perform synchronized editing using the control L (LANC) cable, remember
to set the LANC mode as described below:
Be sure this setting is correct before you begin editing, since it decides which VCR
controls which.
This VCR
Set the LANG mode
selector on the rear to *M*
{C) This VCR can now contro!
—y the other VCR.
Other VCR
Select “S* for LANC mode setting.
For video camera recorders such as the CCD-TR series,
the LANC mode must always be set to "S".
Select "M" for LANC mode setting
If you cannot set the LANC mode to "M*
on the other VCR, you cannot controt this
VGR from the other VCR. See the instruction
manual supplied with the other VCR.
Set the LANC mode
selector on the rear to “S.”
: The other VCR can now contro!
— this VCR
® controce |
Do not make the CONTROL L
Connection between this VCR and the
other VCR with the LANG mode
settings of both VCRs set to the same
position
Editing 31
