Sony FMP-X10 - Connectors; Accessories and Packaging; Miscellaneous; Remote Commander

FMP-X10 16
SECTION 2 - DISASSEMBLY/PART NUMBER INFORMATION

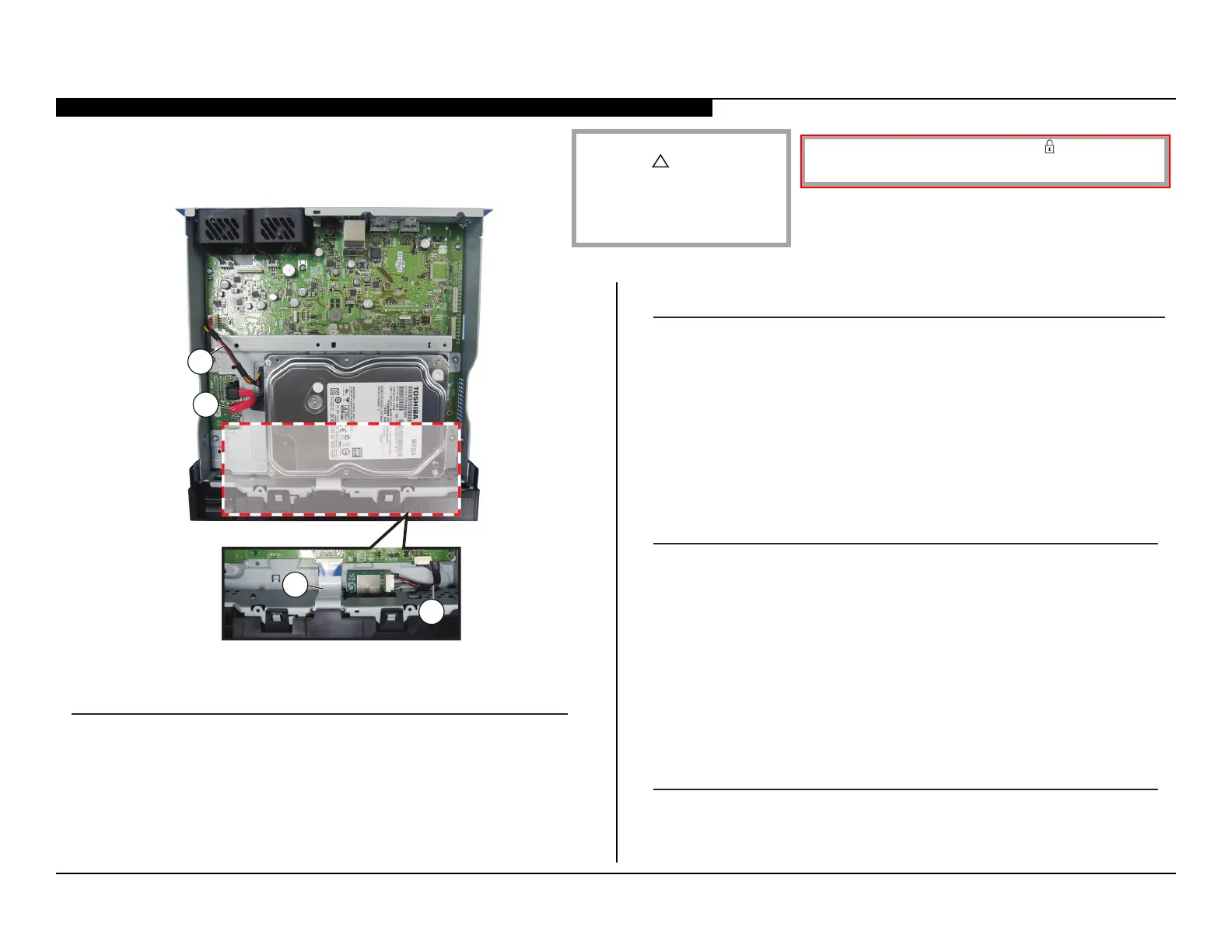

CONNECTORS
51 1-969-861-11 HARNESS (DH-1005)
52 1-970-305-11 HARNESS (SHS-1001)
53 1-848-425-21 FLEXIBLE FLAT CABLE (FCS-1001)
54 1-970-303-11 HARNESS (SW-1018)
REF. NO. PART NO. DESCRIPTION
NOTE: The components identied by a red outline and a mark contain condential
information. Specic instructions must be adhered to whenever these components are
repaired and/or replaced. (See Appendix A)
51
52
53
54
ACCESSORIES AND PACKAGING
PART NO. DESCRIPTION
1-834-169-21 CONNECTION CORD (HDMI CABLE)
4-540-860-11 START GUIDE
4-537-237-01 ACCESSORY BOX (B)
4-536-026-01 INDIVIDUAL CARTON
4-536-023-02 PULP CUSHION L
4-536-024-02 PULP CUSHION R
MISCELLANEOUS
PART NO. DESCRIPTION
3-087-319-01 CUSHION, FOOT
4-539-463-01 CUSHION, LED (REC) (FOR PF-1001 BOARD)
ORDER THIS PART WHEN REPLACING THE PF-1001 BOARD.
4-542-943-01 CUSHION,FAN
4-542-041-01 GASKET 15X15 (15)-D, SOFT (FOR SHIELD TOP)
3-279-801-51 SHEET, RADIATION (FOR MAIN CHASSIS)
ORDER THIS PART WHEN REPLACING THE SAL-1001 BOARD.
REMOTE COMMANDER
PART NO. DESCRIPTION
1-492-885-11 REMOTE COMMANDER (RMT-D304)
NOTE: The components identied by
shading and
!
or dotted Line with
mark on the schematic diagrams and in
the part list are critical to safe operation.
Replace these components with SONY parts
whose part numbers appear as shown in this
manual or in supplements published by SONY.
