Sony FMP-X10 - Power and Control Block Diagram

FMP-X10 8
SECTION 1 - TROUBLESHOOTING
CN1004 CN4903
GND_D 40 1 GND_D
STB5.8V 39 2 STB5.8V
STB5.8V 38 3 STB5.8V
GND_D 37 4 GND_D
POWER_KEY 36 5 POWER_KEY
SKP_SW 35 6 SKP_SW
LED_PWM_POWER 34 7 LED_PWM_POWER
LED_PWM_B 33 8 LED_PWM_B
LED_PWM_G 32 9 LED_PWM_G
GND_D 31 10 GND_D
LED_PWM_MIXED 30 11 LED_PWM_MIXED
GND_D 29 12 GND_D
GND_D 28 13 GND_D
GND_D 27 14 GND_D
SIRCS 26 15 SIRCS
GND_D 25 16 GND_D
LED_DIM 24 17 LED_DIM
LED_REC 23 18 LED_REC
LED_TREC 22 19 LED_TREC
LED_HDD_G 21 20 LED_HDD_G
LED_HDD_W 20 21 LED_HDD_W
LED_HDD_R 19 22 LED_HDD_R
LED_NET_G 18 23 LED_NET_G
LED_NET_W 17 24 LED_NET_W
LED_NET_R 16 25 LED_NET_R
GND_D 15 26 GND_D
RESET_KEY 14 27 RESET_KEY
CONNCT_KEY 13 28 CONNCT_KEY
GND_D 12 29 GND_D
GND_D 11 30 GND_D
USB_DP 10 31 USB_DP
USB_DM 9 32 USB_DM
GND_D 8 33 GND_D
VCC5V 7 34 VCC5V
VCC5V 6 35 VCC5V
VCC5V 5 36 VCC5V
GND_D 4 37 GND_D
STB3.3V 3 38 STB3.3V
STB3.3V 2 39 STB3.3V
GND_D 1 40 GND_D
PF-1001 Board
SA-1001 Board
CN6802
GND 1 1 GND
WoW 2 2 WoW
WLAN_RESET 3 3 WLAN_RESET
GND 4 4 GND
USB_WLAN_DM 5 5 USB_WLAN_DM
USB_WLAN_DP 6 6 USB_WLAN_DP
WLAN_POWER 7 7 WLAN_POWER
WLAN_POWER 8 8 WLAN_POWER
GND 9 9 GND
GND 10 10 GND
CN4101
GND 1
HT+0 2
HT-0 3
GND 4
HR-0 5
HR+0 6
GND 7
CN9702
12V_HDD 1
GND 2
GND 3
5V_HDD 4
CN304
GND 1
PWM 2
12V 3
CN302
GND 1
PWM 2
12V 3
HDD
WLAN module
FAN1
FAN2

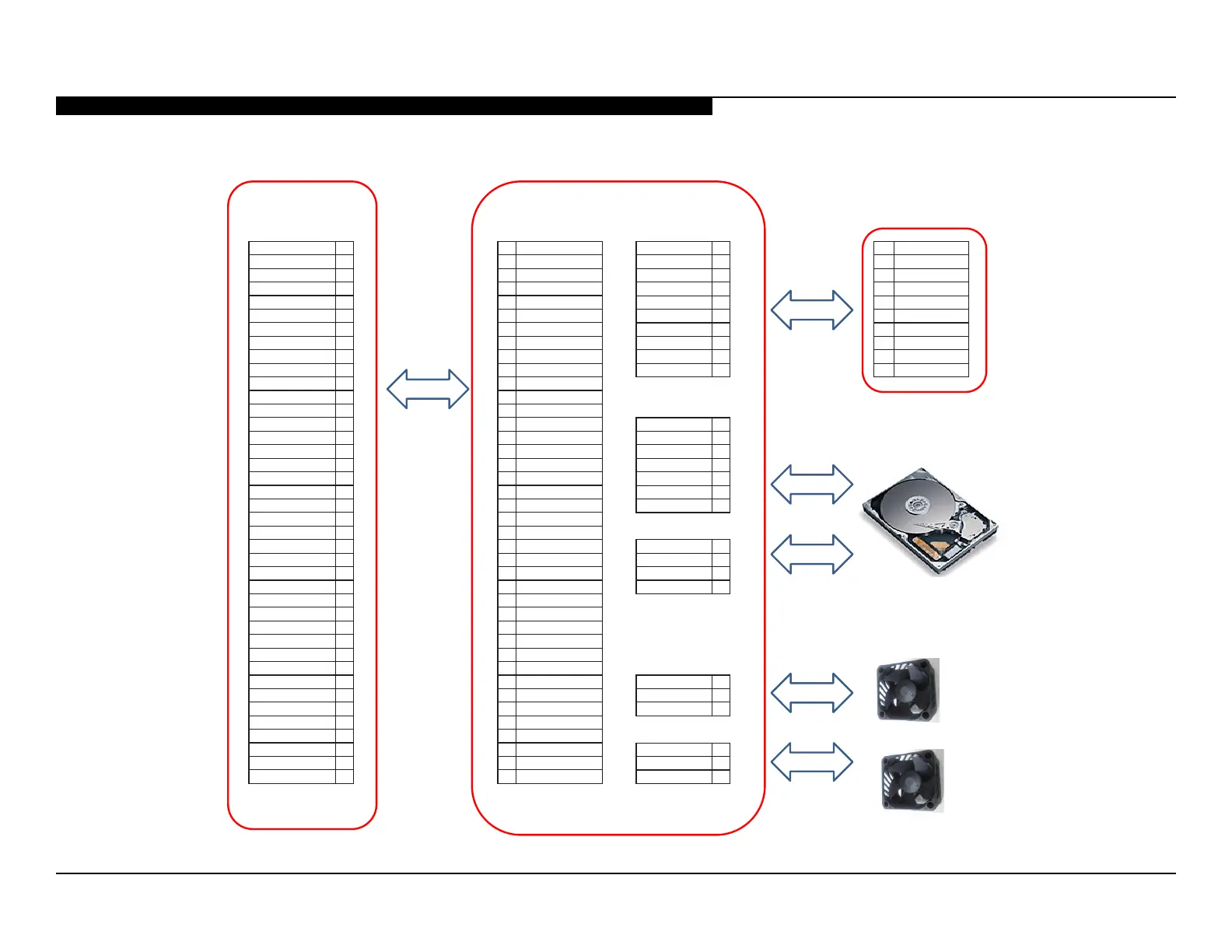

POWER AND CONTROL BLOCK DIAGRAM
