FMP-X10 32
SECTION 4 - DIAGRAMS
CHECKING THE DIGITAL CIRCUIT (12V) VOLTAGE

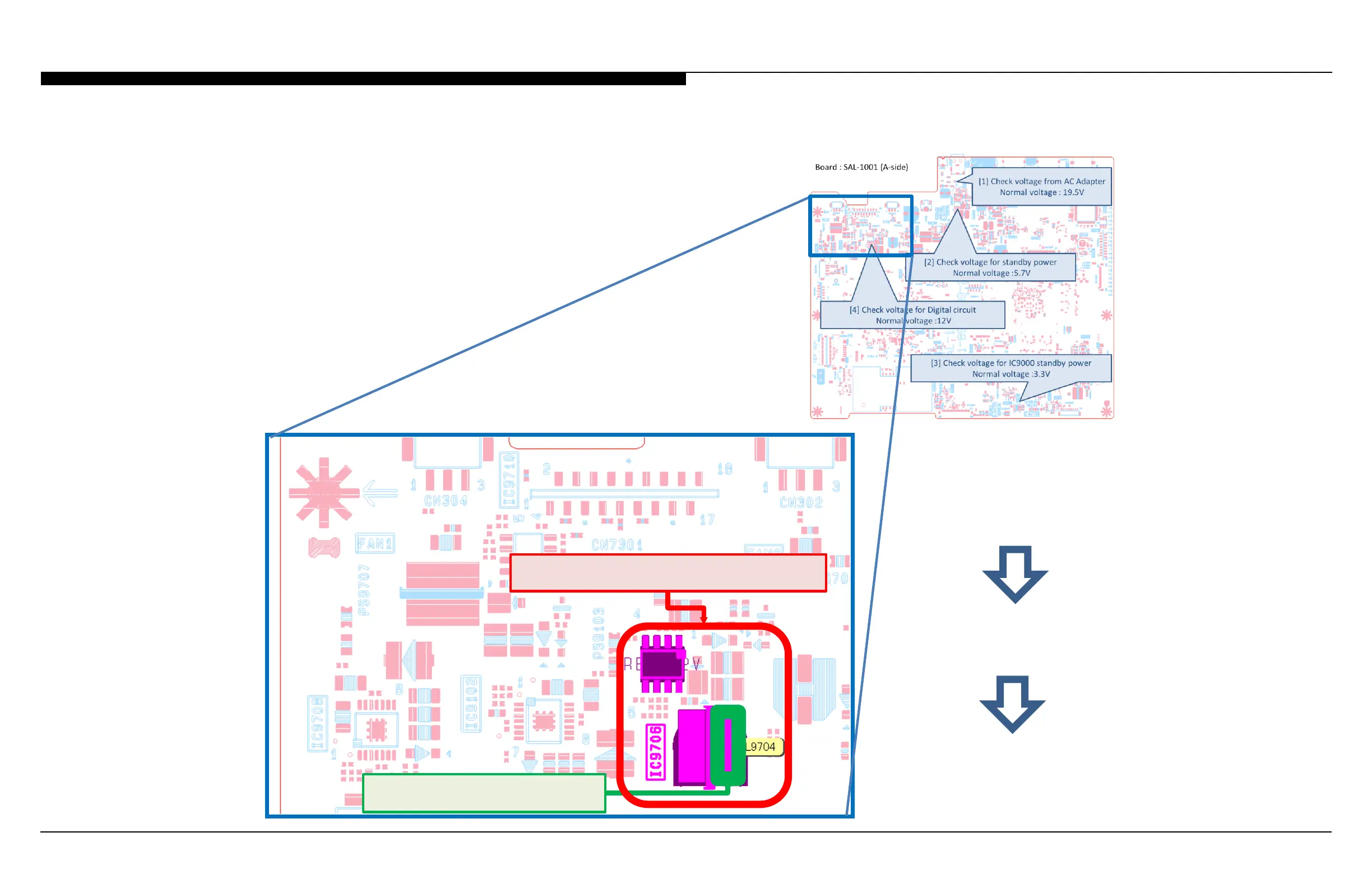

Check point (Around IC9706)
Check Voltage (12V)
19.5V
(From AC Adapter)
12V
(From AC Adapter)
IC9706 & L9704
