15
HCD-AZ2D/AZ5D

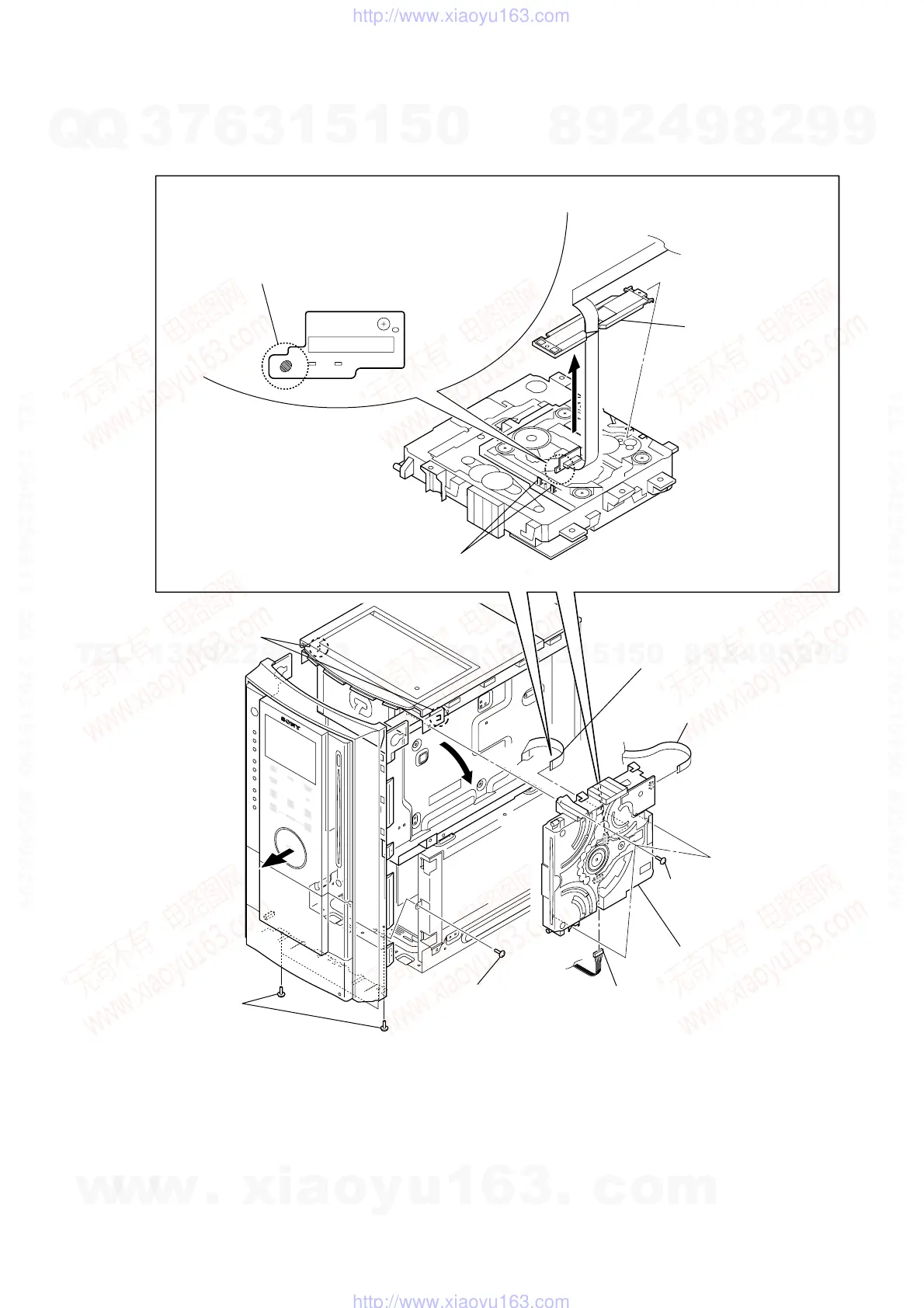

3-8. DVD MECHANISM DECK (CDM86-DVBU101)
1
three screws
(BVTP 3
×
8)
2
two claws
3
5
three screws
(BVTP 3
×
8)
1
screw
(BVTP 3
×
8)
NOTE WHEN REMOVING DVD MECHANISM DECK (CDM86-DVBU101)
Some Screws on the CDM86-DVBU101 are hidden by the Front Panel,
and accordingly remove four Screws (BVTP3x8) on the Front Panel and
shift the Front Panel toward the front, and then remove the Screws on the CDM86-DVBU101.
CAUTION
4
wire (flat type) (7 core)
(CN001)
6
q;
wire (flat type) (24 core)
8
Lift up the FFC holder.
7
two claws
9
Be sure to execute a solder bridge as a measure against
static electricity when removing the OP block (DVBU101).
(Otherwise, the OP block will be destroyed.)
qa
connector
qs
DVD mechanism deck
(CDM86-DVBU101)
