82
HCD-AZ2D/AZ5D

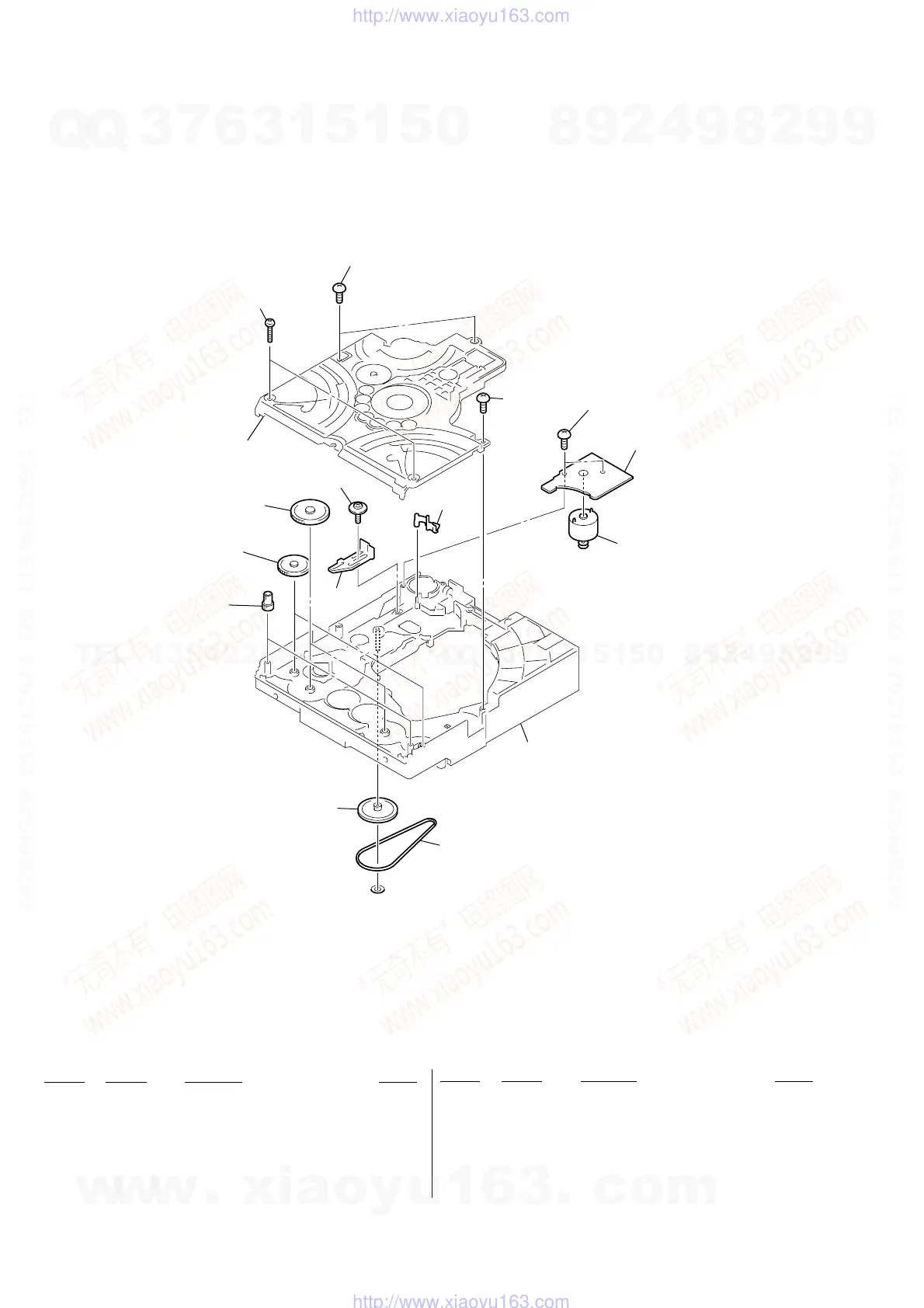

8-8. DVD MECHANISM DECK SECTION-2
(CDM86-DVBU101)
DVD mechanism section-3
410
402
410
410
409
408
401
407
406
405
404
403
DVD mechanism section-4
not supplied
(MS-214 board)
M001
#6
401 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
402 2-023-648-01 TAPPING +B 2X10
403 4-245-653-01 BELT (MOT)
404 4-245-662-02 PULLEY (GEAR)
405 4-245-646-01 GEAR (IDL-F)
406 4-245-644-01 GEAR (IDL-D)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
407 4-245-645-01 GEAR (IDL-E)
408 4-246-203-01 LEVER (RELEASE)
409 4-245-630-01 LEVER (SW)
410 2-023-068-01 TAPPING +B 2.6X8
M001 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING)
#6 7-623-921-01 WASHER 1.7, NYLON
