HCD-AZ2D/AZ5D

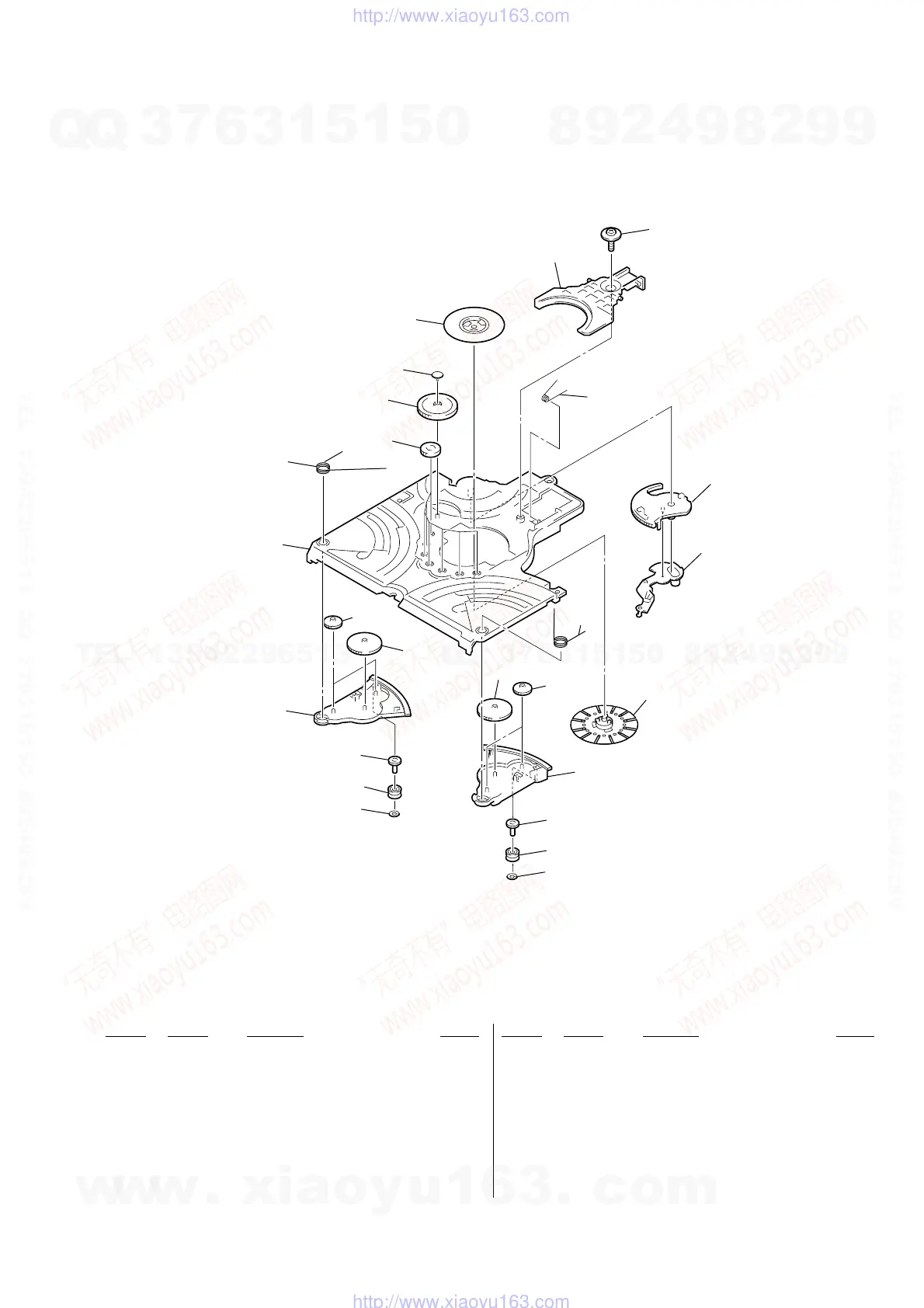

8-9. DVD MECHANISM DECK SECTION-3
(CDM86-DVBU101)
451
451
452
452
453
454
457
458
459
460
461
not supplied
453
463
464
467
not supplied
466
not supplied
455
465
455
456
456
462
451 4-245-627-01 WASHER (6-2.7-0.4)
452 4-245-637-11 ROLLER, RUBBER
453 4-245-649-01 GEAR (IDL-I)
454 4-245-657-11 LEVER (LOADING-R)
455 4-245-647-01 GEAR (IDL-G)
456 4-245-648-01 GEAR (IDL-H)
457 4-245-655-01 CHASSIS (TOP)
458 4-245-631-11 SPT-T (LOADING-R)
459 4-245-650-01 GEAR (IDL-J)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
460 4-245-651-11 GEAR (IDL-L)
461 4-245-640-01 GEAR (CAP)
462 4-245-632-11 SPR-T (LOADING-L)
463 4-245-656-11 LEVER (LOADING-L)
464 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
465 4-245-636-01 SPR-T CL DOWN
466 4-245-658-11 LEVER (DISC STOP)
467 4-245-659-11 LEVER (DISC SENSOR)
