HCD-AZ2D/AZ5D

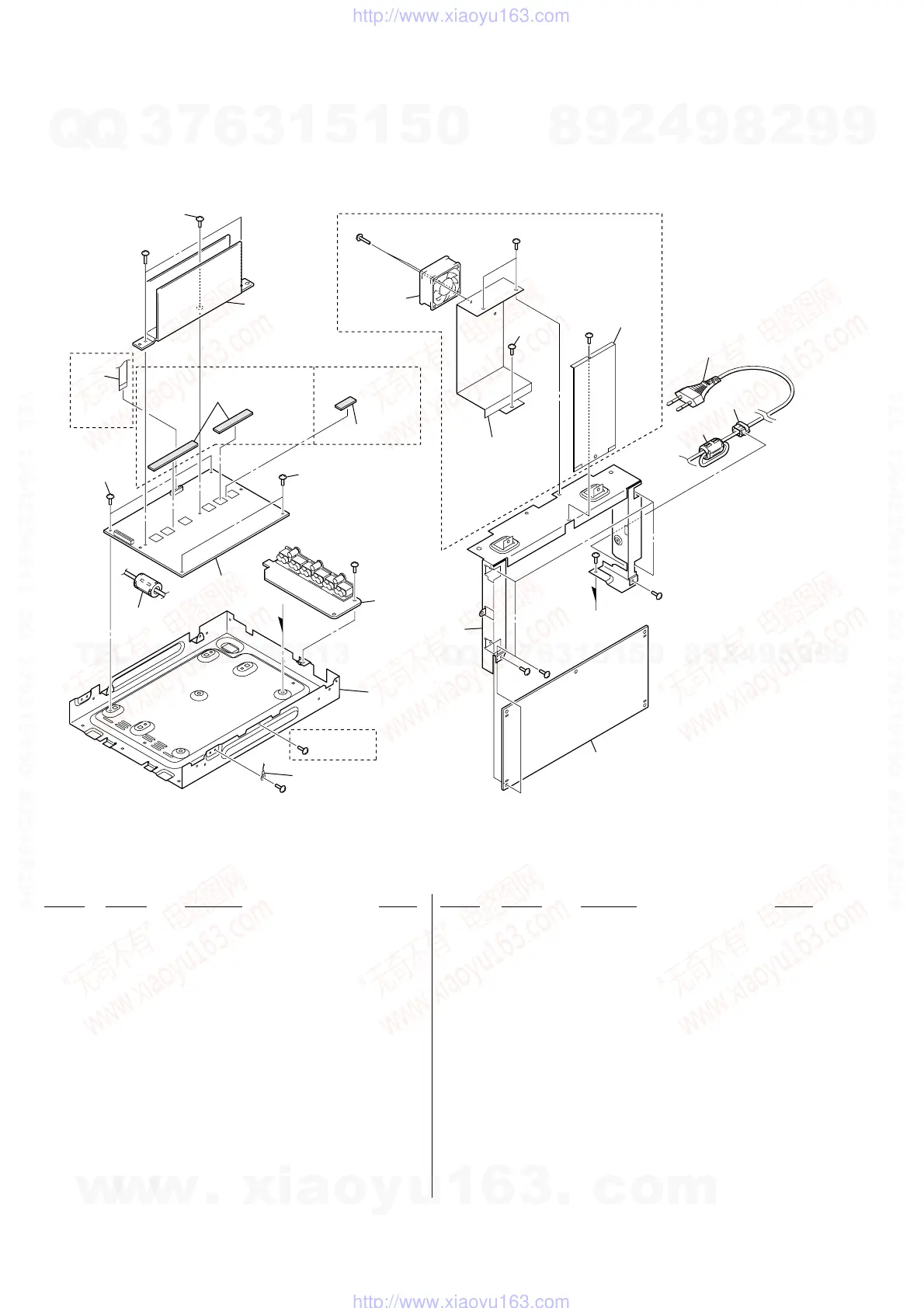

8-6. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251
258
252
252
252
(AZ5D)
(AZ5D)
(AZ5D)
(AZ5D)
(AZ2D)
252
253
254
255
256
257
not supplied
#5
#1
#1
#1
#1
#1
#1
#1
M902
#4
#1
#1
not supplied
not supplied
not supplied
(SP OUT board)
not supplied
not supplied
not
supplied
not supplied
not supplied
251 A-1091-194-A S-MASTER BOARD, COMPLETE (AZ2D)
251 A-1091-195-A S-MASTER BOARD, COMPLETE
(AZ5D: E2, E3, E12, E15, EA, SP, MY, AUS)
251 A-1114-873-A S-MASTER BOARD, COMPLETE (AZ5D: TH)
252 3-077-331-21 +BV 3 (3-CR)
253 1-828-947-11 WIRE (FLAT TYPE) (7 CORE) (AZ5D)
0254 1-769-079-23 CORD, POWER (AZ2D: KR)
0254 1-777-071-53 CORD, POWER (AZ2D: E12, E13, EA, SP, MY,
PH/AZ5D: E12, EA, SP, MY)
0254 1-783-203-13 CORD, POWER (AZ2D: AUS/AZ5D: AUS)
0254 1-824-642-11 CORD, POWER (WITH CONNECTOR)
(AZ5D: TH)
0254 1-827-226-11 CORD, POWER
(AZ2D: E2, E3, E15/AZ5D: E2, E3, E15)
255 3-703-244-00 BUSHING (2104), CORD
(EXCEPT AZ2D: E2, E3, E15/AZ5D: E2, E3, E15)
* 255 3-703-571-12 BUSHING (S) (4516), CORD
(AZ2D: E2, E3, E15/AZ5D: E2, E3, E15)
256 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
0257 1-468-896-11 REGULATOR, SWITCHING
(AZ2D: E12, KR, AUS)
0257 1-468-897-11 REGULATOR, SWITCHING
(AZ2D: E2, E3, E13, E15, EA, SP, MY, PH)
0257 1-468-898-11 REGULATOR, SWITCHING
(AZ5D: E12, TH, AUS)
0257 1-468-899-11 REGULATOR, SWITCHING
(AZ5D: E2, E3, E15, EA, SP, MY)
258 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
M902 1-787-331-21 FAN, D.C. (AZ5D)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
