HCD-AZ2D/AZ5D

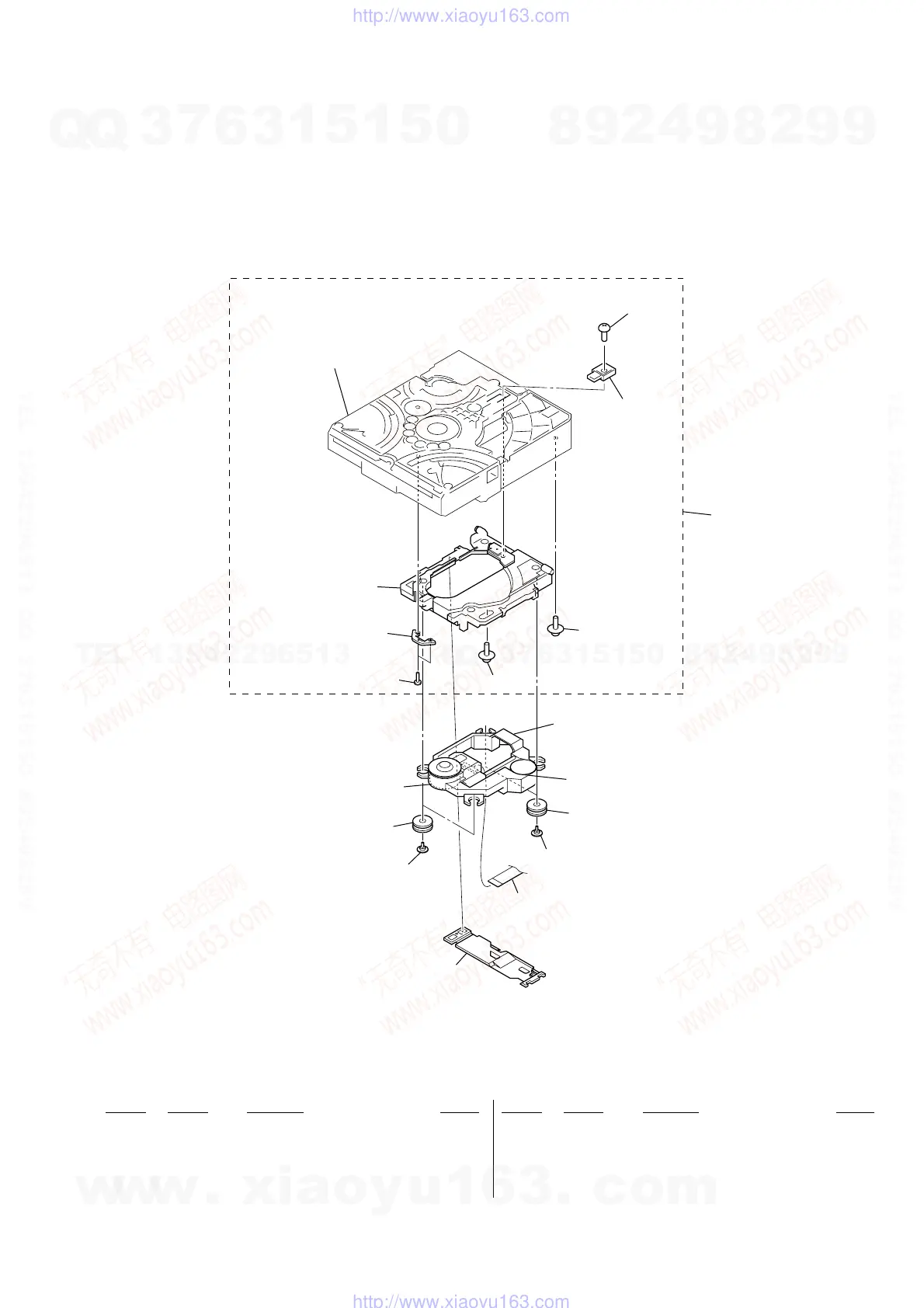

8-7. DVD MECHANISM DECK SECTION-1
(CDM86-DVBU101)
353
356
353
359
352
354
357
(including sled motor, spindle motor
354
352
358
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
not supplied
DVD mechanism deck section-2
355
351
351 4-245-639-01 LEVER (CL UP2)
352 3-087-599-01 INSULATOR SCREW
353 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
354 2-634-618-01 INSULATOR
355 2-023-068-01 TAPPING +B 2.6X8
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
356 A-1114-646-A MD (AU) ASSY
0357 8-820-291-02 OPTICAL PICK-UP BLOCK KHM-310CAB/C2RP
(Including sled motor, spindle motor)
358 1-828-771-11 WIRE (FLAT TYPE) (24 CORE)
359 2-023-066-01 TAPPING +B 2X6
