HCD-AZ2D/AZ5D

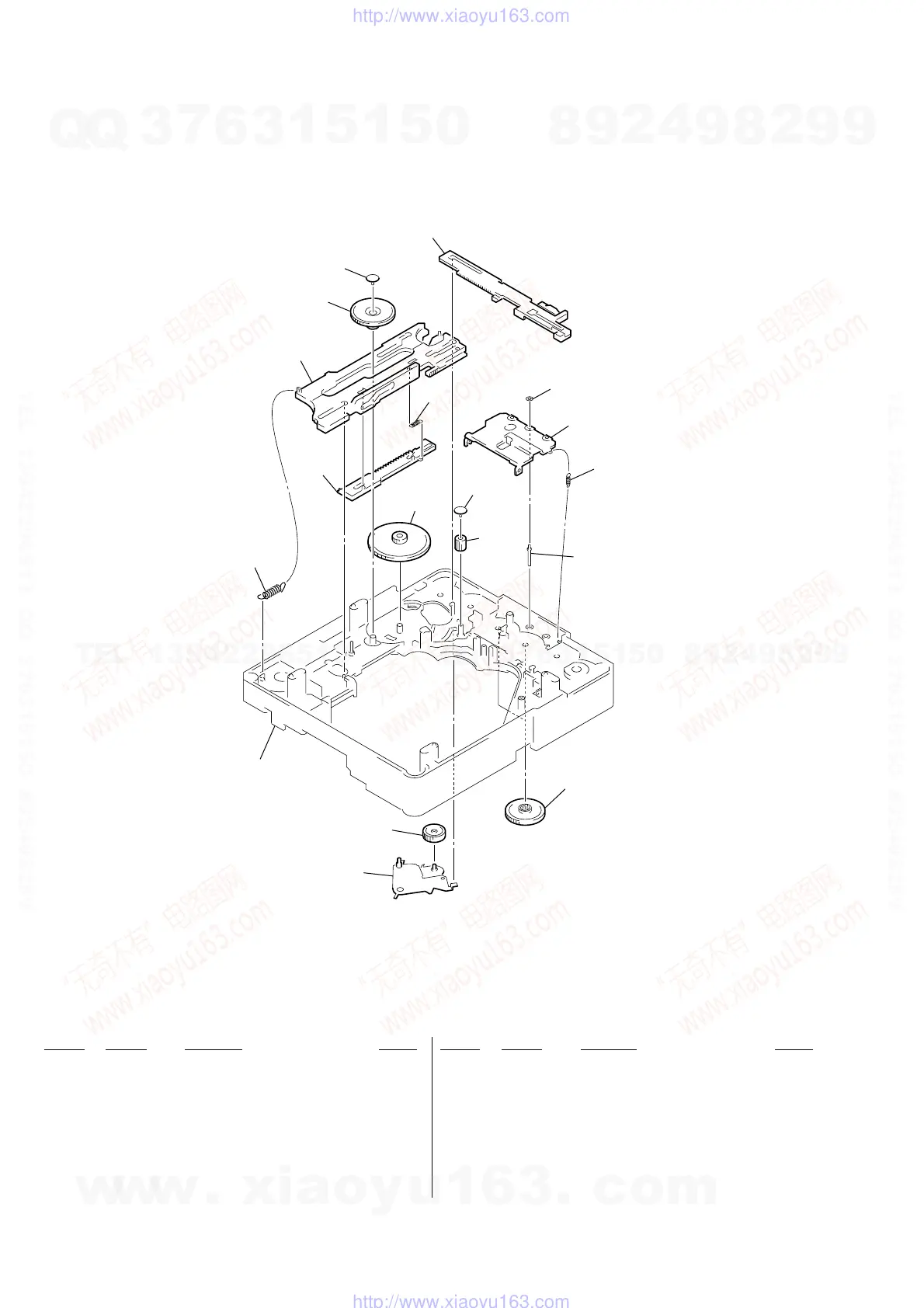

8-10. DVD MECHANISM DECK SECTION-4
(CDM86-DVBU101)
not supplie
not supplied
501
502
515
505
503
507
508
509
504
506
511
512
513
514
509
510
501 4-245-643-01 GEAR (IDL-C)
502 X-4955-483-1 LEVER (GEAR LOADING) ASSY
503 2-515-536-01 SPRING (DIR), TENSION COIL
504 4-245-642-01 GEAR (IDL-B)
505 4-245-814-01 LEVER (DIR FIRST)
506 2-515-534-01 SPRING (DIR BACK), TENSION COIL
507 4-245-660-11 LEVER (DIR)
508 4-245-641-01 GEAR (IDL-A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
509 4-245-640-01 GEAR (CAP)
510 4-245-628-01 LEVER (BU LOCK)
511 4-248-206-01 WASHER (3-1-0.4)
512 4-245-624-01 LEVER, CLOSE
513 4-245-635-01 SPR-E LEVER CLOSE
514 4-245-629-01 GEAR (BU LOCK)
515 4-245-644-01 GEAR (IDL-D)
