Sony HCD-AZ2D - 3-9. OPTICAL PICK-UP BLOCK (KHM-310 CAB)

16
HCD-AZ2D/AZ5D

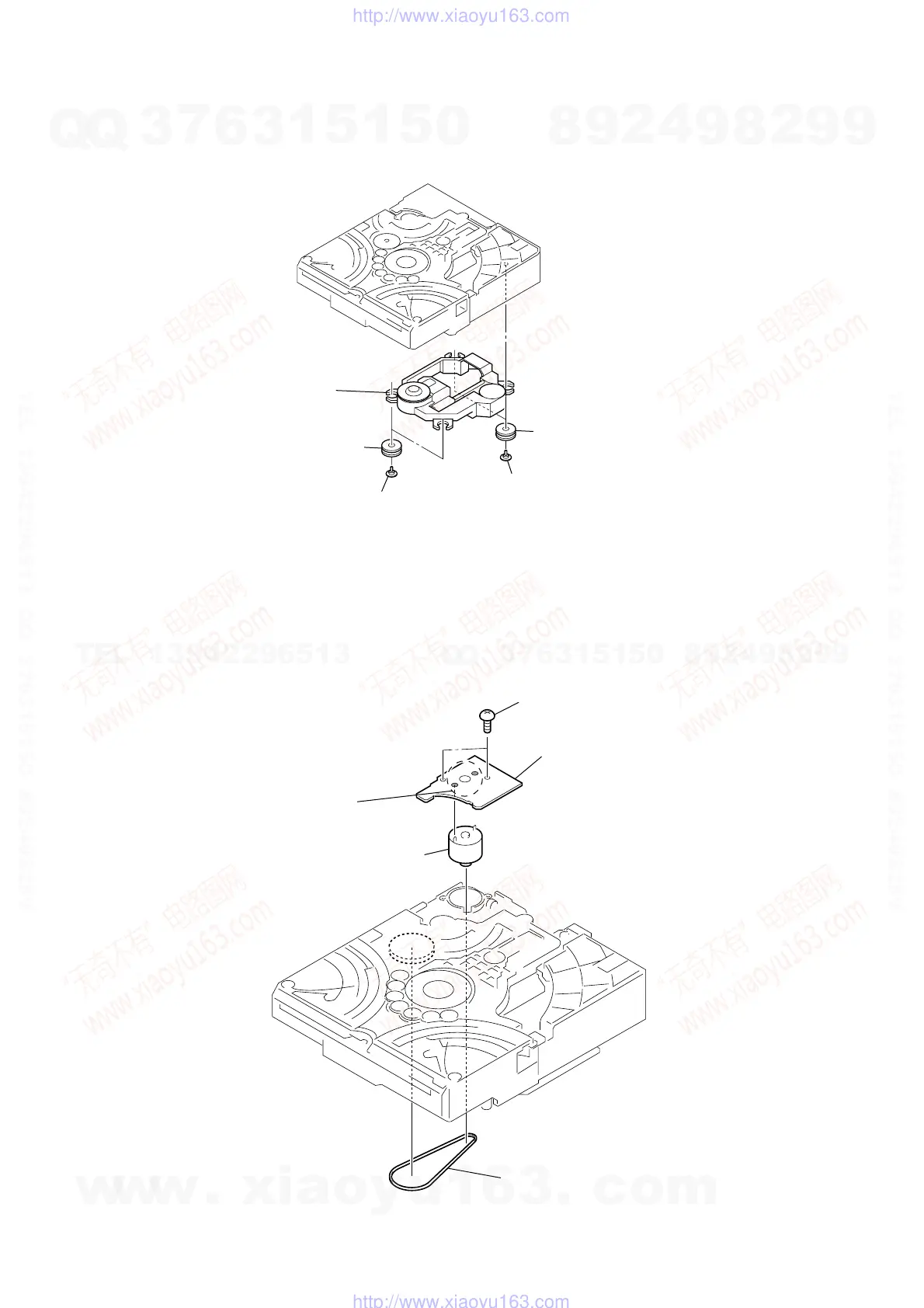

3-9. OPTICAL PICK-UP BLOCK (KHM-310CAB)
1 two insulator screws
2 two insulators
2 two insulators
3 optical pick-up block
(KHM-310CAB)
1 two insulator screw
s
3-10. MOTOR (PULLEY) ASSY (LOADING) (M001)
3 Remove two solders.
2 two screws
(B 2.6 × 8)
5 MS-214 board
4 motor (pully) assy (loading)
(M001)
1 belt (MOT)
