HCD-AZ2D/AZ5D
SECTION 8
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
• Abbreviation
AUS: Australian model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E12 : 220-240V AC area in E model
E13 : 220-230V AC area in E model (Russian model)
E15 : Iranian model
EA : Saudi Arabia model
KR : Korean model
MY : Malaysia model
PH : Philippines model
SP : Singapore model
TH : Thai model
Ref. No. Part No. Description Remark

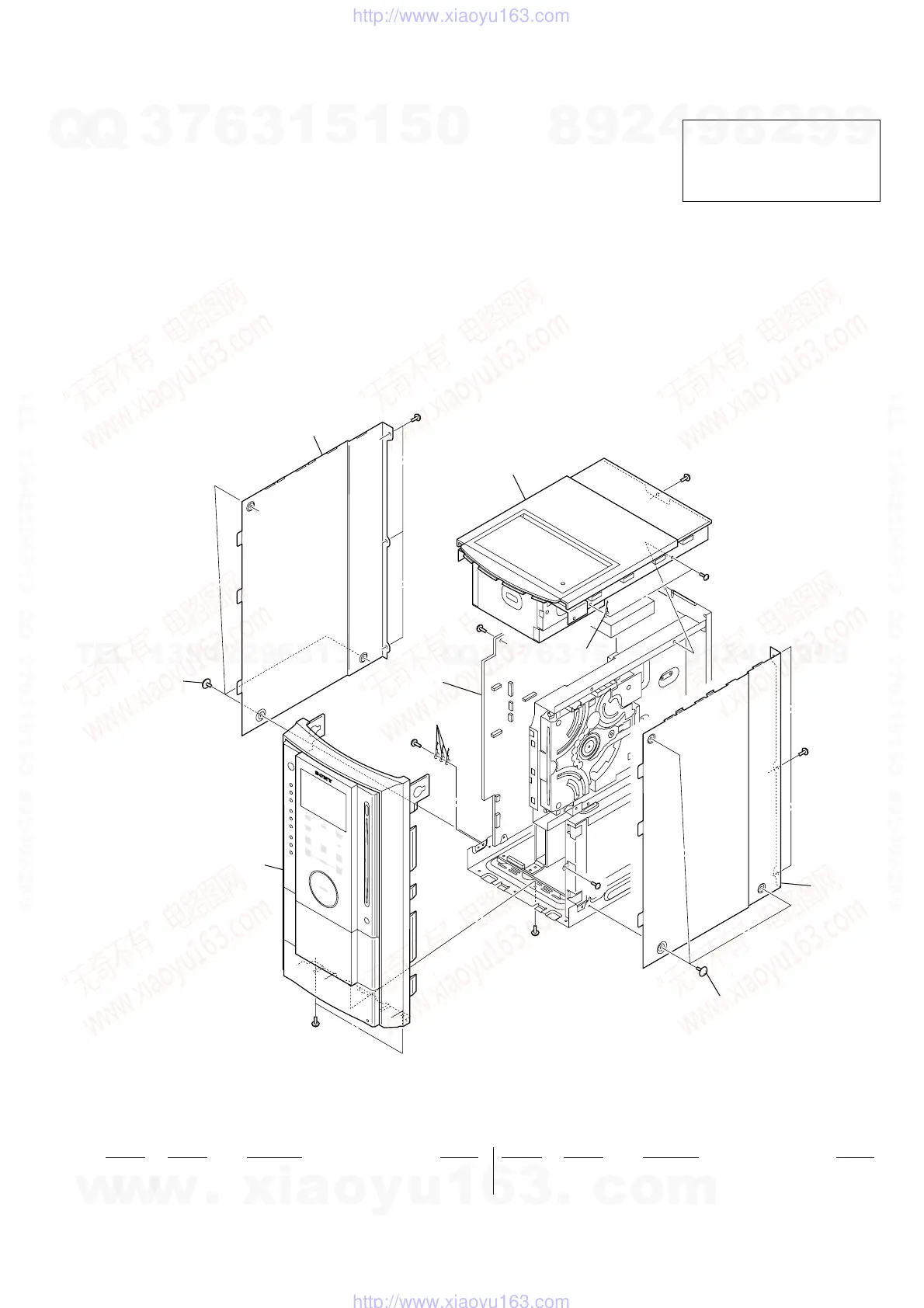

8-1. SIDE PANEL SECTION
1
2
3
3
front panel section
top panel (TC) section
MAIN board
section
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
1 2-349-682-01 PANEL (A), SIDE
2 2-349-683-01 PANEL (B), SIDE
Ref. No. Part No. Description Remark
3 4-227-843-31 SCREW (TP), FLAT HEAD
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
