Sony HCD-AZ2D - Page 59

5959
HCD-AZ2D/AZ5D
HCD-AZ2D/AZ5D

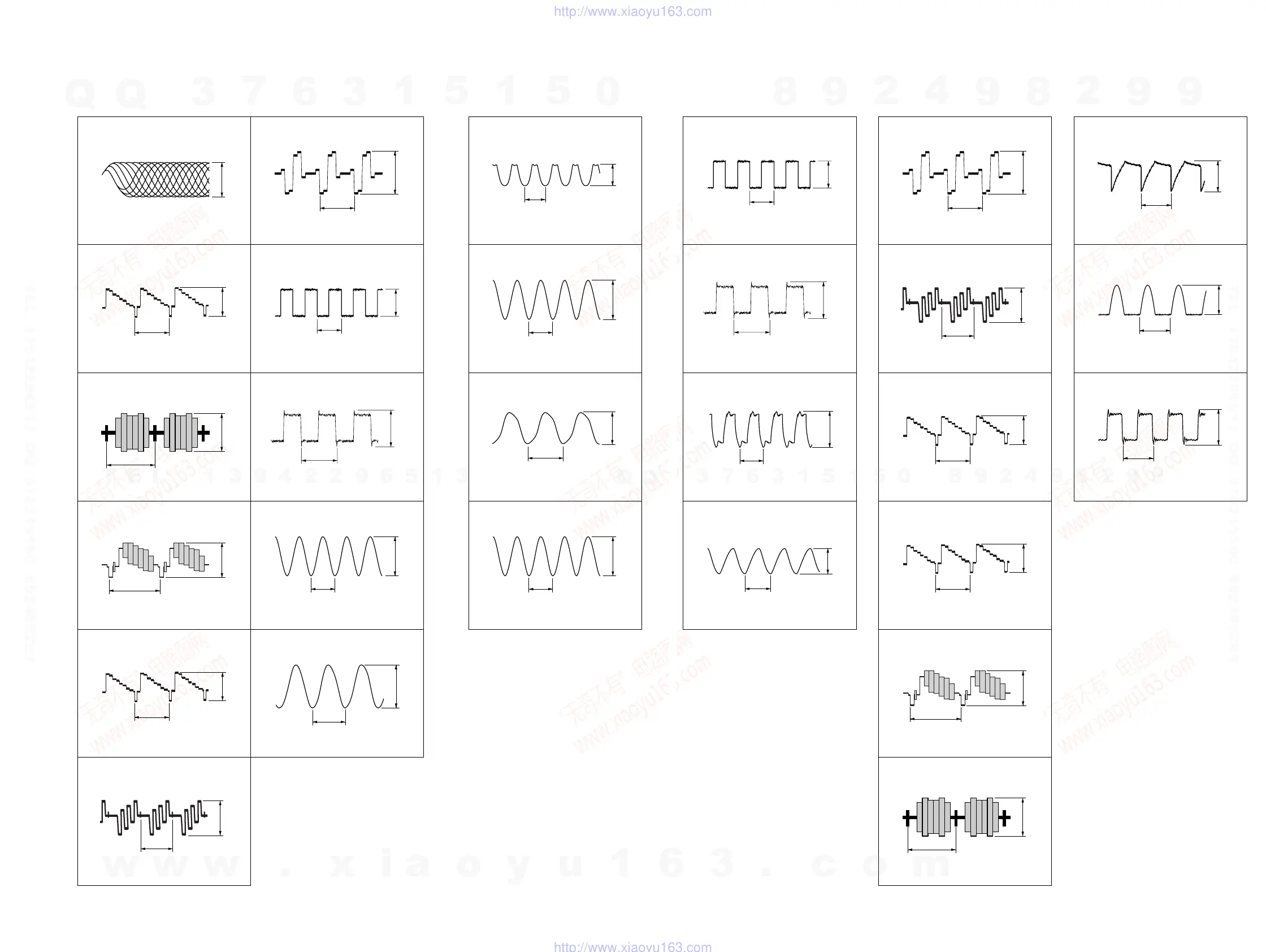

• Waveforms
– DMB10 Board – – MAIN Board –
1
IC102 6 (DVDRF IP)
(DVD play mode)
500 mV/DIV, 200 ns/DIV
1 Vp-p
7
IC102 <x/c (YUV6)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
0.9 Vp-p
20.8 µ s
4 Vp-p
8
IC102 <xzc (ALRCK)
2 V/DIV, 10 µs/DIV
9
IC102 <xzv (ABCK)
2 V/DIV, 100 ns/DIV
326 ns
4 Vp-p
2
IC102 <z.v (YUV1)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1.1 Vp-p
qa
IC102 <xx, (XTALO)
500 mV/DIV, 10 ns/DIV
37 ns
1.1 Vp-p
3
IC102 <z.n (YUV2)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1 Vp-p
4
IC102 <z., (YUV3)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1.3 Vp-p
5
IC102 <x// (YUV4)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1.1 Vp-p
6
IC102 <x/x (YUV5)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
0.9 Vp-p
q;
IC102 <xzb (ACLK)
2 V/DIV, 20 ns/DIV
40.6 ns
4 Vp-p
wa
Q318 (Base)
2 V/DIV, 5 µs/DIV
10.9 µ s
4.6 Vp-p
ws
Q318 (Collector)
5 V/DIV, 5 µs/DIV
10.9 µ s
15.8 Vp-p
wd
IC401 qa (XC-OUT)
1 V/DIV, 10 µs/DIV
30.5 µ s
2.1 Vp-p
wf
IC401 qd (X-OUT)
1 V/DIV, 100 ns/DIV
200 ns
3 Vp-p
– S-MASTER Board – – VIDEO Board – – FL Board –
20.8 µ s
3.6 Vp-p
ea
IC501 – 503 q; (LRCK)
2 V/DIV, 10 µs/DIV
es
IC501 – 503 qa (BCK)
2 V/DIV, 100 ns/DIV
326 ns
4.1 Vp-p
ed
IC514 5, 7
1 V/DIV, 50 ns/DIV
82 ns
3.8 Vp-p
ef
IC505, 506 qf (XFSOOUT),
IC515 4
1 V/DIV, 10 ns/DIV
20.4 ns
1.6 Vp-p
ra
IC1201 qh (CR OUT)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1.5 Vp-p
rs
IC1201 qk (CB OUT)
(DVD play mode)
500 mV/DIV, 20 µs/DIV
H
1.5 Vp-p
rd
IC1201 w; (CY OUT)
(DVD play mode)
1 V/DIV, 20 µs/DIV
H
2 Vp-p
rf
IC1201 wa (Y OUT)
(DVD play mode)
1 V/DIV, 20 µs/DIV
H
2 Vp-p
rg
IC1201 wd (CVBS OUT)
(DVD play mode)
1 V/DIV, 20 µs/DIV
H
2.5 Vp-p
rh
IC1201 wh (C OUT)
(DVD play mode)
1 V/DIV, 20 µs/DIV
H
1.8 Vp-p
ta
Q1005 (Base)
2 V/DIV, 5 µs/DIV
11.4 µ s
3.8 Vp-p
ts
Q1005 (Collector)
20 V/DIV, 5 µs/DIV
11.4 µ s
33.6 Vp-p
td
IC1001 tl (OSC1)
2 V/DIV, 200 ns/DIV
540 ns
3.7 Vp-p
