HCD-BX5/DX5/DX5J
3030

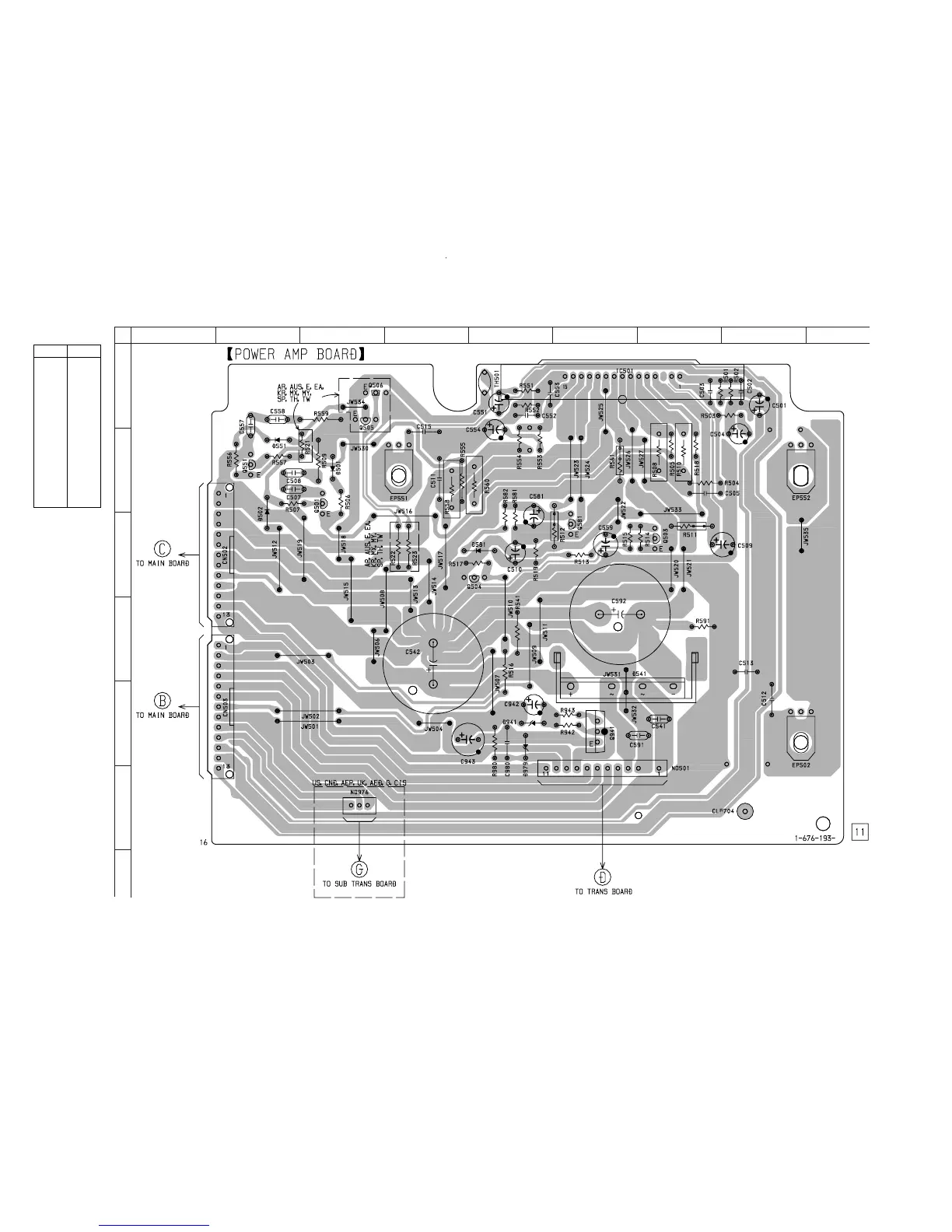

7-9. PRINTED WIRING BOARD POWER AMP SECTION
• See page page 21 for Circuit Boards Location.
Ref. No. Location
D501 B-3
D502 C-2
D541 D-6
D551 B-2
D581 C-5
D941 E-5
D979 E-5
IC501 A-6
Q501 B-3
Q503 B-7
Q504 C-5
Q505 A-3
Q506 A-3
Q551 B-2
Q581 C-6
Q941 E-6
• Semiconductor
Location
(Page 38)
(Page 38)
12
A
B
C
D
E
F
G
3456789
(Page 26)
(Page 26)
