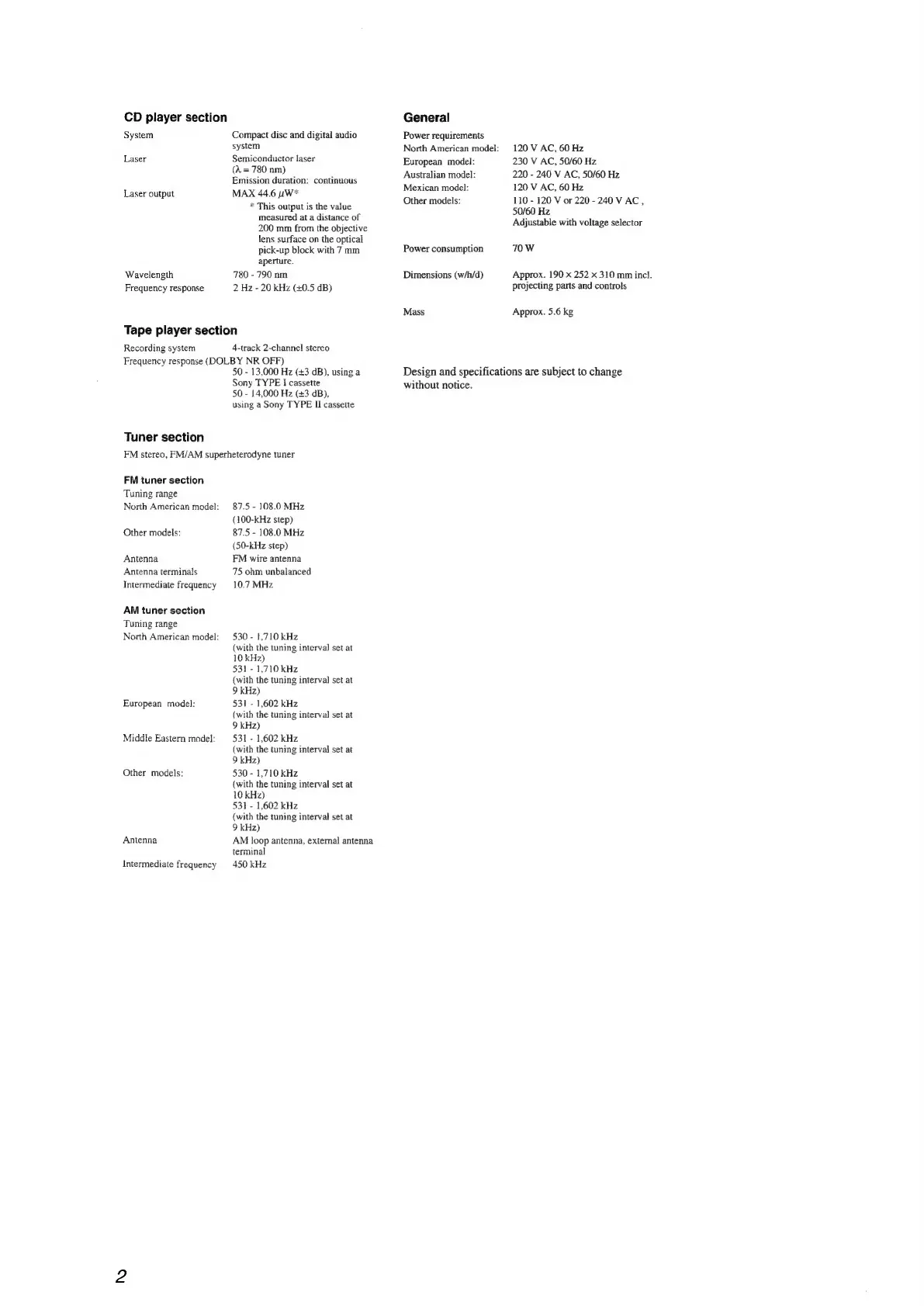

Sony HCD-CP11 - Page 2

CD player section
System Compact disc and digital audio
system
Laser Semiconductor laser
(A = 780 nm)
Emission duration: continuous
Laser output MAX 44.6 pW*
General
Power requirements
North American model:
European model:
Australian model:
Mexican model:
120 V AC, 60 Hz
230 V AC, 50/60 Hz
220 - 240 V AC, 50/60 Hz
120 V AC, 60 Hz
Wavelength
Frequency response
* This output is the value
measured at a distance of
200 mm from the objective
lens surface on the optical
pick-up block with 7 mm
aperture.
780 - 790 nm
2 Hz - 20 kHz (+0.5 dB)
Tape player section
Recording system
4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
Tuner section
50 - 13,000 Hz (+3 dB), using a
Sony TYPE I cassette
50 - 14,000 Hz (+3 dB),
using a Sony TYPE II cassette
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
North American model:
Other models:
Antenna
Antenna terminals
Intermediate frequency
AM tuner section
Tuning range
North American model:
European model:
Middle Eastern model:
Other models:
Antenna
Intermediate frequency
87.5 - 108.0 MHz
(100-kHz step)
87.5 - 108.0 MHz
(50-kHz step)
FM wire antenna
75 ohm unbalanced
10.7 MHz
530 - 1,710 kHz
(with the tuning interval set at
10 kHz)
531 - 1,710 kHz
(with the tuning interval set at
9 kHz)
531 - 1,602 kHz
(with the tuning interval set at
9 kHz)
531 - 1,602 kHz
(with the tuning interval set at
9 kHz)
530 - 1,710 kHz
(with the tuning interval set at
10 kHz)
531 - 1,602 kHz
(with the tuning interval set at
9 kHz)
AM loop antenna, external antenna
terminal
450 kHz
Other models: 110 - 120 V or 220 - 240 V AC,
50/60 Hz
Adjustable with voltage selector
Power consumption TOW
Approx. 190 x 252 x 310 mm incl.
projecting parts and controls
Dimensions (w/h/d)
Mass Approx. 5.6 kg
Design and specifications are subject to change
without notice.
