Sony HCD-CP11 - 7 Exploded Views

NOTE:

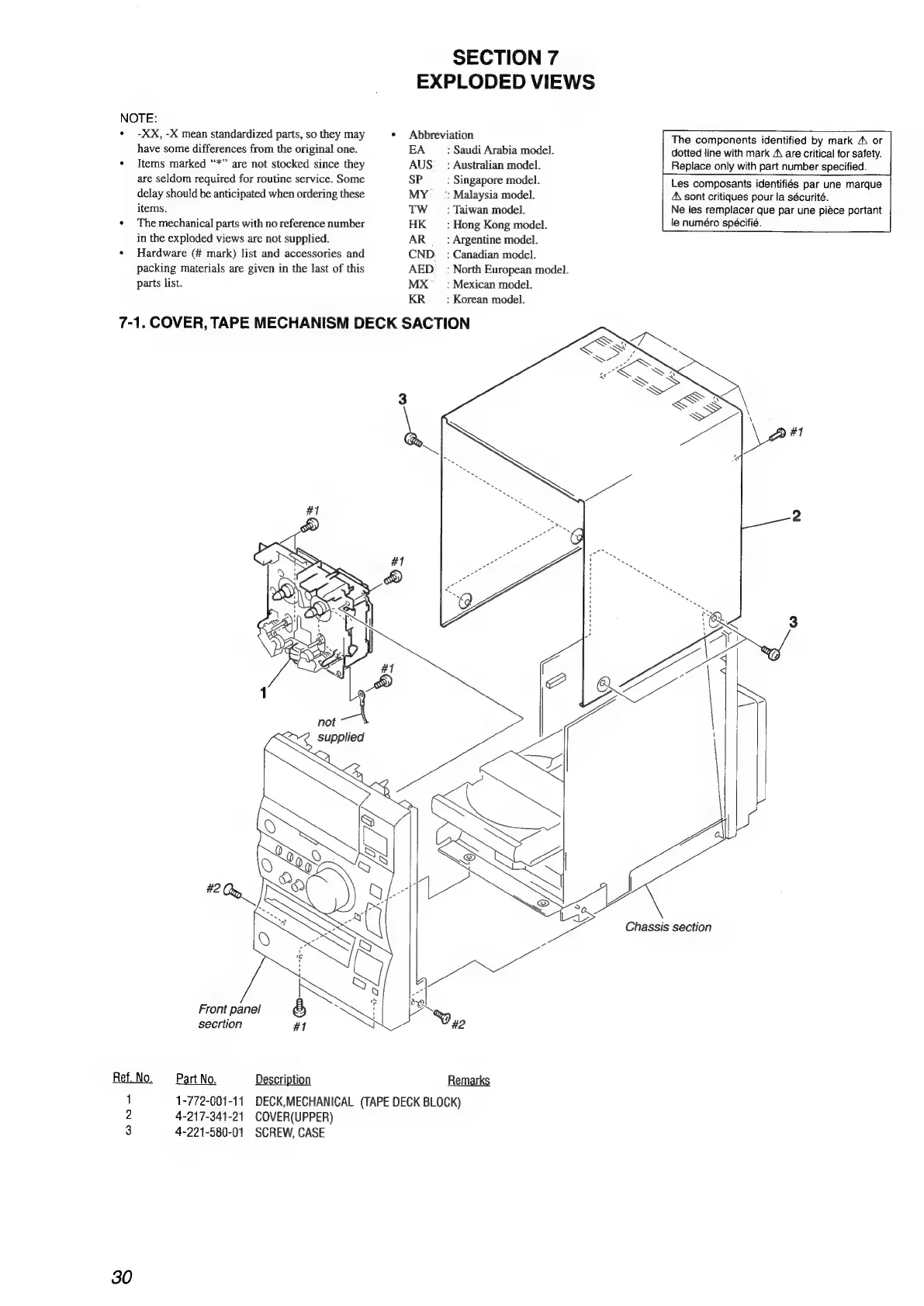

7-1. COVER, TAPE MECHANISM DECK SACTION
-XX, -X mean standardized parts, so they may
have some differences from the original one.
Items marked ‘“*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The mechanical parts with no reference number
in the exploded views are not supplied.
Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Front panel & ~
SECTION 7
EXPLODED VIEWS
Abbreviation
EA : Saudi Arabia model.
AUS _ : Australian model.
SP : Singapore model.
MY _ : Malaysia model.
TW — : Taiwan model.
HK _ : Hong Kong model.
AR _ : Argentine model.
CND _ : Canadian model.
AED _ : North European model.
MX _ : Mexican model.
KR _ : Korean model.
Chassis section
secrtion #1
Ref.No, Part No. Description Remarks
1 1-772-001-11 DECK,MECHANICAL (TAPE DECK BLOCK)
2 4-217-341-21 COVER(UPPER)
3 4-221-580-01 SCREW, CASE
30
The components identified by mark A\ or
dotted line with mark A\ are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
A\ sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant
le numéro spécifié.
