Sony HCD-CP11 - Page 32

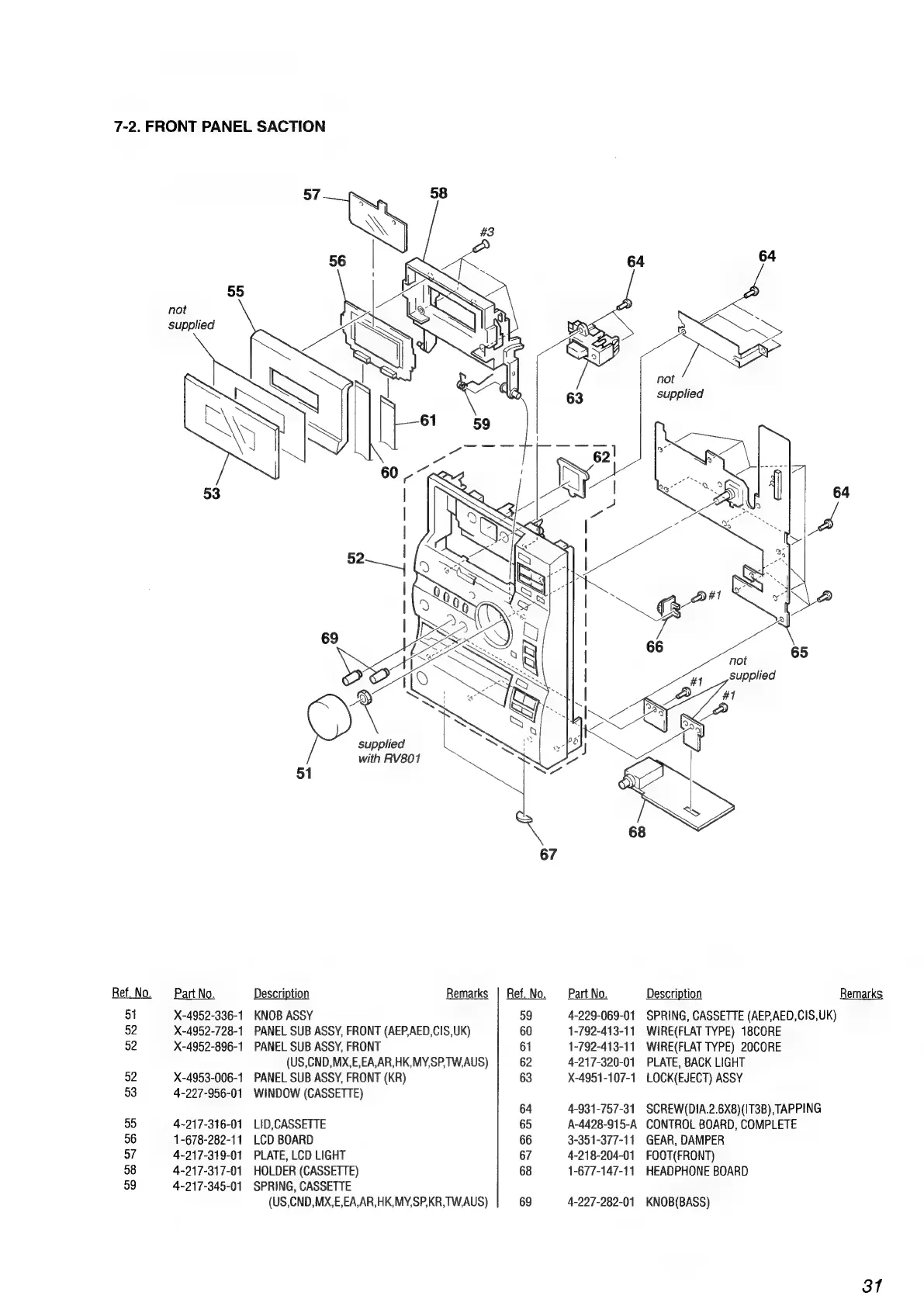

7-2. FRONT PANEL SACTION
Ref. No.
51
52
52
not
supplied
53
Part No.
X-4952-336-1
X-4952-728-1
X-4952-896-1
X-4953-006-1
4-227-956-01
4-217-316-01
1-678-282-1141
4-217-319-01
4-217-317-01
4-217-345-01
57
supplied
a
with RV801
NZ
Ss
68
67
Description Remarks | Ref. No. Part No. Description Remarks
KNOB ASSY 59 4-229-069-01 SPRING, CASSETTE (AEP,AED,CIS,UK)
PANEL SUB ASSY, FRONT (AEP,AED,CIS,UK) 60 1-792-413-11 WIRE(FLAT TYPE) 18CORE
PANEL SUB ASSY, FRONT 61 1-792-413-11 WIRE(FLAT TYPE) 20CORE
(US,CND,MX,E,EA,AR,HK,MY,SP, TW,AUS) 62 4-217-320-01 PLATE, BACK LIGHT
PANEL SUB ASSY, FRONT (KR) 63 X-4951-107-1 LOCK(EJECT) ASSY
WINDOW (CASSETTE)
64 4-931-757-31 SCREW(DIA.2.6X8)(IT3B), TAPPING
LID,CASSETTE 65 A-4428-915-A CONTROL BOARD, COMPLETE
LCD BOARD 66 3-351-377-11 GEAR, DAMPER
PLATE, LCD LIGHT 67 4-218-204-01 FOOT(FRONT)
HOLDER (CASSETTE) 68 1-677-147-11 HEADPHONE BOARD
SPRING, CASSETTE
(US,CND,MX,E,EA,AR,HK,MY,SP,KR,TW,AUS) 69 4-227-282-01 KNOB(BASS)
3f
