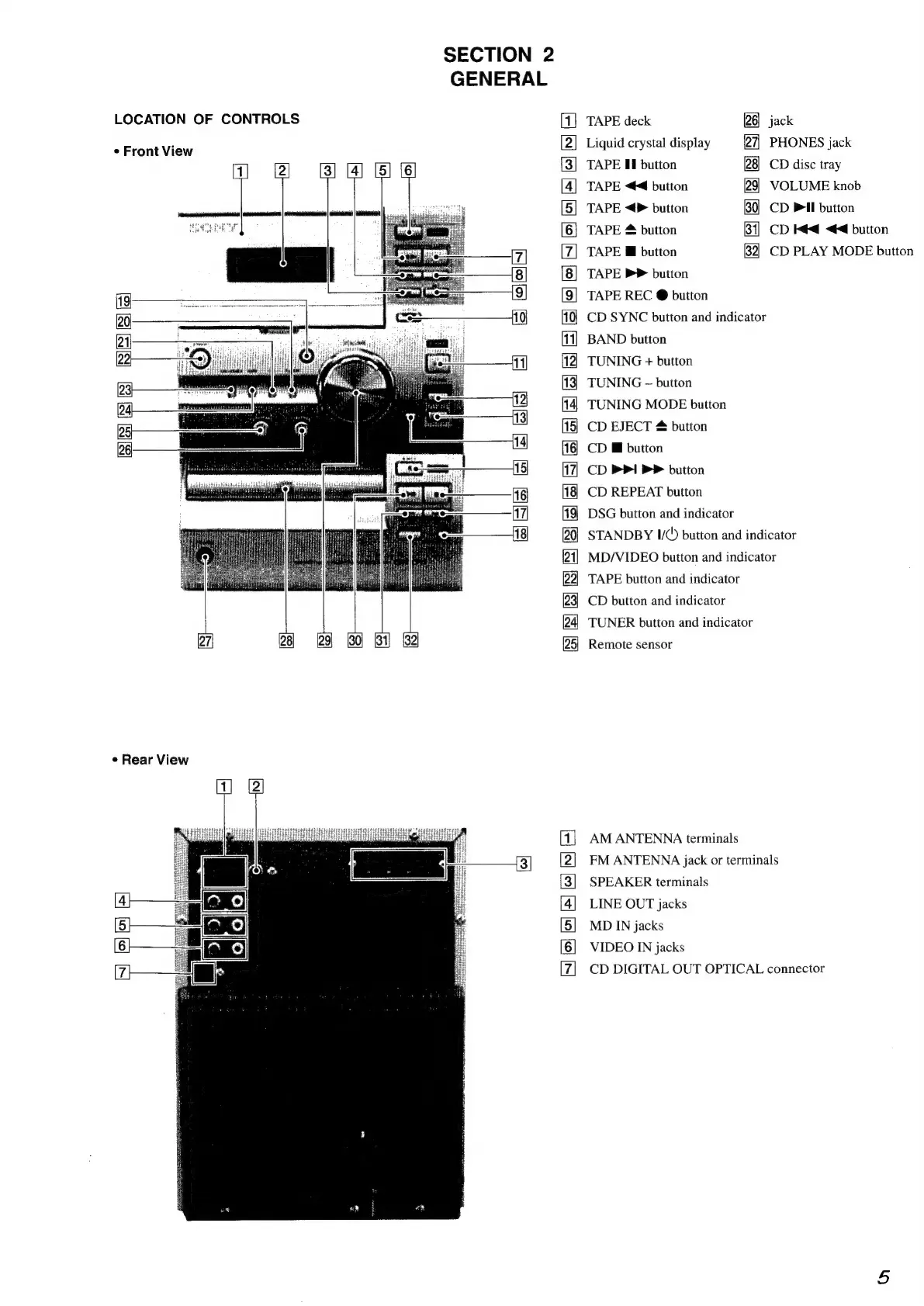

SECTION 2
GENERAL
LOCATION OF CONTROLS
* Front View
ICRC CINE ECOPOSNES
— Q
—_ —_
= in)
[es]
—_ >
=a) = 3] [el
|
—=_ ~I
—_ fo}
28 29 Bo BT
¢ Rear View
o>] [on] [a
~)
SRESES&
IN] {o>} [oy] [B] [o9] [ro] []
TAPE deck 26] jack
Liquid crystal display 27] PHONES jack
TAPE Hf button 28) CD disc tray
TAPE << button 29) VOLUME knob
TAPE <> button 30} CD Pll button
TAPE & button 31] CD Kid <4 button
TAPE Mf button 32} CD PLAY MODE button
TAPE button
TAPE REC @ button
CD SYNC button and indicator
BAND button
TUNING + button
TUNING ~ button
TUNING MODE button
CD EJECT & button
CD @ button
CD Pi &P button
CD REPEAT button
DSG button and indicator
STANDBY I/C) button and indicator
MD/VIDEO button and indicator
TAPE button and indicator
CD button and indicator
TUNER button and indicator
Remote sensor
AM ANTENNA terminals
FM ANTENNA jack or terminals
SPEAKER terminals
LINE OUT jacks
MD IN jacks
VIDEO IN jacks
CD DIGITAL OUT OPTICAL connector
