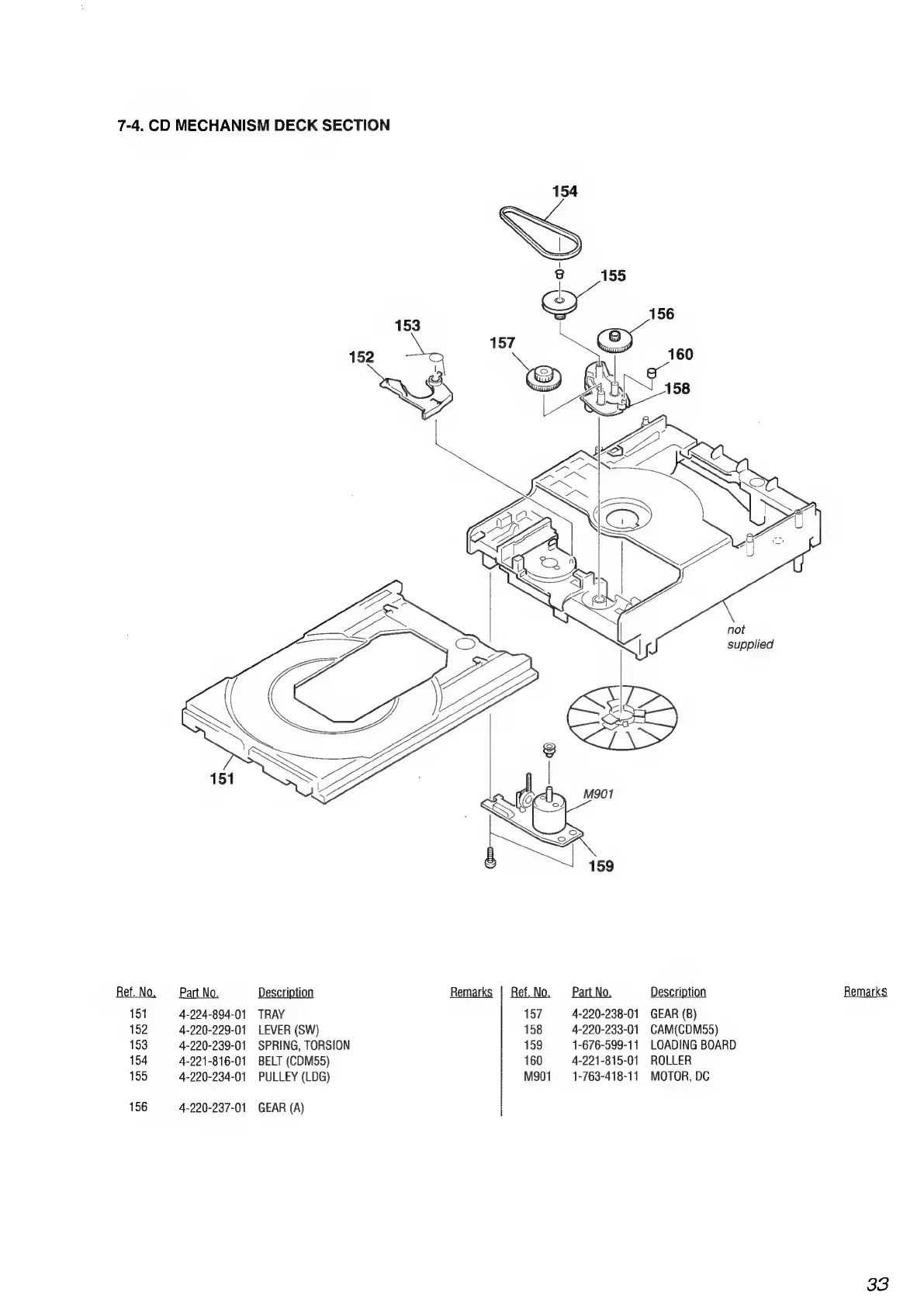

7-4, CD MECHANISM DECK SECTION
153
152
Ref. No. Part No. Description Remarks
151 4-224-894-01 TRAY
152 4-220-229-01 LEVER (SW)
153 4-220-239-01 SPRING, TORSION
154 4-221-816-01 BELT (CDM55)
155 4-220-234-01 PULLEY (LDG)
156 4-220-237-01 GEAR (A)
Ref. No.
157
158
159
160
M901
Part No.
4-220-238-01
4-220-233-01
1-676-599-11
4-221-815-01
1-763-418-11
not
supplied
Description Remarks
GEAR (B)
CAM(CDMS55)
LOADING BOARD
ROLLER
MOTOR, DC
